Specifications
Model Number :
Universal
MOQ :
1 PCS
Delivery Time :
3-7days
Payment Terms :
L/C,T/T
Rated Load :
10KN
Place of Origin :
Ningbo
Packaging Details :
Plywood Case
Price :
Negotiable
Weight :
4.3KG
Supply Ability :
500 PCS/Month
Name :
Universal Stringing Block
Diameter :
178x76mm
Certification :
ISO
Brand Name :
Suntech
Description

178x76mm Universal Conductor Stringing Block – 10KN Stringing Pulley for Power Line Construction


Product Overview

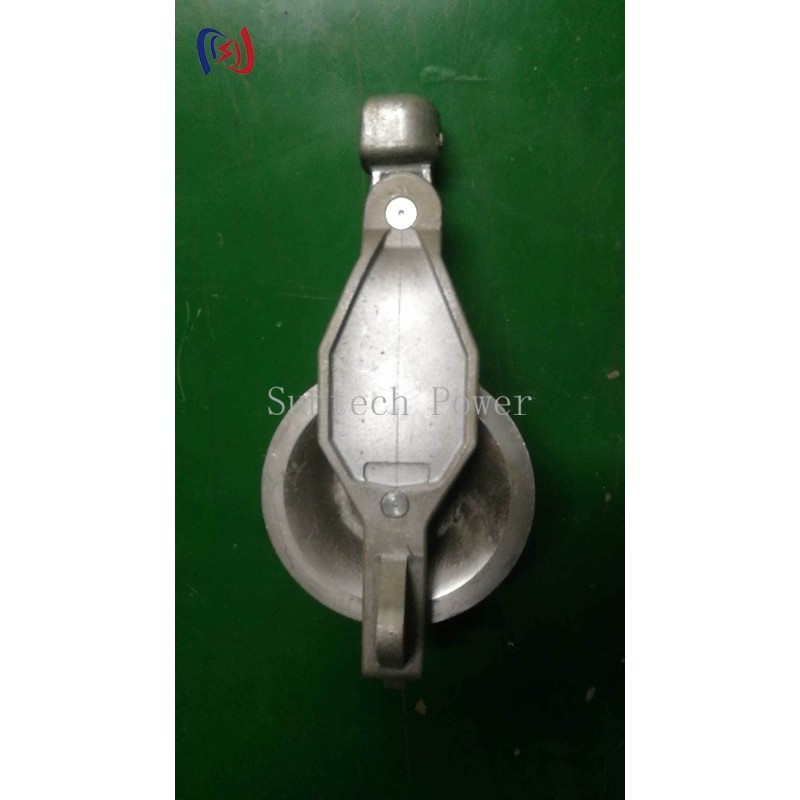

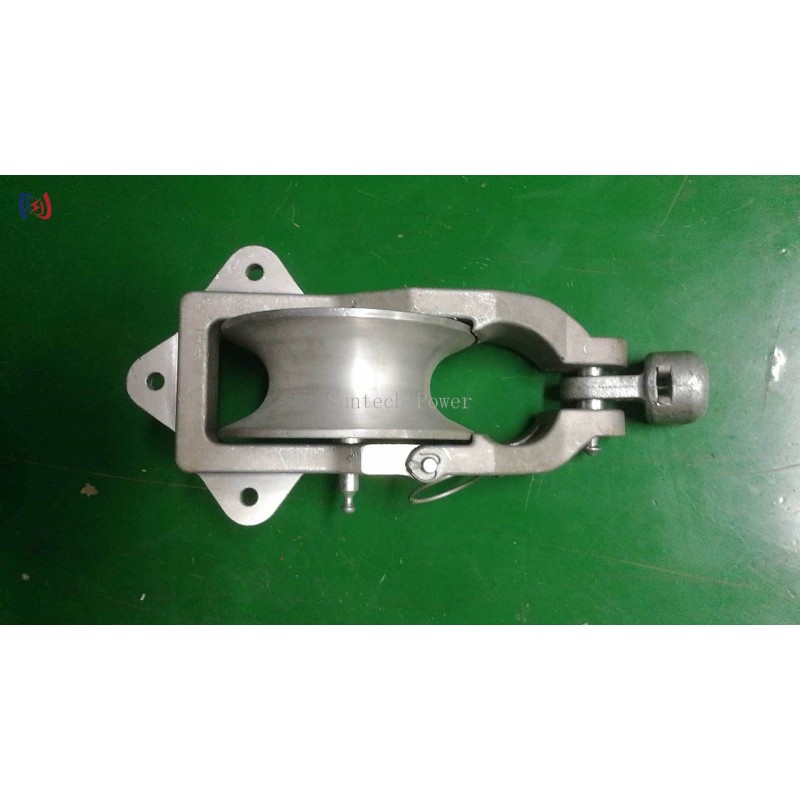

The 178x76mm Universal Stringing Block is a versatile conductor stringing tool for electric power construction. It can be used either at the head of an insulator string or fixed on the caliper of a crossarm, making it one of the most adaptable stringing blocks in overhead line construction. With a rated load of 10KN and weight of only 4.3kg, it provides an excellent balance of capacity and portability. The caliper accommodates crossarm widths from 99-175mm.


Technical Specifications

Item No.

Model

Rated Load(KN)

Weight(kg)

Crossarm Width(mm)

Height(mm)

Caliper Wt(kg)

10295

178x76

10

4.3

99-175

95-159

1.6


Product Advantages

· Dual-Purpose Design — Can be used at the head of insulator strings or fixed on crossarm calipers for maximum versatility.

· Lightweight Construction — At only 4.3kg (block) + 1.6kg (caliper), easily handled by a single worker at height.

· Adjustable Caliper — Fits crossarm widths from 99-175mm, compatible with various tower configurations.

· 10KN Rated Capacity — Suitable for medium-duty conductor stringing in distribution and transmission networks.


Frequently Asked Questions (FAQ)

Q: What is this block's main advantage?

A: Its versatility — it can be mounted on insulator string heads or crossarm calipers.

Q: What is the weight?

A: The block weighs 4.3kg, plus 1.6kg for the caliper assembly.

Q: What crossarm widths does it fit?

A: Adjustable for 99-175mm crossarm widths.

Q: What is the rated load?

A: 10KN, suitable for medium-duty overhead line stringing.
