Specifications
Payment Terms :
L/C,T/T
Model :
SLX
Supply Ability :
500 PCS/Month
Name :
Swivel Joint
Model Number :
SLX
Price :
Negotiable
Rated Load :
5-250KN
Dia :
8-30mm
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Brand Name :
Suntech
Certification :
ISO9001
Place of Origin :
Ningbo
Description

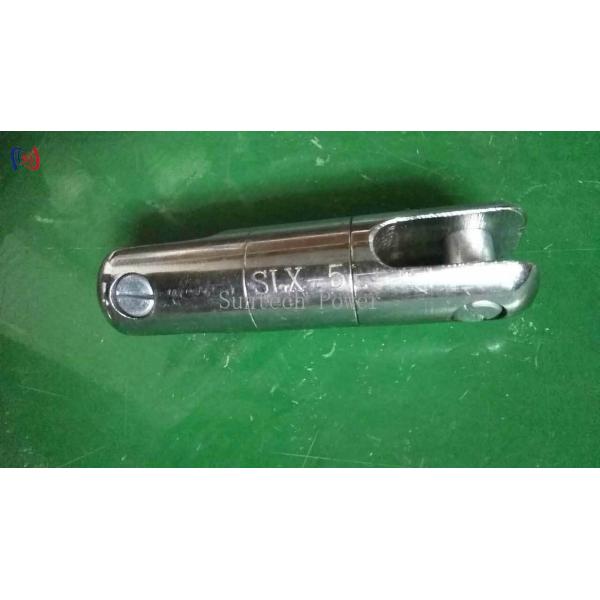

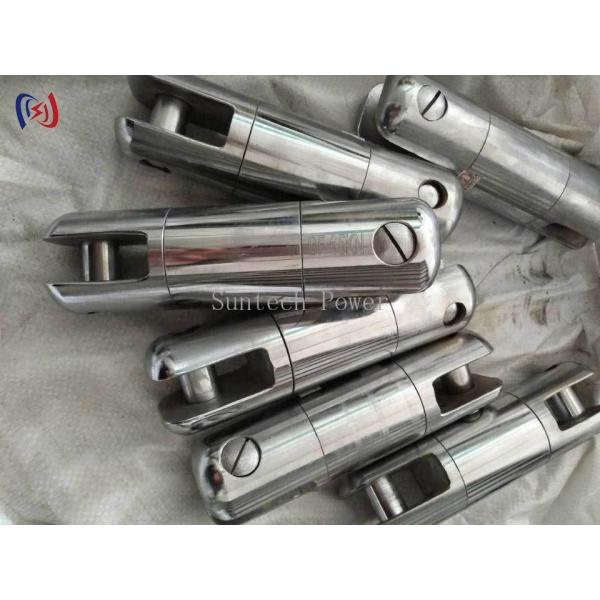

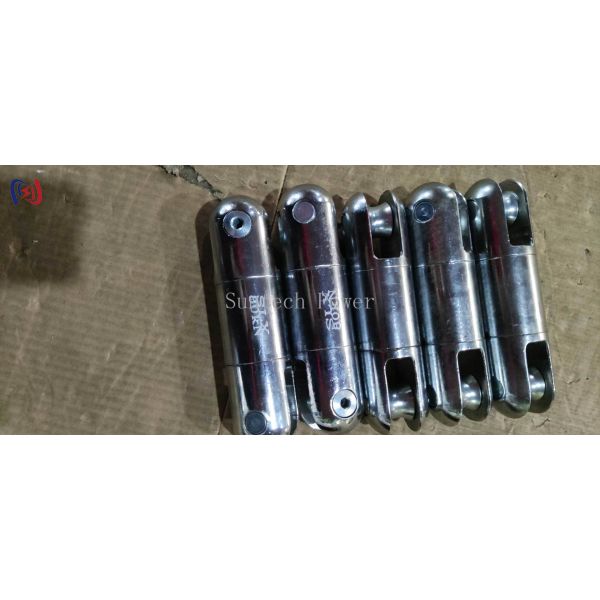

Swivel Connector for Overhead Stringing Rated 5KN to 250KN Loads


Product Overview

Whenever a pulling team has to run a cable around a corner or feed it into a duct, the load line needs a point that can turn freely. The SLX swivel provides exactly that: the body rotates a full 360 degrees so conductors follow the route without building up twist, while the forged steel housing and heavy duty bearings carry working loads from 5KN to 250KN. A locking feature blocks accidental separation, and rounded contact surfaces keep the cable jacket unharmed, making it a standard piece of gear for overhead stringing, underground pulls and substation hook-ups.

Technical Specifications

Item No.

Model

Rated Load (KN)

Main Size (mm)

Weight (kg)

17121

SLX-0.5

5

8

0.20

17122

SLX-1

10

12

0.40

17123

SLX-2

20

14

0.55

17124

SLX-3

30

16

0.65

17125

SLX-5

50

18

1.50

17126

SLX-8

80

24

2.40

17127

SL130

130

26

3.50

17128

SL180

180

26

7.20

17129

SL250

250

30

10.5

17130

SL250V

250

30

8.0

Applications

· Stringing overhead conductors and maintenance pulls

· Pulling cables through ducts and trenches

· Connecting equipment inside substation yards

· Changing cable direction at bends without twist

Product Advantages

· Full 360 Degree Rotation — the joint turns freely to follow route bends, releasing twist and keeping the conductor aligned during the entire pull.

· Forged Housing with Heavy Bearings — a solid forged steel body and reinforced bearing set handle loads up to 250KN without distortion.

· Radiused Cable Contact — rounded profiles prevent sheath scuffing and protect the conductor surface throughout the pull.

· Locking and Low Maintenance — a positive lock stops accidental release, high visibility marks ease inspection, and self-lubricating bearings give a long working life.
