Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Precision Machined Forged Alloy Steel Tower Connection Fittings with Hot Dip Galvanized Finish
Specifications
Payment Terms :
L/C,T/T
Model :
SLU
Supply Ability :
500 PCS/Month
Name :
Fixed Joints
Model Number :
SLU
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
10-250KN
Diameter :
10-32mm
Packaging Details :
Plywood Case
Brand Name :
Suntech
Certification :
ISO9001
Place of Origin :
Ningbo
Description

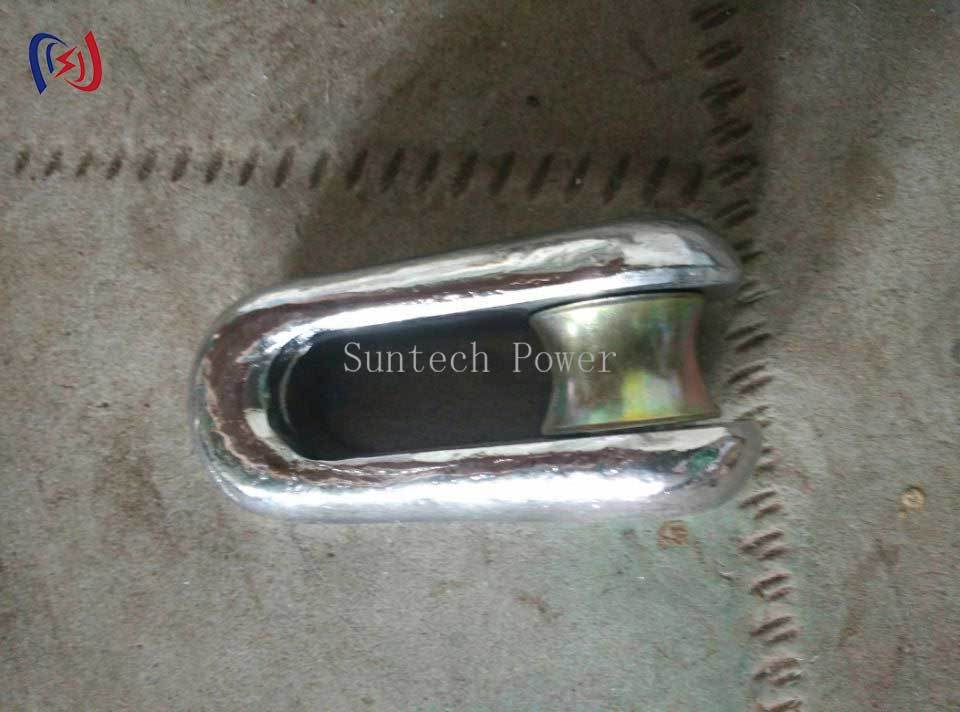

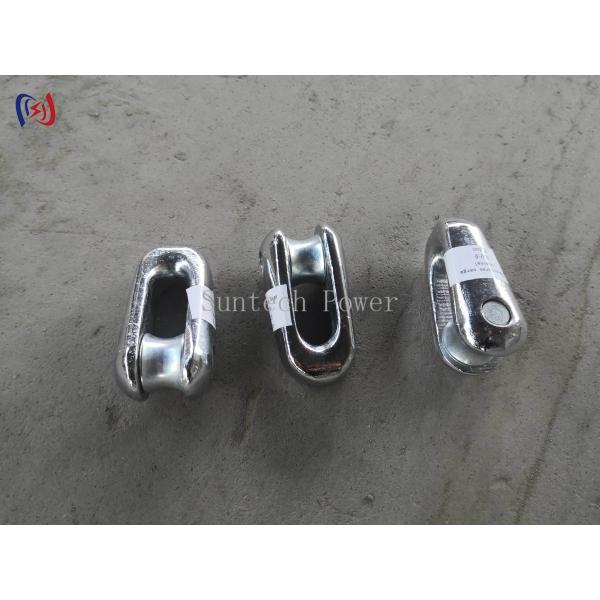

Alloy Steel Tower Connection Fittings with Precision Machined Faces


Product Overview

On a transmission tower every structural connection carries a share of the line tension, so the SLU range is engineered to hold that load without play. These U-shaped couplings cover working ratings from 10KN up to 320KN and are used to splice tower members, fix crossarms and hang insulator strings. Forged alloy steel with machined contact faces spreads the force evenly across the joint, and a hot dip galvanized finish keeps the hardware sound for decades of tower-top duty.

Technical Specifications

Model

A (mm)

B (mm)

C (mm)

d (mm)

D (mm)

E (mm)

Rated Load (KN)

Weight (kg)

SLU-1

36

68

18

10

14

29

10

0.2

SLU-3

37

76

20

12

17

31

30

0.22

SLU-5

50

96

23

18

19

42

50

0.6

SLU-8

56

110

28

20

22

50

80

0.8

SLU-10

59

126

30

22

26

54

100

1.2

SLU-13

61

134

32

24

27

56

130

1.3

SLU-15

63

138

37

27

28

58

150

1.4

SLU-25

80

178

44

30

35

72

250

3.0

Applications

· Splicing main members of lattice towers

· Fixing crossarms in position

· Hanging insulator strings on towers

· Temporary bracing during tower erection

Product Advantages

· Precision Machined Bearing Faces — every contact surface is machined to mate closely, spreading working load evenly and keeping the joint sound from 10KN to 320KN.

· Reinforced Forging Zones — high stress areas get extra material during forging, giving dependable life in permanent line connections.

· Two-Layer Corrosion Defence — hot dip galvanizing plus a weather top coat protects the steel against decades of rain, sun and salt.

· Locking Security with Fast Fit-Up — optional fail-safe locks stop loosening, while pre-drilled holes and locating slots speed up field assembly; non-conductive versions are available.
