Specifications
Payment Terms :
L/C,T/T
Model :
SIL
Supply Ability :
500 PCS/Month
Name :
Simple Reel Stand
Model Number :
SIL
Range :
450-1300mm
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
10-50KN
Certification :
ISO9001
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

Stable Drum Cradle Avoiding Tension Surges During Unwinding


Product Overview

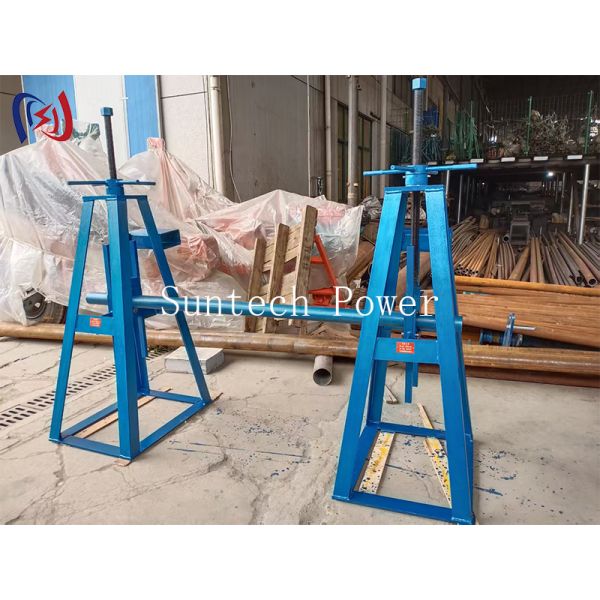

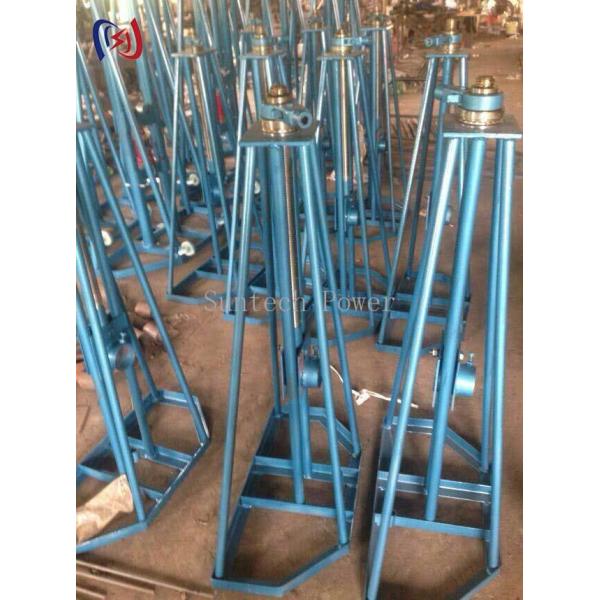

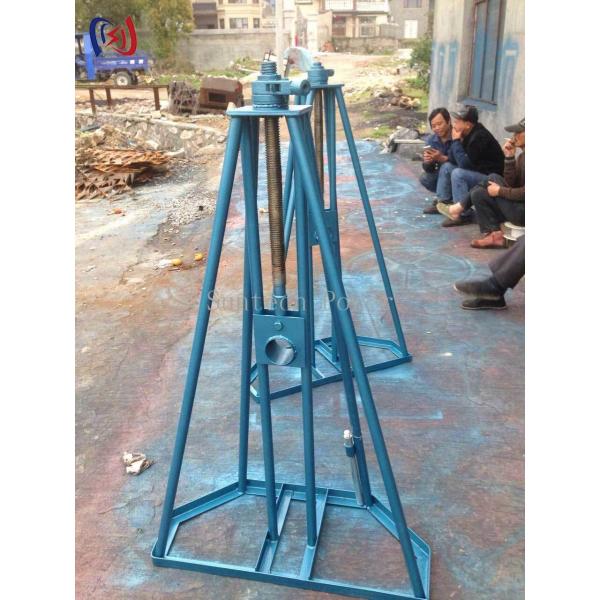

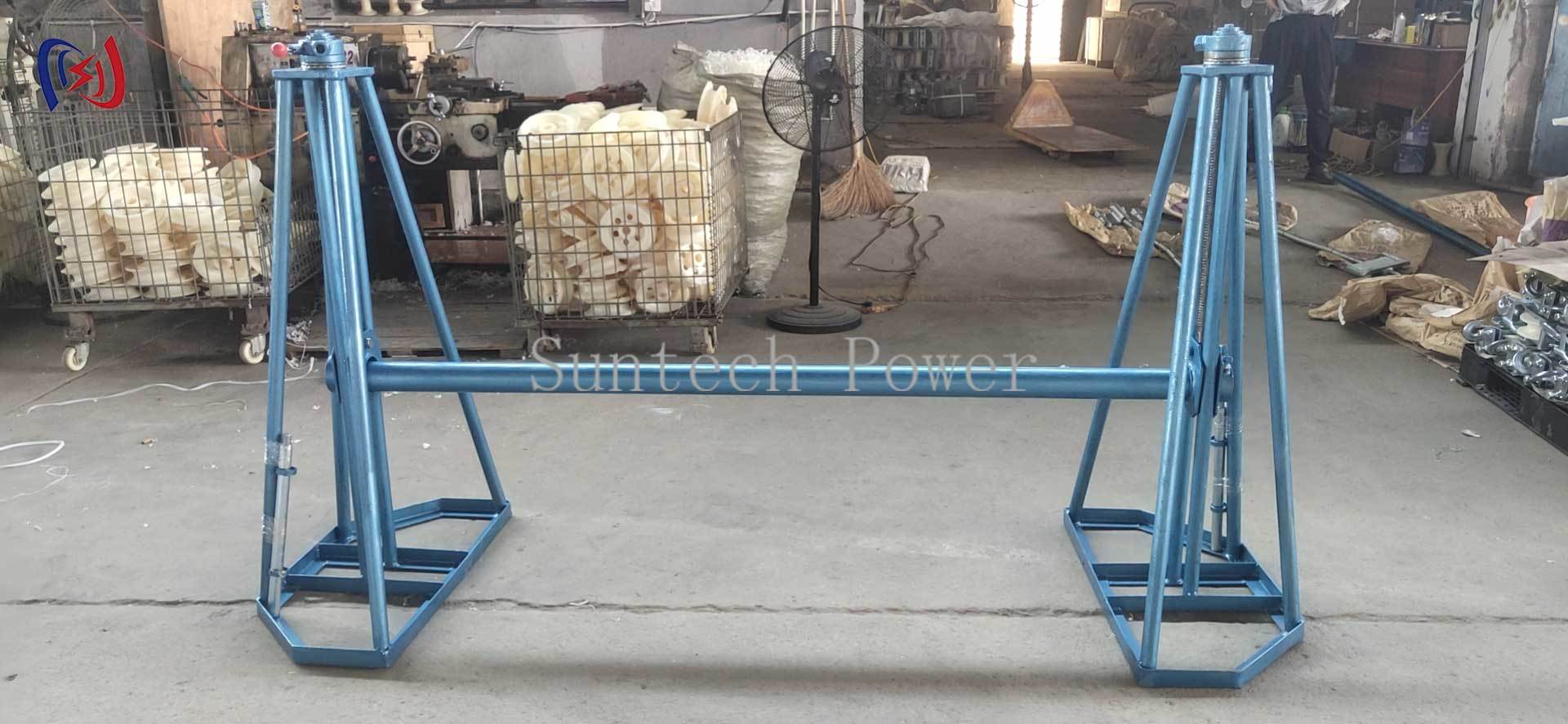

Before the first meter of cable leaves a drum, the drum itself has to be tamed: on uneven ground a heavy spool can tip over, break loose and roll across the site, or feed line in rough surges that scar the conductor surface. The SIL/SIK stand plants the spool on a steel rack with a free-turning shaft; line then leaves the drum smoothly and evenly, with no kinks or snags. Users can raise or lower the rack from 450mm up to 1300mm to fit spool width and working height. The all-steel frame refuses to bend under rated load, and because the legs fold and assembly needs no tools, the stand can be packed up and shifted to the next site in minutes.

Technical Specifications

Item No.

Model

Rated Load (KN)

Height Adjustment (mm)

Weight (kg)

15191

SIL-1

10

450-650

22

15192

SIL-3

30

600-900

24

15193

SIL-5

50

900-1300

27

15201

SIK-3

30

600-900

30

15202

SIK-5

50

900-1300

44

15211

SIL-3A

30

600-900

28

15212

SIL-5A

50

900-1300

35

Applications

· Unwinding cable and conductor for installation work

· Stringing conductors on transmission line projects

· Factory wiring and everyday cable handling duties

· Laying telecommunication cables

Product Advantages

· Drum Held Fast — a stiff frame and solid axle give the spool a stable seat, so it cannot tip, slide or run loose while unwinding.

· Even, Gentle Feed — the raised free-turning shaft irons out tension swings and stops the abrupt starts that injure conductors.

· Less Strain, More Safety — steady feeding stops drums from breaking loose and cuts the physical effort needed to shift heavy spools.

· Pack Up and Go — fold-flat legs and no-tool erection keep relocation quick, and upkeep stays minimal.
