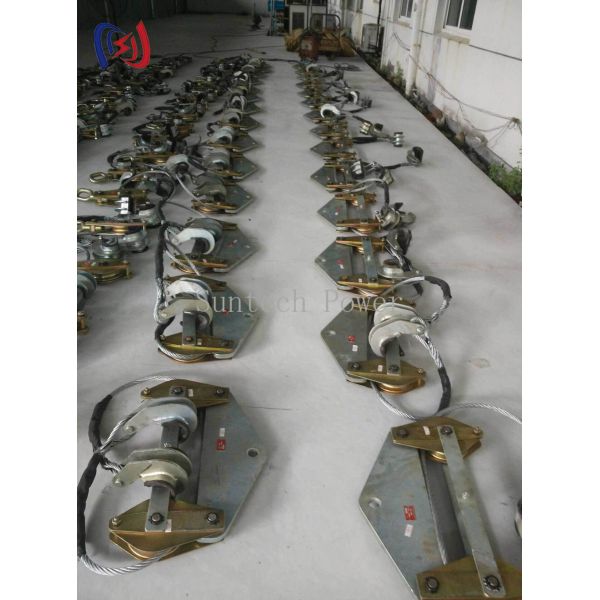

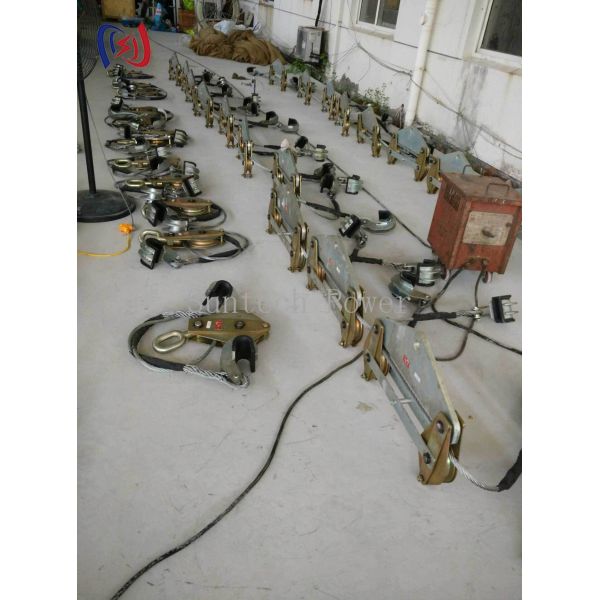

Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Quick-Adjust Multiple Fission Conductor Lifter with 120-250mm Hook Slots and 2x12-8x40KN Rated Load
Specifications
Payment Terms :
L/C,T/T
Model :
ST
Supply Ability :
500 PCS/Month
Name :
Multiple Fission Conductor Lifter
Model Number :
ST
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
2x12-8x40KN
Hook slot length :
60-160mm
Packaging Details :
Plywood Case
Brand Name :
Suntech
Certification :
ISO9001
Place of Origin :
Ningbo
Description

Quick-Adjust Multi-Split Lifter with 120-250mm Hook Slots


Product Overview

Two lines, four lines, eight lines - whatever the bundle, the lifting tool must match the group and keep each conductor where it belongs. The ST series meets that demand across its whole range: a spreader-type frame takes 2, 3, 4, 6 or 8 sub-conductors and maintains their separation all the way from ground to tower top. Load ratings step from 2x12kN to 8x40kN and hook slots measure 120-250mm across 13 models, so a suitable unit exists for every bundle size in the fleet. Gentle contact surfaces leave insulation undamaged, rated safety locks protect each lift, and the quick-adjust control enables one-handed operation.

Technical Specifications

Item No.

Model

Rated Load (KN)

Hook Slot Length (mm)

Weight (kg)

Note

19112

ST25-2

2x12

120

13

Two

19113

ST50-2

2x15

160

25

Two

19114

ST80-2

2x40

250

40

Two

19108

ST36-3

3x12

120

21

Three

19109

ST75-3

3x25

160

35

Three

19110

ST120-3

3x40

250

60

Three

19115

ST48-4

4x12

120

35

Four

19116

ST100-4

4x25

160

60

Four

19117

ST160-4

4x40

250

90

Four

19118A

ST150-6

6x25

160

70

Six

19118B

ST240-6

6x40

250

110

Six

19119A

ST200-8

8x25

160

120

Eight

19119B

ST320-8

5+6

250

160

Eight

Applications

· Lifting two to eight conductors in one operation

· Transmission line construction and maintenance

· Holding sub-conductor spacing during aerial work

· Installing or repairing heavy bundle configurations

Product Advantages

· All Lines in One Hook-Up — a single connection lifts 2 to 8 sub-conductors together; 13 models span 2x12kN to 8x40kN.

· High-Grade Alloy Build — strengthened lift points keep heavy bundles rigid during the climb, with no flex or sway.

· Coating Kept Intact — soft contact faces and smooth edges stop rubbing and protect the insulation while the bundle is in motion.

· Protected and Productive — load-rated locks and non-conductive arms come as standard, while the quick-adjust feature lets one hand finish the rigging.
