Cummins Engine Hydraulic Cable Puller Overhead Line Stringing Equipment
Cummins Engine Hydraulic Cable Puller Overhead Line Stringing Equipment
Cummins Engine Hydraulic Cable Puller Overhead Line Stringing Equipment
Cummins Engine Hydraulic Cable Puller Overhead Line Stringing Equipment
Specifications
Brand Name :
HANYU
Model Number :
TY90
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Hydraulic Puller With Cummins Engine
Max diameter of rope reel :
1400mm
Max intermittent pull :
90kN
Engine :
Cummins
Operating handle :
German Rexroth
Tail bracket hoisting motor :
American Eton
Description

Overhead Line Stringing Tools Hydraulic Puller With Cummins Engine

TY90 Hydraulic Puller
  • This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
  • besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.

This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Performance

Max intermittent pull: 90kN

Pull at max speed: 40kN

Max continuous pull: 80kN

Max speed: 5km/h

Speed at max pull: 2.5km/h

Characteristics

Groove number: 8

Bull-wheel diameter: 540mm

Max diameter of rope reel: 1400mm

Max rope diameter : 21mm

Total weight: 4680kg

Overall dimension (length*width*height): 4000×2200×2100mm

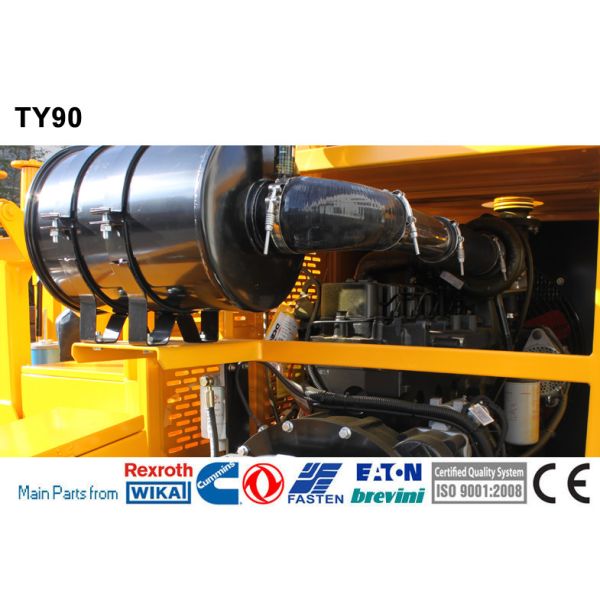

Engine

Diesel: 118kw(158hp)

Electrical system: 24V

Cooling system: water

Main configuration

Engine: Cummins

Operating handle: German Rexroth

Main motor: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic pump: German Rexroth

Hydraulic meter: German WIKA

Speed reducer: German Rexroth / Italy Bonfiglioli

Additional Devices

Extra shaft

Hydraulic rope clamp for reel change

Lighting system for the trailer

Trailer for towing at max speed of 15 km/h

Digital speed and meter counter (extra charge)

Swivel guide rope roller

Configuration

Hydraulic front stabilizer

Control instruments for hydraulic system and diesel engine

Hydraulic dynamometer with set-point and automatic control of maximum pull

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic oil cooling system

Grounding connection point
