70N Stringing Pulley Damp Brake for Transmission Line Tool
70N Stringing Pulley Damp Brake for Transmission Line Tool
70N Stringing Pulley Damp Brake for Transmission Line Tool
70N Stringing Pulley Damp Brake for Transmission Line Tool
Specifications
Brand Name :
HANYU
Model Number :
BZN50
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Container
Stringing Blocks Recover Damper :
70kn
Weight :
3kg
Maximum diameter range string block pass :
Φ16mm
Type :
Recover Machine Roller
Usage :
Transmission Line Tool
Dimension :
285x130x231mm
Description

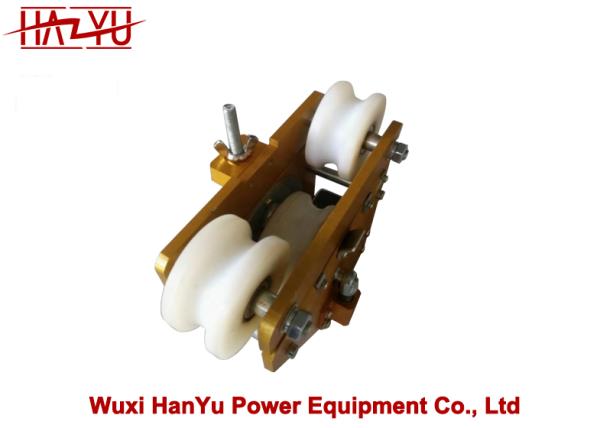

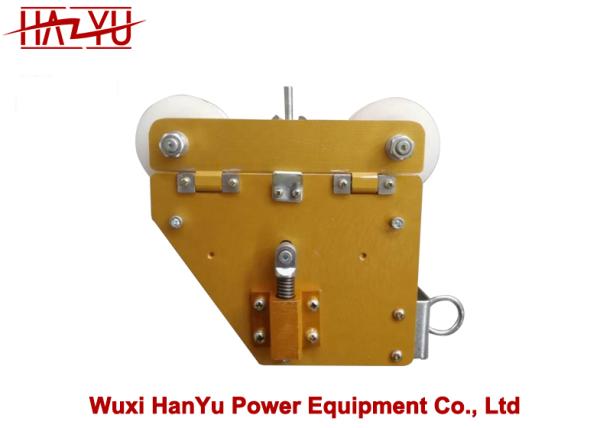

Stringing Pulley Damp Brake Power 70N Stringing Blocks Recover Damper

Model BZN50
Damp brake power (N) 70
Maximum diameter range string block pass(mm) Φ16
Dimension(mm) 285x130x231
Weight (kg) 3
Remark
The Stringing Blocks Recovery Damper is used together with the BZZC350 Self Moving Traction Machine. Stringing Blocks Recovery Damper and Self-Moving Traction Machine are suitable for line change project to spread OPGW, replace old conductor.
Application

Stringing blocks recover damper is used for the guide rope and double pulley rollers after OPGW stringing operations. It can tighten the guide rope to prevent touching the hot line.

It is used to deliver guide rope and double pulley rollers from one steel tower to another, running on earth wire by self-driving system.
Features

1. Simple structure

2. Convenience.

3. Easy operation.

4. Good quality.
