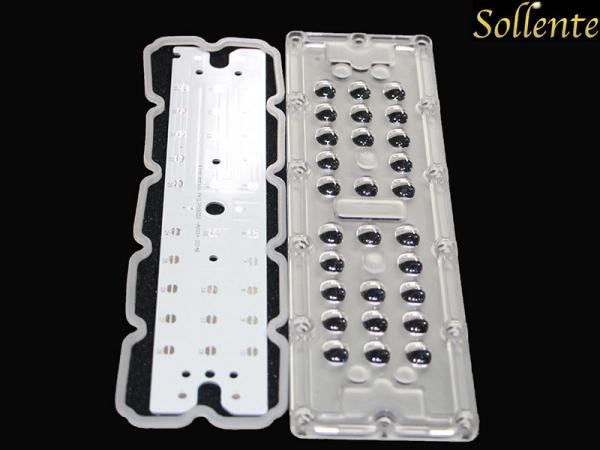

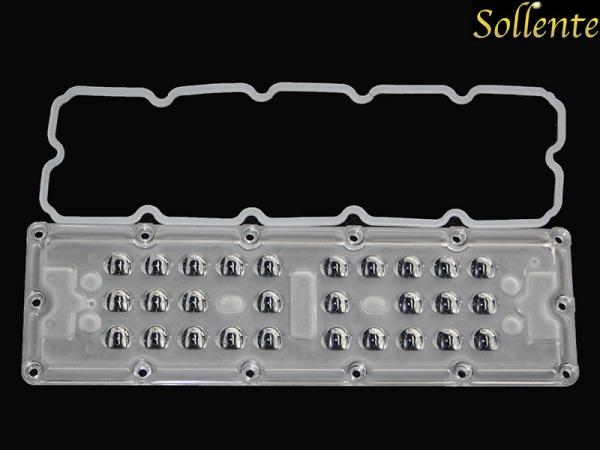

SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module
SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module
SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module
SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module
Specifications
Brand Name :
Sollente
Model Number :
SOE-SL28L-80x150
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
3-14 working days
Packaging Details :
Carton Box
Product Name :
SMD 5050 Led Street Light Lens Array with Easily Retrofitted MCPCB Module
Lens Size :
236x70x8.3mm
PCB Size :
L217.7*W43.5*T1.5mm
Beam Angle :
80x150 degree
Match Led :
5050 SMD
Material :
Optical Grade PC
Efficiency :
91%
PCB circuit :
2 series 14 parallels
Led voltage :
3-3.4V
Description

SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module

Specifications:

Product Name SMD 5050 Led Street Light Lens Array with Easily Retrofitted MCPCB Module
Model No SOE-SL28L-80x150
Main parts 28 Leds Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 236x70x8.3mm
PCB Size 217.7*43.5*1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

2 series 14 parallel
LED details 3-3.4V
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia

Led Street Light Lens Drawing:

SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module

80x150 degree Led Street Light Lens Distribution:

SMD 5050 Led Street Light Lens Array Easily Retrofitted MCPCB Module

Features :

  1. This SKD Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps.
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 80x150°, 90°, 60°

Related SMD 5050 Led Street Light Modules:

Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-SL28L-60

 60° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-90

 90° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-80x150

 80x150° 236x70x8.3mm 217.7*43.5*1.5mm

Competitive Advantage:
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light

Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
