PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V
Specifications
Brand Name :
HL
Model Number :
HL-PP
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1set
Price :
10000.00-56000.00(USD)
Payment Terms :
L/C, T/T
Supply Ability :
20 set/Monthly
Delivery Time :
20-30days
Packaging Details :
PE film
Name :
pp strapping band making machine
Width :
5-19 mm
Thickness :
0.3-1.2 mm
Motor power :
55 KW
Production capacity :
100-600 kg/ h
Control Mode :
PLC
Material :
PP
Environmental protection :
YES
automatic winding machine :
YES
Plastic extruder :
PP
Screen changer :
automatic screen changer
Metering pump :
YES
Description

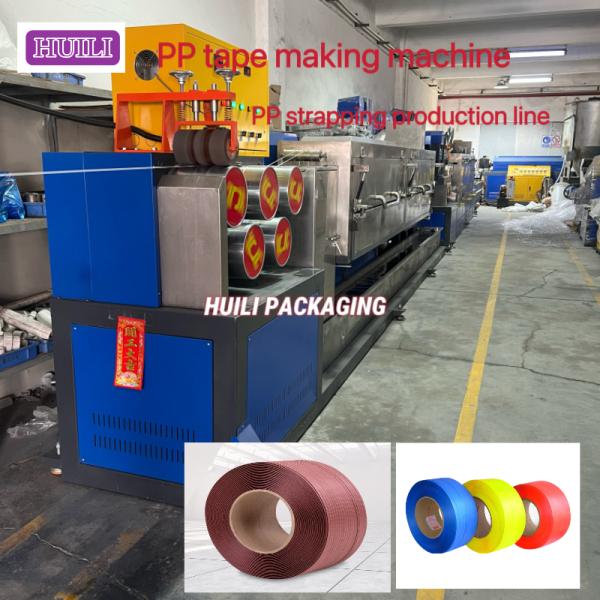

Automatic PP strapping production line 5-19mm PP strapping production equipment PP extrusion strapping machine

Product Description of PP strapping strapping production line:

PP Strapping Strapping Production Line

FEATURES:
PP Strapping Strapping Production Line Raw Materials:
The strapping belt can be produced using 100% virgin polypropylene, recycled polypropylene, or a blend of virgin polypropylene. Calcium carbonate can also be added to meet customer needs to reduce production costs, increase product profits, and enhance market competitiveness.
2. The various specifications of the strapping tape produced are compatible with various fully automatic unmanned strapping machines, both domestically and internationally.
3. High output and fast line speeds, with finished product line speeds reaching 300 m/min.
4. High-precision, high-quality screws, sourced from renowned brands and featuring unique parameter designs, offer advantages such as high extrusion capacity, excellent plasticization, high hardness, and wear resistance.

Raw Materials-------
100% New PP polypropylene material

PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V

Raw Materials-------
100%PP recycled polypropylene

PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V


EXTRUSION PARAMETERS TABEL

Model PP-2 PP-4 PP-6 PP-8 PP-10 PP-12
Raw material PP polypropylene new material/recycled material
Number of tapes 2 4 6 8 10 12
Width(mm) 5-19 5-19 5-19 5-19 5-19 5-19
Thickness(mm) 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2
Line speed(m/min) ≧260-300
PLC control system PLC PLC PLC PLC PLC PLC
Screw Model 90 110 125 135 135 135
Reducer model 200 220 250 280 280 280
Drying barrel (kg) 100 150 200 200 200 200
Winding machine Automatic winding machine /Semi-automatic winding machine
Screen Changer Automatic/Manua
Production capacity 24H 2.5-3T 6-7T 8-9T 10-11T 12-13T 13--14T

PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V

About packaging:

PP Strapping Strapping Production Line is packaged and fixed with PE stretch film

PP Strapping Strapping Production Line is safely fixed in the container and tied and fixed with wire.

PLC Control Automatic PP Strapping Production Line 5-19mm Width High Output 380V

FAQ:

Q:What is the voltage of PP Strapping Strapping Production Line?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP Strapping Strapping Production Line?
A:We are from China.
Q:Can pp strapping band making machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strapping Strapping Production Line?
A:We have 30 years of manufacturing experience, and have their own PP Strapping Strapping Production Line plant, equipment quality is stable, the process is worth choosing.
Q:Does pp strapping band making machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP Strapping Strapping Production Line look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
