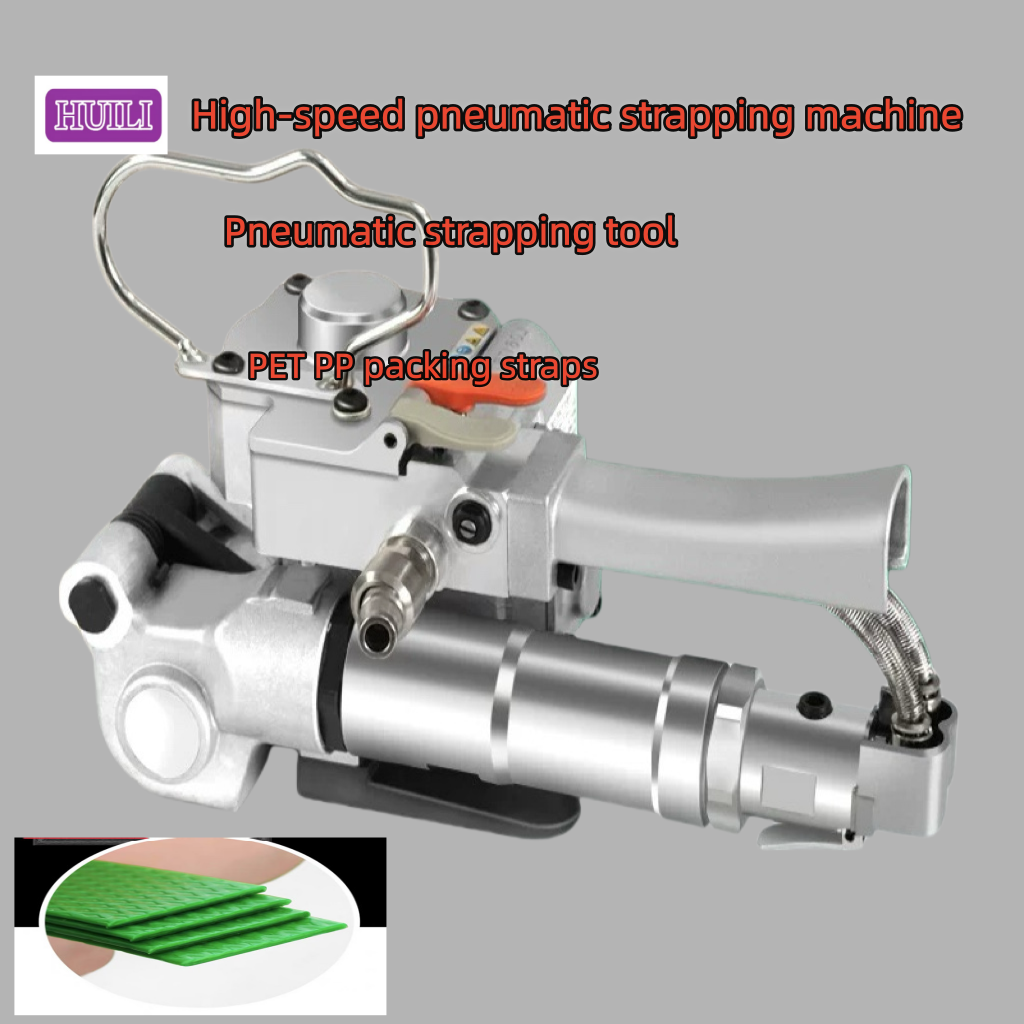

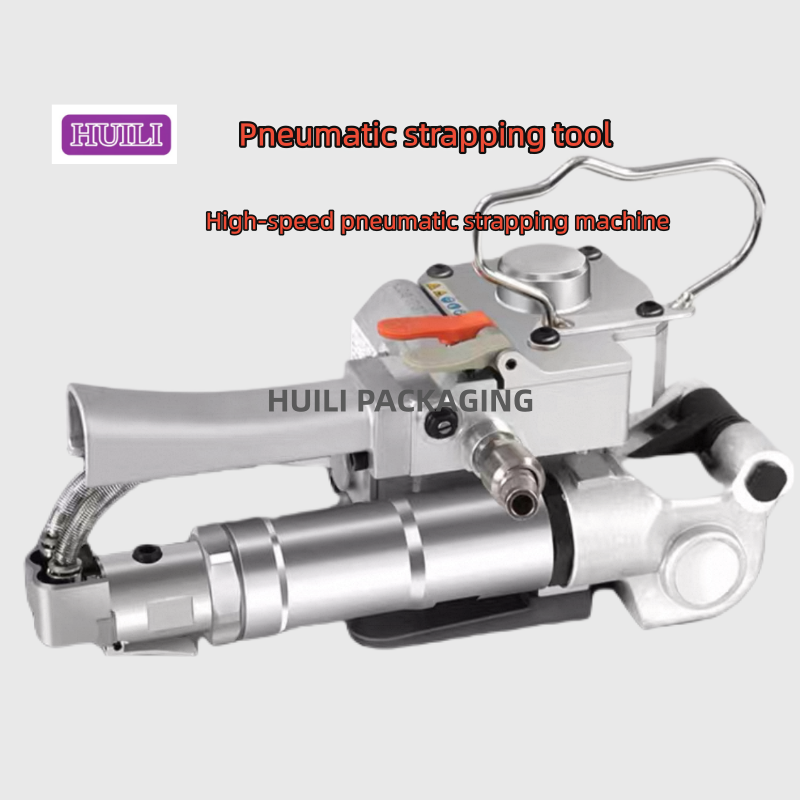

This handheld pneumatic strapping tool is driven by an air compressor and integrates tension, sealing, and cutting functions. Compact in design and easy to operate, it is widely used across various industries including papermaking, aluminum, steel, wood, chemical fiber, cotton, tobacco, chemical processing, and metal products.

• Lightweight & High-Strength------- PP polypropylene offers low density for lightweight straps with high tensile strength, ideal for heavy cargo binding.
• Corrosion Resistance--------Excellent resistance to acids, alkalis, salts, and most chemical solvents, suitable for humid or corrosive environments.
• High Abrasion Resistance------- Smooth, abrasion-resistant surface minimizes breakage risk during long-distance transportation.
• Good Flexibility------- Elastic properties cushion vibrations and impacts, preventing breakage from over-tight binding.
• Waterproof & Moisture-proof-------- Non-absorbent material maintains stable performance in humid conditions.
• Binding Machine Compatibility---------- Highly adaptable for use with automatic, semi-automatic, and manual binding machines.

Strapping Material: Plastic Tape

Automatic Grade :Semi-Automatic

Driven Type: Pneumatic

Strap Width:13-19mm

Strap Thickness:0.5-1.5mm

Band Material:Pet/PP

Max Tension:3000n

Sealing Type:Friction Weld

Pressure:0.5-0.8MPa

Structure :

Weight (N/G):5 Kgs

N. W:3.8kgs

Transport Package:Box

I. Core Functions

Tightening

Function Description: The pneumatic strapping machine automatically tightens the straps wrapped around the goods to the preset tension.

Purpose: To ensure the straps adhere tightly to the surface of the goods, preventing them from loosening or shifting during transportation and storage.

Adhesion/Locking

Function Description: Secures the joint through two main methods:

Hot-Melt Friction Bonding: This is the most common method. The machine uses a tiny "friction plate" to vibrate and rub the two straps (overlapping sections) at high speed, generating heat to melt their surfaces. Then, rapid pressure is applied and cooling occurs, fusing them into a strong bond.

Pneumatic strapping machines are essential in industrial and logistics sectors requiring high-strength, efficient packaging solutions:

• Paper Industry: Paper, cartons, pulp packaging
• Metal Manufacturing: Steel, aluminum, metal coils, pipes
• Timber Processing: Timber, boards, palletized goods
• Building Materials: Tiles, glass, plastic profiles
• Logistics & Transportation: Pallet and box reinforcement
• Chemical Fiber & Textile: Fabrics and chemical fiber products
• Waste Recycling: Waste paper, plastics, metals
