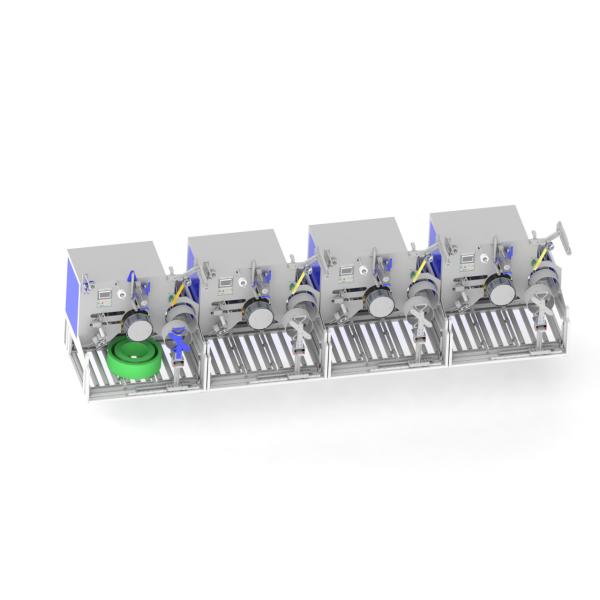

Robotic Palletizing PET Strap Winder with 80kg Capacity and Dual Servo Motor for Automatic Strap Winding
Robotic Palletizing PET Strap Winder with 80kg Capacity and Dual Servo Motor for Automatic Strap Winding
Specifications
Brand Name :
CHUANQI
Model Number :
CQA800F
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
300 sets
Delivery Time :
60 days
Packaging Details :
FCL/LCL
Width Range :
9-32mm
Inside Diameter Range :
250mm/400mm
Winding Tension :
Adjustable
Winding Capacity :
Up to 80kg
Strap Width :
9mm-32mm
Motor :
Dual servo motor
Configure :
Standard or customized
Packaging Type :
Wooden box
Thickness :
0.5mm-1.3mm
Warranty :
1year
Description
Robotic Palletizing PET Strap Winder
Automated PET Strap Winder CQA800F
Robotic Palletizing PET Strap Winder with 80kg Capacity and Dual Servo Motor for Automatic Strap Winding
Polyester PET strapping winder/wrapper with maximum capacity of 80KG per coil, designed for friendly integration with automatic palletizing systems.
Overview
The CQA800F is suitable for one out of six or one out of eight PET strap production lines with robotic arm integration. This strap winder winds straps in parallel directly from the extruder. Systems operate independently once material is manually applied and can be integrated into fully automated production plants. It winds PET straps with widths ranging from 9~32mm depending on configuration.
When a winding package reaches the desired circumference, it is automatically wrapped with film by the integrated winder and transferred via the integrated transport system to the roller conveyor below. Simultaneously, a new winding tube is fed from the magazine, enabling fully automatic continuous operation. The compact design allows for use in confined spaces.
Key Features & Advantages
  • Fully automatic PET strap winder for straps from 9 to 32 mm, with outer package diameter of 820 mm
  • Conveyor system for automatic package transport
  • Film wrapping device for automatic package wrapping
  • Central input terminal with recipe management
  • Fully automatic winding with or without paper core
Technical Specifications
Model CQA800F
Winding Speed 50 - 250 m/min
Maximum Pick Up Speed 350 m/min
Maximum Mandrel Rotation Speed 500 m/min
Strap Width 9~32mm
Traverse Length 50~200mm
Mandrel Diameter 406mm or customized
Maximum Package Diameter 820 mm
Standard Equipment
  • Dancer control for constant strap tension and winding speed control, Dual servo motor
  • Precise, electronically controlled 2 or 3 point laying with minimal strap bend
  • Pneumatic lamella spreading mandrels for fast bobbin change
  • Sleeve magazine
  • Bobbin deposit
  • Automatic film dispenser
  • Two measurement modes: weight and meter
Robotic Palletizing PET Strap Winder with 80kg Capacity and Dual Servo Motor for Automatic Strap Winding Robotic Palletizing PET Strap Winder with 80kg Capacity and Dual Servo Motor for Automatic Strap Winding
Automatic Palletizing System
Palletizing Programs
Program A: Strap OD 600MM, height 150MM, weight 20KG, 1 layer of 4, separated by cardboard, up to 12 layers.
Program B: Strap O.D. 800MM, height 190MM, weight 75KG, 1 layer of 2, cardboard separated, up to 7 layers.
Robot Specifications:
Robot arm model: JZJ160A-270
Speed: 40 seconds per roll
One automatic palletizing system can match up to 2 sets of one out 8 PET strap production lines.
System Dimensions:
Cardboard platform: 1240mm × 1240mm × 1500mm
Positioning conveyor belt: 3220mm × 1170mm × 680mm
Robot arm base: 700mm × 700mm × 1000mm
Operation Process: Finished products arrive at the conveyor belt positioning position, where the robotic arm grabs and places them onto the pallet. When one layer is complete, the robotic arm picks up cardboard for separation and repeats the process until the pallet is fully stacked.
