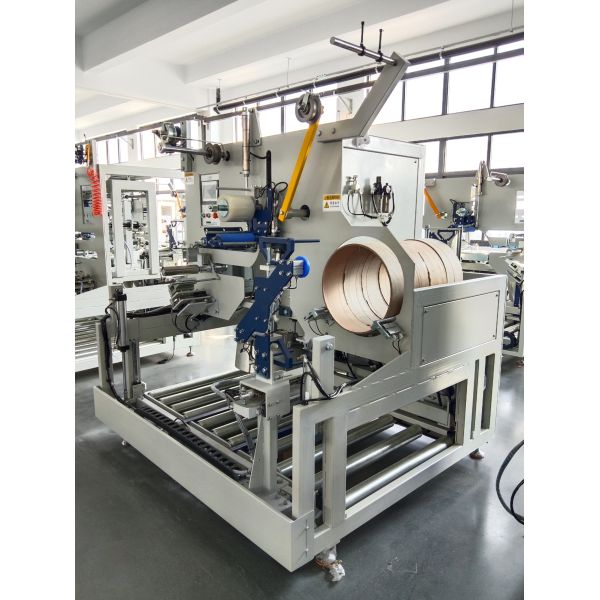

PET Strap Automatic Winding Machine Winder Max 80kg
PET Strap Automatic Winding Machine Winder Max 80kg
Specifications
Brand Name :
CHUQI
Model Number :
CQA800F
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
1000 sets
Delivery Time :
60 days
Packaging Details :
Wood box
Description

Abstract

CQA800F suitable for one out of six, one out of eight PET strap production line with robotic arm use.

The strap winder of the CQA800F was used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind PET straps with width of 9~32mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the integrated winder and tipped by the integrated transport system from the winder down to the roller conveyor below. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continuous operation. The compact design permits use even in confined spaces.

Facts and advantages

1.Fully automatic PET strap winder for straps from 9 to 32 mm, with an outer package diameter of 820 mm

2.Conveyor system for automatic package transport

3.Film wrapping device for automatic package wrapping

4.Central input terminal with recipe management

5. Fully automatic winding can be achieved with or without paper core

Model

CQA800F

Winding speed

50 – 250 m/min

Maximum pick up speed

350 m/min

Maximum mandrel rotation speed

500 m/min

Strap width

9~32mm

Traverse length

50~200mm

Mandrel diameter

406mm or customized

Maximum package diameter

820 mm

Basic equipment

1.Dancer control for controlling a constant strap tension and winding speed, Dual servo motor

2. Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

3. Pneumatic lamella spreading mandrels for fast bobbin change

4. Sleeve magazine

5. Bobbin deposit

6. Automatic film dispenser

7. Two measurement modes: weight and meter
