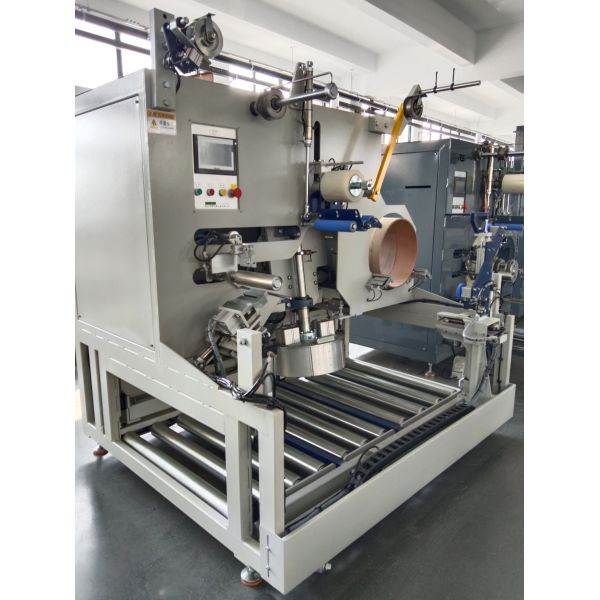

Fully Automatic PET Strap Winder for 1-out-of-6 or 1-out-of-8 Lines
Fully Automatic PET Strap Winder for 1-out-of-6 or 1-out-of-8 Lines
Specifications
Brand Name :
CHUQI
Model Number :
CQA800F
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
1000 sets
Delivery Time :
60 workdays
Packaging Details :
Wood Box
Suitable line types :
1-out-of-6, 1-out-of-8 PET strap lines
Line independence :
Independent operation
Automatic functions :
Wrapping, flipping, feeding, measurement
Compact design :
Suitable for side‑by‑side multi‑line layout
Recipe management :
Central touchscreen
Max package OD :
820 mm
Description
Fully Automatic PET Strap Winder for 1-out-of-6 or 1-out-of-8 Lines
Production Overview
The CQA800F is specifically designed for 1-out-of-6 or 1-out-of-8 multi-line PET strap production lines and can work with robotic arms for fully automatic winding. Each extrusion line's strap is wound independently; after manual threading, the machine runs automatically. Integrated functions such as film wrapping, flip discharge, and sleeve magazine core feeding make the entire winding process hands-free. Central recipe management allows quick changeover between specifications. The compact design fits in confined spaces, adapting to multi-line layouts. Winding speed 50-250 m/min, max package OD 820 mm, strap width 9-32 mm. This model significantly improves automation level and space utilization in multi-line factories.
Technical Parameters
Parameter Specification
Model CQA800F
Suitable line types 1-out-of-6, 1-out-of-8 PET strap lines
Robotic arm compatibility Yes (can interface with robotic arms)
Independent per line Yes (auto after manual threading)
Automatic functions Film wrapping, flip discharge, core feeding, measurement
Winding speed 50 - 250 m/min
Max package outer diameter 820 mm
Strap width range 9 - 32 mm
Recipe management Central touchscreen
Compact design Suitable for confined spaces
Key Features
  • Designed for multi-line - Adapts to 1-out-of-6 or 1-out-of-8 lines, reduces number of machines.
  • Robot compatible - Can work with robotic arms for automatic loading/unloading.
  • Fully automatic cycle - Winding, film wrapping, flip, core feeding all automatic.
  • Independent operation - Each line controlled independently, no interference.
  • Compact layout - Small footprint for side-by-side arrangement.
  • Quick spec changeover - Recipe management, one-touch change.
  • Continuous production - Sleeve magazine ensures uninterrupted core feeding.
Frequently Asked Questions
What does 1-out-of-6 or 1-out-of-8 mean?
It means one extrusion line produces 6 or 8 PET straps simultaneously. The CQA800F can be configured with one winder per strap line, or serve them alternately via a switching device.
How does it work with robotic arms?
Robotic arms can be used for automatic threading, core changing, or finished coil handling. The machine has standard interfaces to receive robot signals and coordinate actions.
Is there enough space to place so many winders side by side?
The CQA800F has a compact design with small width, allowing tight packing. The total footprint for 8 winders on a 1-out-of-8 line is much smaller than traditional models.
If one line fails, does it affect other lines?
No. Each winding system works independently; a fault affects only its corresponding line.
Can I upgrade my existing production line to this configuration?
Yes. The machine can be integrated into existing fully automated plants. Simply provide your extrusion line parameters and layout, and the manufacturer will customize the installation plan.
