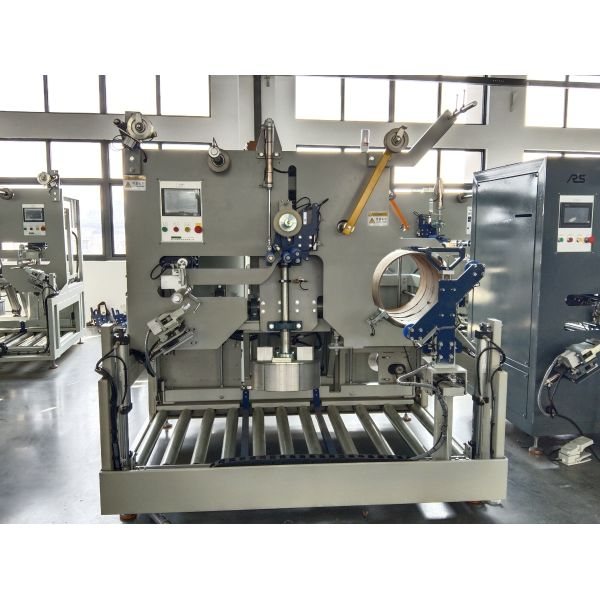

Compact Design PET Strap Automatic Winding Machine Winder for Confined Spaces
Compact Design PET Strap Automatic Winding Machine Winder for Confined Spaces
Specifications
Brand Name :
CHUQI
Model Number :
CQA800F
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
1000 sets
Delivery Time :
60 days
Packaging Details :
Wood Box
Design type :
Compact
Suitable spaces :
Beside extruder, workshop corners, between equipment
Side‑by‑side capability :
Yes (for 1-out-of-6/8 lines)
Functional integrity :
Full automatic features retained
Installation method :
Factory assembled, on‑site connection only
Max package OD :
820 mm
Description
Compact Design PET Strap Automatic Winding Machine Winder for Confined Spaces
Production Description

The CQA800F fully automatic PET strap winder features a compact design with optimized width and depth, allowing easy installation in confined spaces such as narrow aisles next to extruders, corners of old workshops, or gaps between existing equipment. Despite its small footprint, it integrates full functions including automatic film wrapping, flip discharge, and sleeve magazine core feeding, and supports side-by-side arrangement for 1-out-of-6 or 1-out-of-8 multi-line layouts.

The compact layout not only saves floor space but also reduces operator walking distance and improves safety. For new plants or retrofit projects, fully automatic winding can be achieved without plant expansion.

Technical Parameters
Parameter Specification
Model CQA800F
Design type Compact
Suitable spaces Narrow aisles beside extruder, workshop corners, gaps between equipment
Simultaneous straps per machine 1 (multiple machines can be side-by-side)
Full automatic functions retained Yes (wrapping, flipping, feeding, measurement, etc.)
Winding speed 50 - 250 m/min
Max package outer diameter 820 mm
Strap width range 9 - 32 mm
Installation method Factory assembled, on-site connection only
Key Features
  • Minimal footprint - Optimized width, allows side-by-side for 1-out-of-8 lines.
  • No plant expansion needed - Retrofits into existing space.
  • Full functions without compromise - All automatic features integrated.
  • Suited for narrow aisles - Small side access requirement.
  • Quick installation - Fully assembled at factory; only connect power, air, and thread.
  • Improves workshop layout - Frees space for material storage or walkways.
  • Robot compatible - Can work with robotic arms for full automation.
Frequently Asked Questions
Q1: Does compact design mean some functions are removed?
Not at all. The CQA800F has all the same functions as larger winders: automatic film wrapping, flip discharge, automatic core feeding, constant tension, electronic layering, measurement, etc. Compactness is achieved by optimized mechanics and integration.
Q2: For a 1-out-of-8 line with 8 machines side by side, what is the advantage of compact design?
The total width of 8 machines side-by-side is much smaller than traditional models, allowing all winders to fit within a limited plant length without extending the building.
Q3: Does compact design affect heat dissipation?
It has been carefully considered. Motors, drives, and pneumatic components are placed in well-ventilated areas, with cooling vents on the side panels and optional exhaust fans - ensuring no heat accumulation during long runs.
