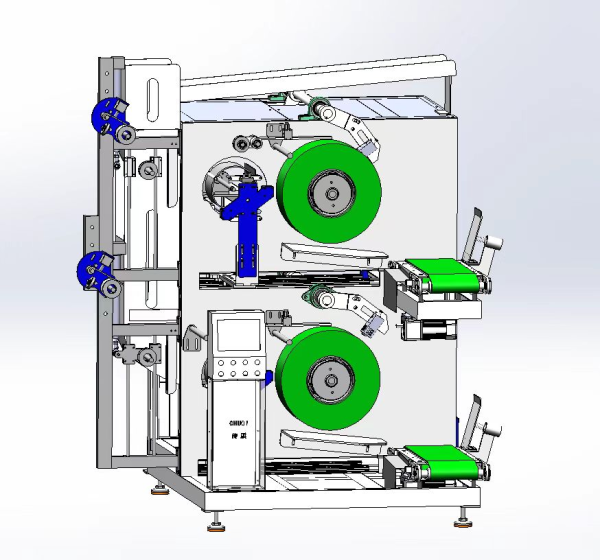

Compact Design for Tight Spaces PP Strap Winder
Compact Design for Tight Spaces PP Strap Winder
Specifications
Brand Name :
CHUQI
Model Number :
CQA819PD
Place of Origin :
CHINA
MOQ :
1
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
600SETS
Delivery Time :
60DAYS
Packaging Details :
WOOD BOX
Design type :
Compact
Machine width :
≈1.2–1.5 m
Machine depth :
≈1.0–1.2 m
Recommended access :
Front 1 m, side 0.6 m
Simultaneous straps :
2
Installation method :
Factory assembled, on‑site connection only
Description
Compact Design for Tight Spaces PP Strap Winder
Product Overview

The CQA819PD fully automatic PP strap winder features a compact design with optimized width and depth, allowing easy placement in workshop corners, next to extruders in narrow aisles, or between existing equipment. Despite its small footprint, it can simultaneously wind two 8-19 mm PP straps and integrate full functions such as automatic unloading, automatic tube feeding, dancer tension control, and electronic layering. The compact layout not only saves floor space but also reduces operator walking distance and improves safety. For old workshop retrofits or new projects with space constraints, the CQA819PD is an ideal automation upgrade - achieving automatic winding without plant expansion.

Technical Specifications
Parameter Specification
Model CQA819PD
Design type Compact
Machine width Approx. 1.2-1.5 m (exact dimensions upon request)
Machine depth Approx. 1.0-1.2 m
Machine height Approx. 1.5-1.7 m
Suitable space types Corners, beside extruder, between equipment
Simultaneous straps wound 2
Full automatic functions included Yes (unloading, feeding, tension, layering all integrated)
Key Features
  • Minimal footprint - Width only about 1.2 m, can be wall-mounted.
  • No plant expansion needed - Retrofits into existing space.
  • Full functions without compromise - All standard automatic features integrated.
  • Suited for narrow aisles - Side access requires only 0.6 m.
  • Two-strap winding - One machine equals output of two traditional winders, but occupies only one's footprint.
  • Quick installation - Fully assembled at factory; only connect power, air, and thread.
  • Improves workshop layout - Frees more space for material storage or walkways.
Frequently Asked Questions
Q1: Does the compact design make operation or maintenance difficult?
A: No. All points requiring operation and daily maintenance (threading path, control panel, pneumatic mandrels, magazine) are on the front and side, with adequate clearance. Recommended access distance is 1 m at the front and 0.6 m at the side.
Q2: I only have 10 square meters of free space in my workshop - can it fit?
A: The CQA819PD occupies about 1.5-1.8 m². If the free area is regular in shape, it should fit easily. Please send us a floor plan for a free layout simulation.
Q3: Does compact design mean some functions are removed?
A: Not at all. The CQA819PD has all the same functions as larger winders: simultaneous two-strap winding, automatic unloading/feeding, constant tension, electronic layering, weighing/length measurement, etc. Compactness is achieved by optimized mechanics and integration.
Q4: Can I place two machines side by side for future expansion?
A: Yes. Due to the narrow width, two machines can be arranged side-by-side with a total width of about 2.5-3 m, sharing one conveyor or access aisle - further saving space.
Q5: Does compact design affect heat dissipation?
A: It has been carefully considered. Motors, drives, and pneumatic components are placed in well-ventilated areas, with cooling vents on the side panels and optional exhaust fans - ensuring no heat accumulation during long runs.
