PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
PET Strap Making Machine Featuring Extrusion Cooling Traction Stretching Embossing Setting and Secondary Cooling
Specifications
Brand Name :
YXZX
Model Number :
YXZXPET-90A; YXZXPET-100A; YXZXPET-125A; YXZXPET-135A; YXZXPET-150A
Certification :
ISO 9001:2015 And CE
Place of Origin :
Shenzhen, China
MOQ :
1Set
Price :
101449.8-289856
Payment Terms :
T/T,L/C
Supply Ability :
80Set/Year
Delivery Time :
35-45 Working Days
Packaging Details :
Large equipment wrapped with stretch film; Small accessories packed in wooden cases
Color :
As shown in the picture or customizable
Screw Diameter (mm) :
90, 100, 125, 135, 150
Screw Material :
38CrMoALA
Equipment Capacity (KG/H) :
100-210, 130-300, 200-500, 250-650, 300-800 or customizable
Equipment Power Consumption (KW/H) :
80-100, 120-130, 130-140, 170-180, 200-220
Applicable Materials :
PET Granules, PET Bottle Flakes, Recycled Strapping Scraps, Material Made From Clothing.
Finished Product Specifications :
Width 9–32 mm, Thickness 0.4–1.4 mm

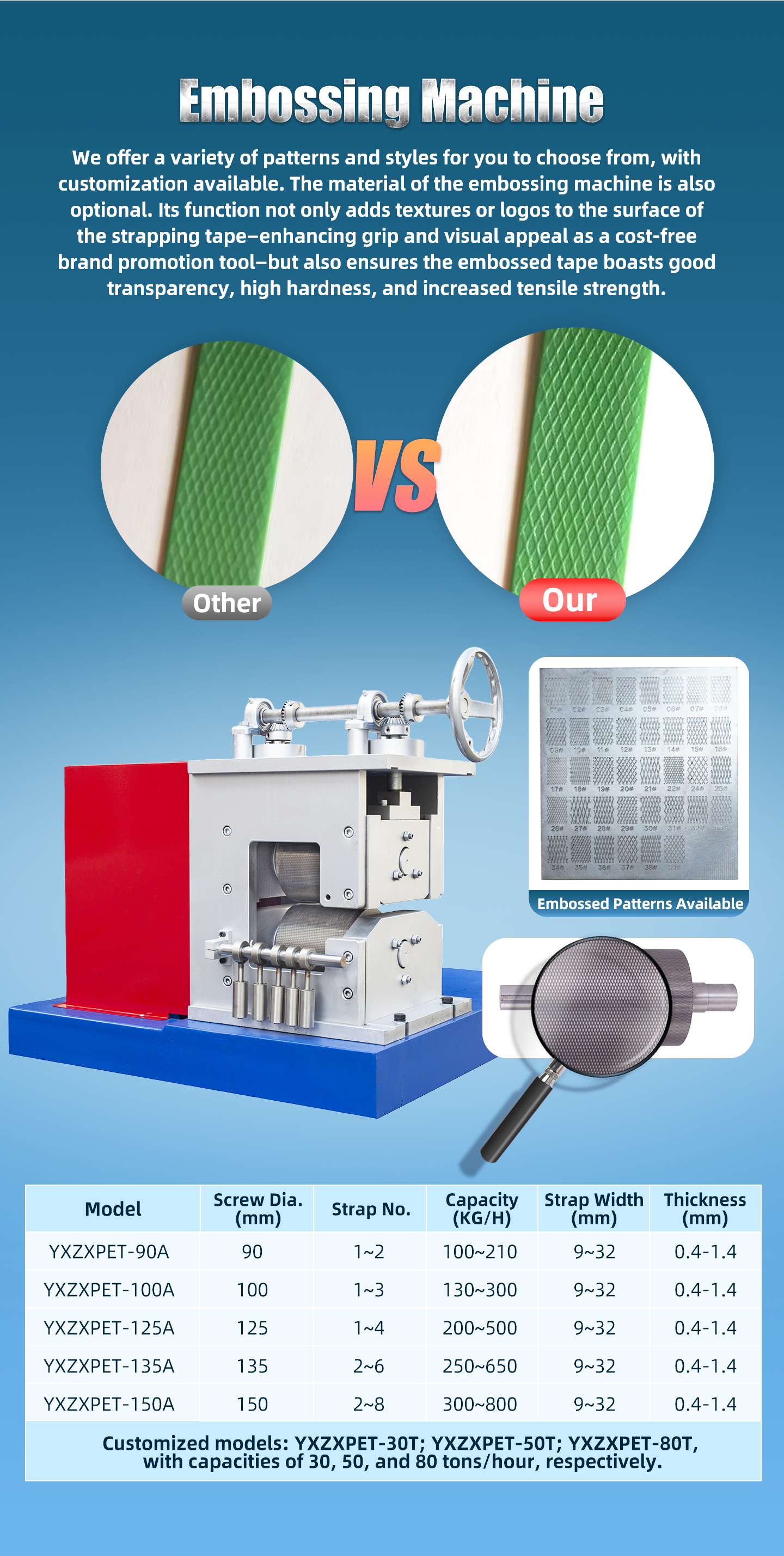

Embossing Machine :
Optional embossing patterns
Optional Equipment :

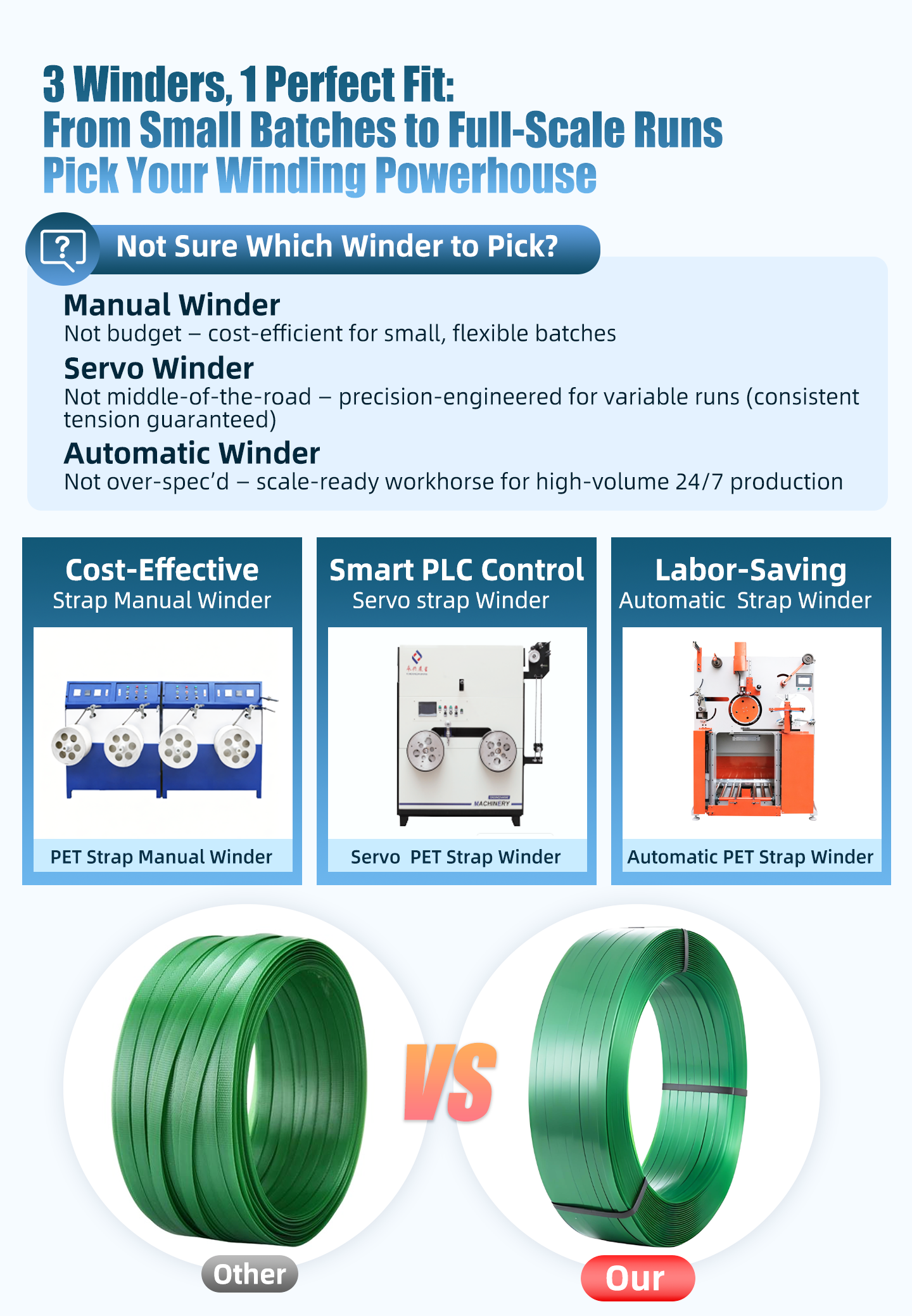

Manual Strap Winder, Servo Strap Winder, Fully Automatic Strap Winder
Warranty :
1 YEAR
nstallation Dimensions (L×W×H) (mm) :
50000×1500×7000, 60000×2000×8000 and so on
Installation :
Video-guided installation & On-site installation service
Weight :
About 20270KG
Screw speed (rpm) :
1000rpm
Screw L/D Ratio :
1:29
Description

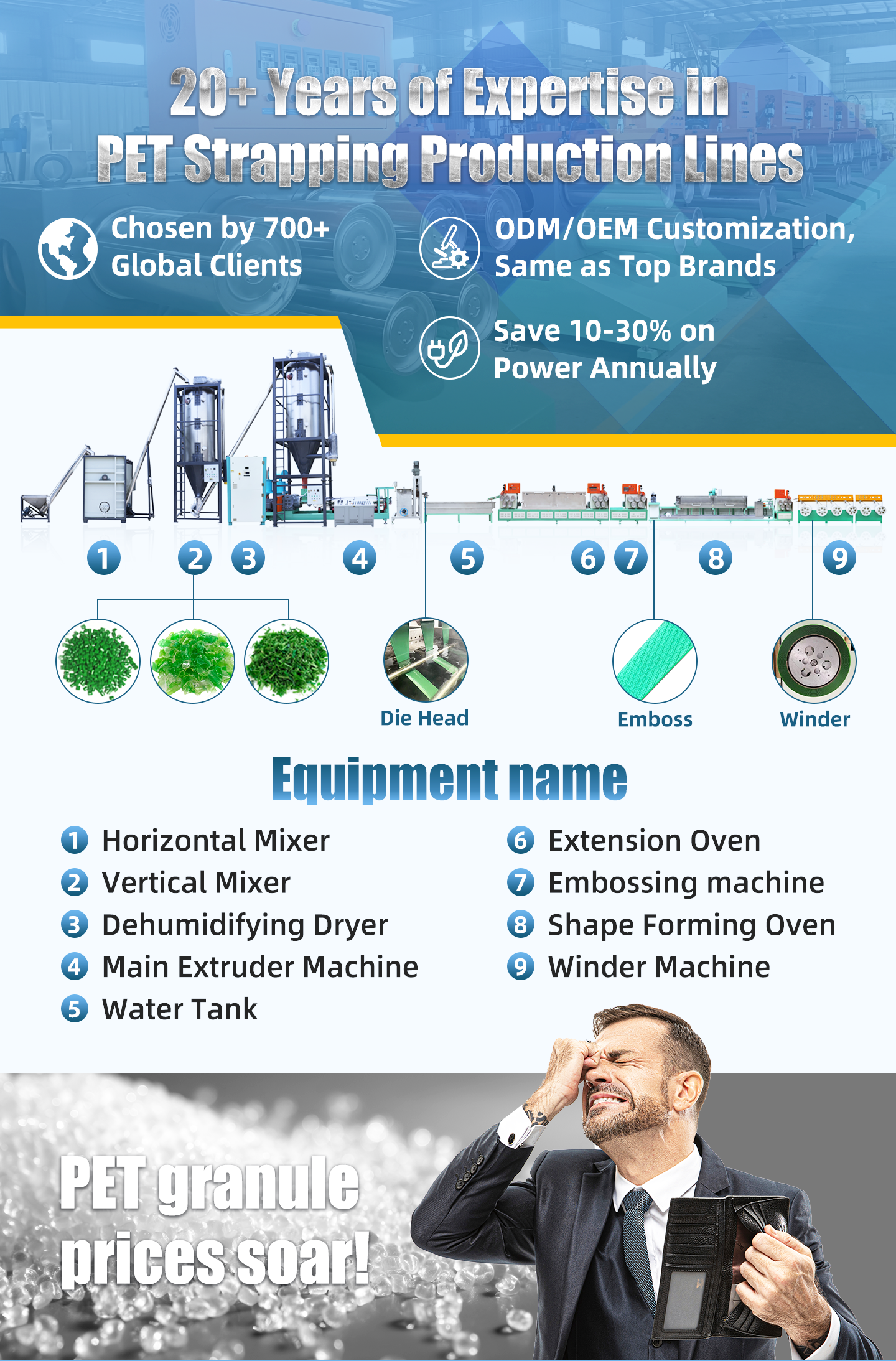

PET Strapping Production Process:

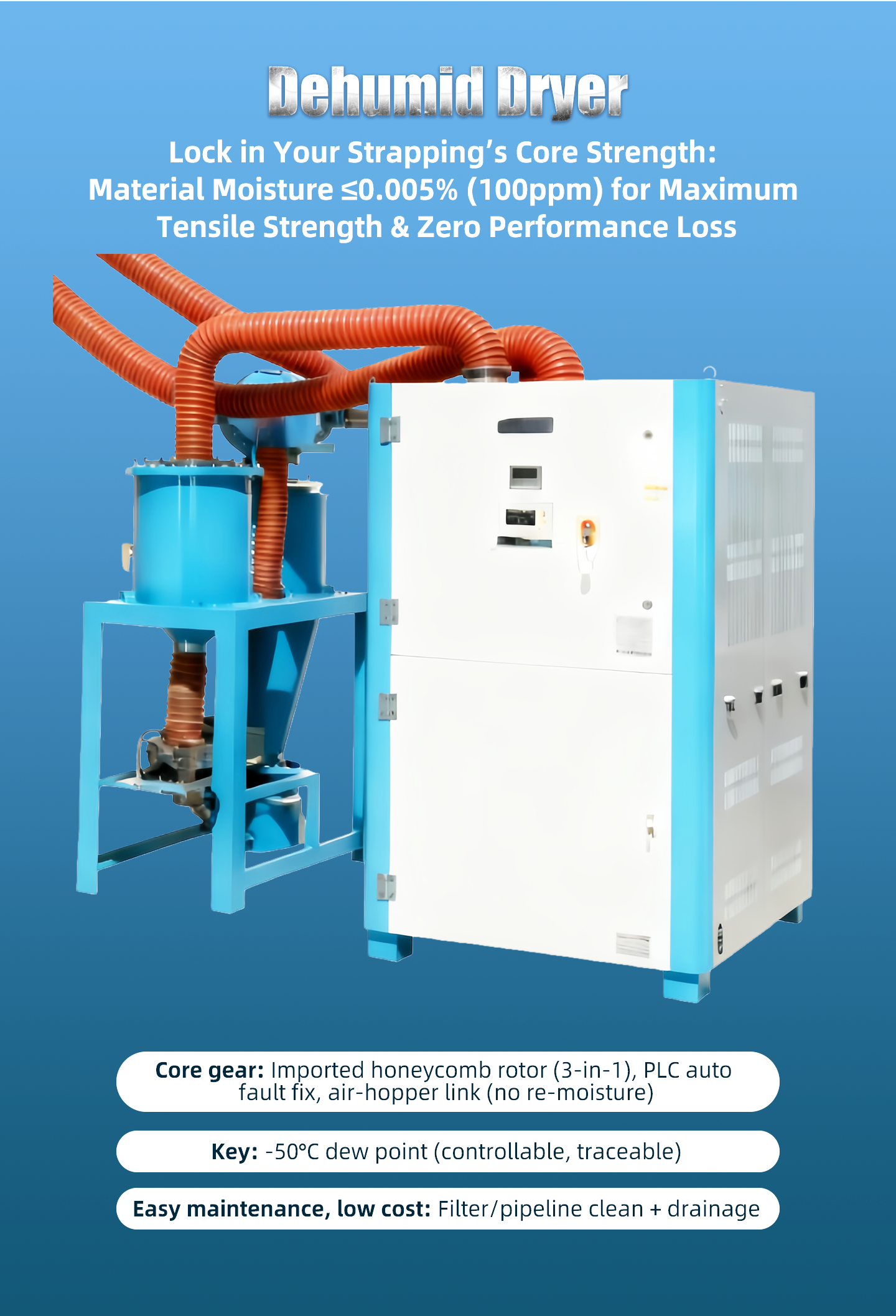

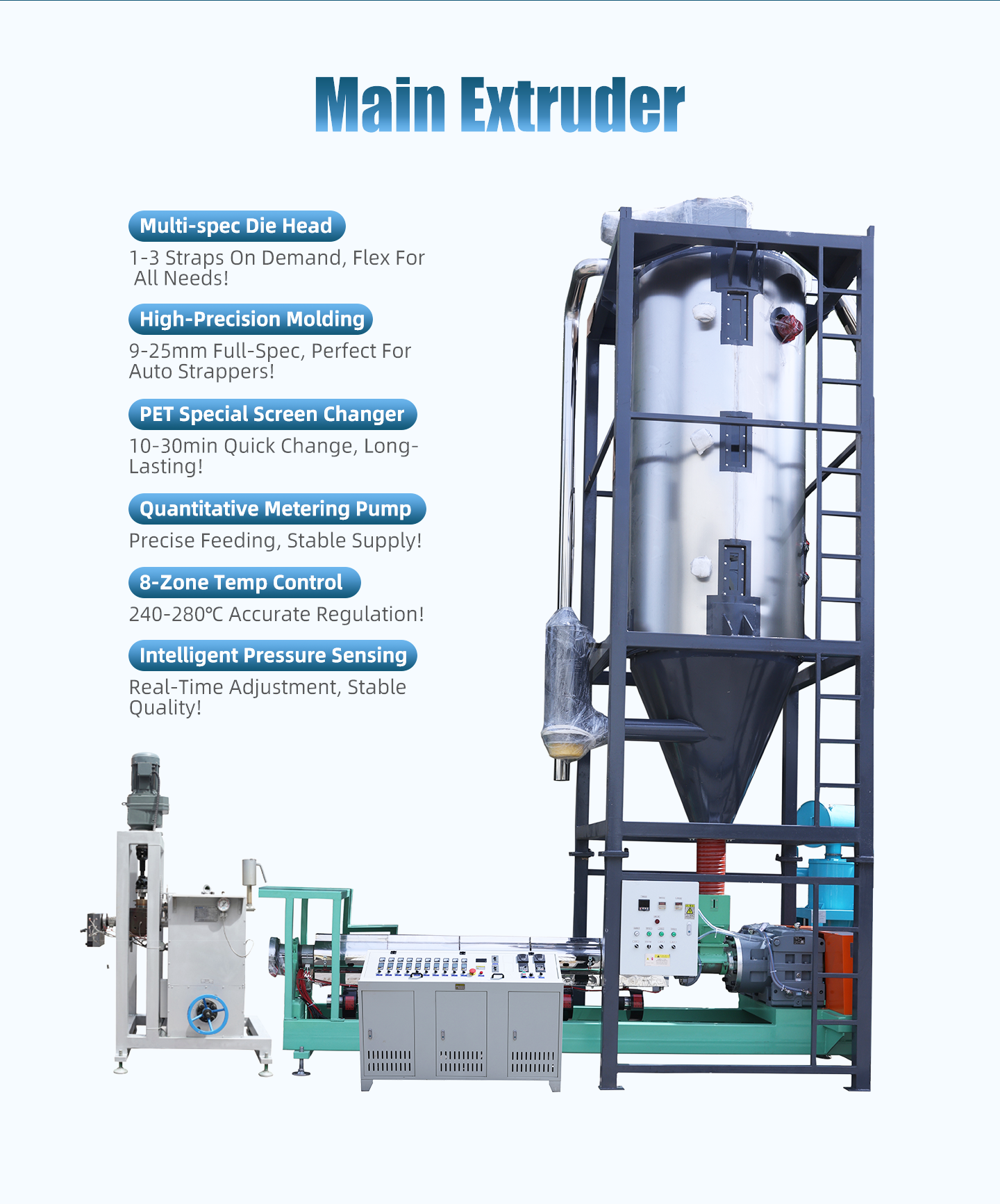

Pre-drying → Material Loading → Dehumidification → Crystallization → Extrusion → Primary Cooling → Traction ① → Stretching Ⅰ → Stretching Ⅱ → Embossing → Setting → Secondary Cooling → Traction ② → Winding
