Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPP
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 set/ month
Delivery Time :
30-40days
Packaging Details :
plastic film
Strap Width :
5-19mm
Extruder Power :
37KW
Video outgoing-inspection :
YES
Neat winding :
YES
Service guaranteed :
YES
production capacity :
300-600kg/h
First-class technology :
YES
Material :
PP Polypropylene New Material/recycled Material
Thickness :
0.6-1.2mm
operation mode :
PLC computer touch screen
length :
Negotiable
Paper tube size :
200*170/175/180mm
Description

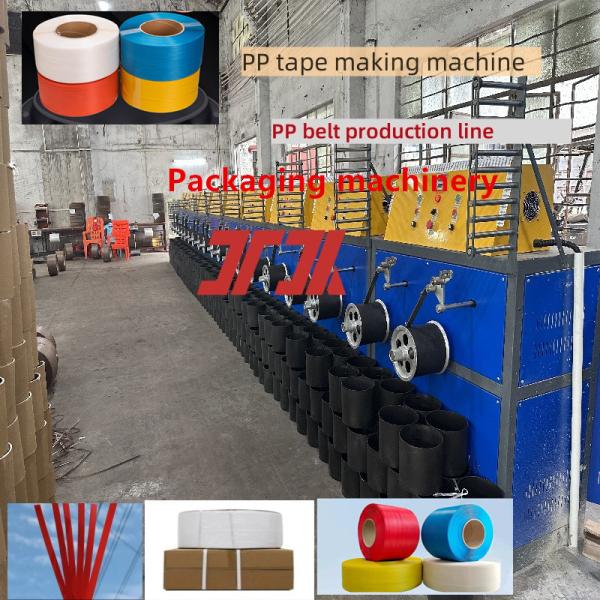

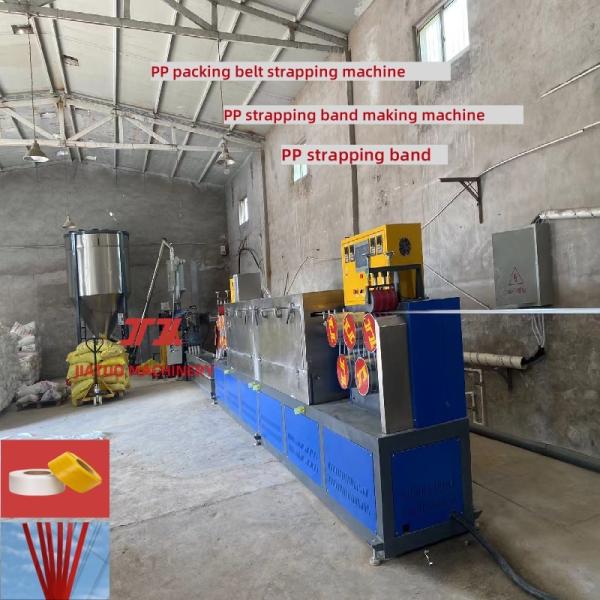

PP packing strap making machine twin screw sandwich PP strapping production line high speed PP strap equipment

Product Description of pp packing strap making machine:

pp packing strap making machine

pp packing strap making machine advantages:

Advanced technology----pp packing strap making machine has advanced technology. After continuous research and development, operation, the products produced are advanced and suitable for various strapping machines;

Low failure rate----pp packing strap making machine has been continuously developed, improved, and tried, the equipment failure rate is low, reducing later maintenance and saving costs by more than 20-30%;

PLC control----Adopting PLC control system, unique built-in memory parameters, the same product does not need to be debugged multiple times.

Automation----pp packing strap making machine has a high degree of automation, does not require multiple manual operations, easy and simple.

Energy saving----pp packing strap making machine adopts energy-saving and environmentally friendly design, with its own temperature control system, no need to heat all the time, saving more than 30-40% of power loss.

Raw materials------

100% PP polypropylene new material or recycled material

PP packing strap making machine twin screw sandwich PP strapping production line high speed PP strap equipmentt

PP packing strap making machine twin screw sandwich PP strapping production line high speed PP strap equipmentt EXTRUSION PARAMETERS TABLE

Model

PP-2

PP-4

PP-6

PP-8

PP-10

PP-12

Raw material

PP polypropylene new material/recycled material

Number of tapes

2

4

6

8

10

12

Width(mm)

5-19

5-19

5-19

5-19

5-19

5-19

Thickness(mm)

0.4-1.2

0.4-1.2

0.4-1.2

0.4-1.2

0.4-1.2

0.4-1.2

Line speed(m/min)

≧260-300

PLC control system

PLC

PLC

PLC

PLC

PLC

PLC

Screw Model

90

110

125

135

135

135

Reducer model

200

220

250

280

280

280

Winding machine

Automatic winding machine /Semi-automatic winding machine

Screen Changer

Automatic/Manua

Production capacity 24H

2.5-3T

6-7T

8-9T

10-11T

12-13T

13--14T

Features of PP equipment:

It has the characteristics of high efficiency, flexibility, environmental protection, and durability. The use of advanced technology can quickly complete the packaging, the PP strap can adjust the length and width to adapt to different items, and the PP strap itself can be recycled and reused. The equipment is made of high-quality materials and has strong durability.

Energy saving and environmental protection, saving more than 40% of electricity

Strong production capacity, more than 50% of early production,

PP packing strap making machine twin screw sandwich PP strapping production line high speed PP strap equipmentt

PLC control----

Adopting PLC control system, unique built-in memory parameters, the same product does not need to be debugged multiple times.

Services :

Technical Support and Service for pp strapping strap making machine

We offer a wide range of technical support and services for our pp strapping strap making machine products, including:

  • Installation and commissioning of the extrusion line.
  • Operational and maintenance training.
  • Consultation and advice.
  • Technical support.
  • Spare parts supply.
  • Regular maintenance.
  • On-site repair and maintenance.
