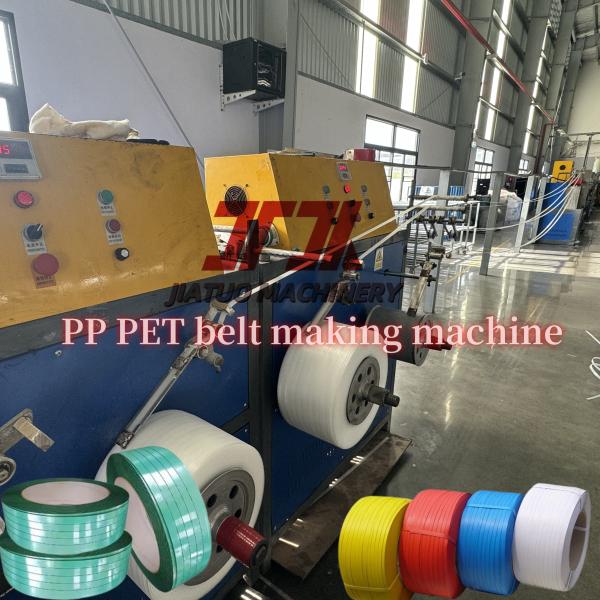

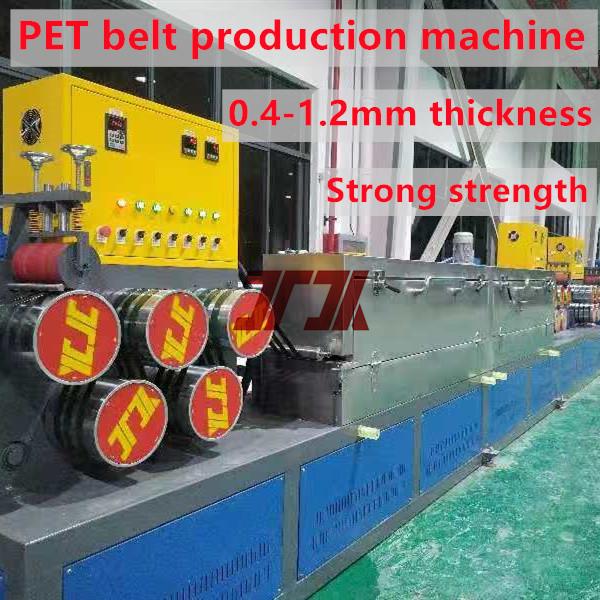

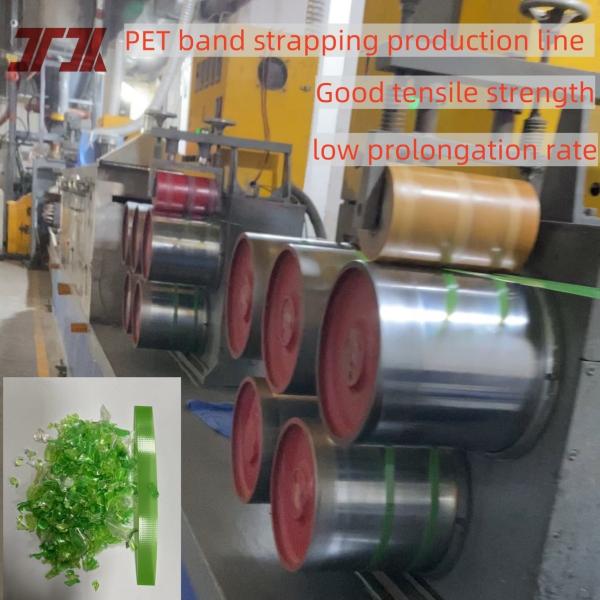

350-950kg/H Pet Plastic Packing Strap Production Line Pet Strapping Machinery With PLC Control System

Process flow of PET belt production line

1. Feeding to → 2.mixing raw materials→ 3. pre-drying→ 4. Vacuum dehumidification of raw materials→ 5. raw materials melting extrusion→ 6. material embryo expression(with embryo) cooling molding → 7.preheat the oven→ 8. firstly stretching → 9. secondly streching → 10. embossing → 11. tempering oven→ 12. cooling → 13.winding to finished product

Technical parameters of PET belt 4output production line

Advantags of PET strap making machine

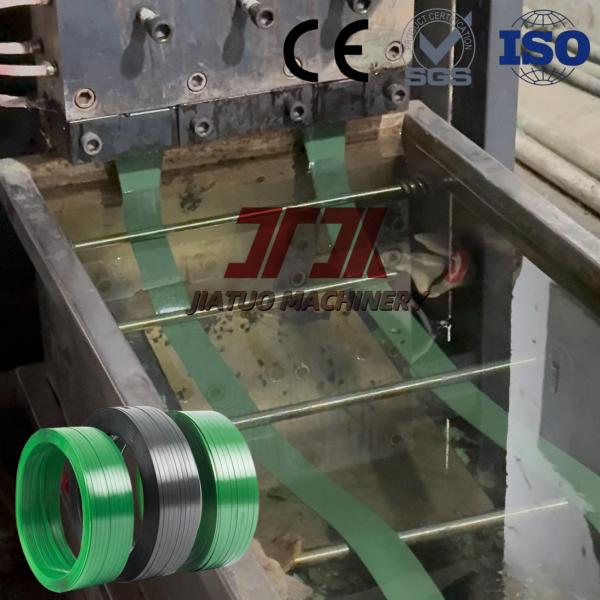

1. Sustainable Material Processing – Uses 100% recycled PET (from post-consumer waste) for eco-friendly, circular production.
2. Precision Extrusion Control – Fully automated PLC system ensures uniform plasticization and stable extrusion, guaranteeing consistent strap quality.
3. Customizable Coatings – Optional surface treatments to enhance performance (e.g., higher breaking strength, improved weld joint integrity for cotton bale strapping).
4. Self-Cleaning Melt Filtration – Dual-piston filter with automatic venting and back-flushing eliminates impurities, ensuring uninterrupted 24/7 operation.
5. Minimal Labor Requirements – Highly automated design enables continuous production with just 1–2 operators per shift.

Application of PET strapping

1. Heavy-Duty Industrial Packing
Steel & Metal Industry – Securing steel coils, pipes, and metal profiles.
Building Materials – Bundling bricks, tiles, and construction rods.
Timber & Wood – Palletizing lumber and plywood.
2. Logistics & Warehousing
Pallet Stabilization – Reinforcing boxes and loads for transport.
Container Securing – Preventing cargo shifts during shipping.
3. Agricultural & Textile Packing
Cotton & Wool Bales – High joint strength for compression bundling.
Hay & Crop Bundles – UV-resistant for outdoor storage.

Why PET?

✔ Higher tensile strength than PP straps
✔ Resists moisture, chemicals, and extreme temperatures
✔ Maintains tension longer (low elongation)
✔ Recyclable & eco-friendly

FAQ

For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.41.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw/400kw;
* What about the maximum tensile strength of the strap? 12000N (25*1.2mm);
* What about the running speed of strap? <120m/min;
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
* Will the strap be used for automatic strapping tool or manual tool? Both.
