Specifications
Brand Name :
JT
Model Number :
JT-PET
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD10000.00-125000.00
Payment Terms :
L/C, T/T, D/P
Supply Ability :
50set
Delivery Time :
30~55 working days
Packaging Details :
PE film or paper packaging
Name :
pet strapping band making machine
Width :
9-32mm
Thickness :
0.6-1.2mm
Raw material :
100% PET bottle flakes
Metering pump :
100 CC
Control system :
PLC control
Winding machin :
Automatic/Semi-automatic
Stretching ratio :
1-10 times
Description

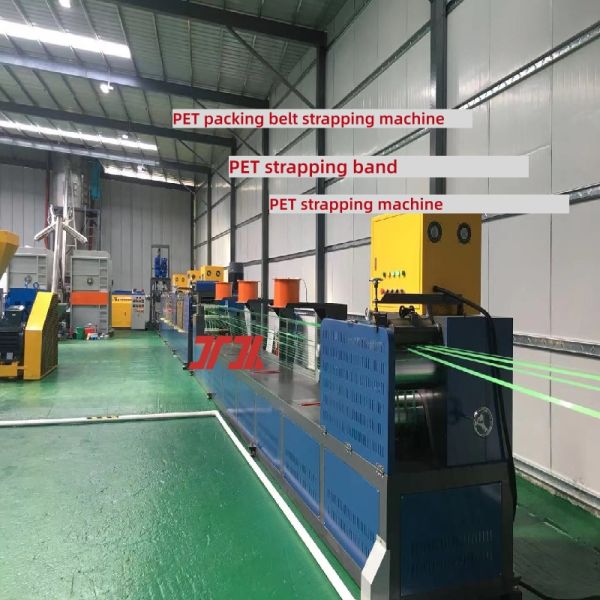

9-25mm pet strapping band making machine PET strapping making machine pet strap manufacturing machine

PRODUCT DESCRIPTION OF PET STRAP MANUFACTURING MACHINE:

PET strapping band making machine /PET strapping making machine/pet strap manufacturing machine

PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:

Features :

1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.

EXTRUSION PARAMETERS TABLE

Model PET-2 PET-3 PET-4 PET-6 PET-8
Raw materials Bottle flakes/crushed materials
Number of tapes 2 3 4 6 8
Width (mm) 9-32
Thickness (mm) 0.4-1.2
Maximum line speed(m/min) ≧150 ≧150 ≧150 ≧150 ≧150
Screw Model 90 100 125 150 180
Reducer model 200 250 280 315 350
Dehumidifier 1000 1000 2000 3000 3500
Metering Pumps 100CC
Production capacity /24 H 5-6T 7-8T 10-12T 12-15T 18-20T

9-25mm pet strapping band making machine PET strapping making machine pet strap manufacturing machine

ADVANTAGE:

Environmental protection ------ steel straps will rust when exposed to the air, and rust is highly permeable to packaging. PET strapping is beautiful and rust-free, eliminating unnecessary worries. It can also be recycled.

Good flexibility ------ safe operation: PET strapping does not have the sharp edges of steel straps, will not scratch packaging, and will not hurt your hands. No special tools are required for cutting, and even if it is very tight, it will not hurt your hands when cutting.

High-quality products ------- PET strapping has different colors, bright luster, and excellent quality. It is the most ideal packaging product for high-end packaging

9-25mm pet strapping band making machine PET strapping making machine pet strap manufacturing machine

ABOUT US:

We have nearly 30 years of production experience in the production of PP PET strapping equipment. We have our own production workshop, processing center, high-precision imported lathes, sales team, after-sales team, management team, etc.; including we currently also produce PP strapping, PET plastic steel strapping, etc., so we are very clear about the process details, the formula ratio of raw materials, and the addition ratio of various auxiliary materials;

We are the agent for the sale of various automatic strapping machines, semi-automatic strapping machines, handheld strapping machines, pneumatic strapping machines, etc., so we are clear about the requirements of different strapping machines for strapping;

We currently have 3 factories:

PP PET strapping equipment factory: 1PCS

PET plastic steel strapping factory: 1PCS

PP strapping factory: 1PCS

FAQ:

Q: What is the voltage of the PET strapping band making machine?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET strapping band making machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET strapping band making machine?

A: 9-32mm

Q: Can the PET strapping band making machine be customized?

A: Customization supported

Q: Where does the PET strapping band making machine come from?

A: China.

Q: What are the certifications for the PET strapping band making machine?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET strapping band making machine?

A: 1 set

Q: What is the weight of the PET strapping band making machine?

20T, 40GP container * 3PCS
