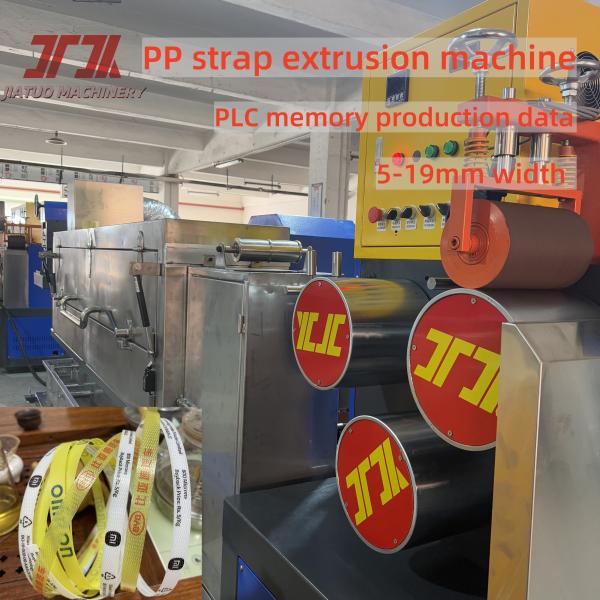

5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPP-110/75
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50-60days
Packaging Details :
Plastic film
Number of strap :
2/4/6/8/10/12 straps
Thickness(mm) :
0.3-1.2mm
Width :
5-19mm
Production capacity :
230-260Kg/h
Screen changer :
Automatic or Manual
Screw model :
110/75mm
Production material :
PP Recycled Material
Screw design :
Double-screw 110mm 75mm
Motor :
GUGAO
Inverter :
INVT
Control systems :
PLC Chinese/English control system
Warranty :
1 years
Final production :
PP core-spun packing belt (2 mould for 2 straps)
Total install power :
80kw, (actual power consumption is 40-50%)
Application :
Ceramics, furniture, cartons
Description

5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture

Description of PP Sandwich belt band production machine

PP Sandwich belt making machine is mainly composed of the main machine + auxiliary unit, 2 feeder, 2 material barrels, other parts are the same, sandwich belt is mainly used in ceramics factory more, the so-called sandwich belt, is the outer layer is good material, the inner layer is wrapped with bad material.

For our double screw PP strap making machine is more function. it can use for make one-layer strapping and double-layer strapping to meet clients' demands.

General parameter of PP strap making machine

1MaterialsPET CRUSHED MATETIAL / bottle flakes material /virgin material
2ProductPET strap (1 mould for 2straps)
3Capacity200-225kg/H
4Total install power100kw, (actual power consumption is 40-50%)
5Strap width9mm-32 mm
6Thickness0.4 mm-1.2 mm
7Manpower2person/shift
8Workshop requiredL (50m) ×W (4m) ×H (8m)
9Power source380V, 50Hz, 3Phase (according to customer requirement)
10Electric componentsSchneider
11InverterINVT
12SwitchesFotek
13Motor powerGUGAO


Advantages of Polypropylene strap production machine

PLC Control with Multi-Spec Storage

Equipped with a PLC system supporting up to 99 specifications, suitable for continuous production with frequent changeovers. Maintains process consistency across strap widths (5–19 mm) and thicknesses (0.3–1.2 mm).

Non-Stop Screen Changing and Stable Winding

The automatic screen changer enables mesh replacement without stopping production, reducing downtime.
The constant-force winding system ensures neat rolls, compatible with automatic and semi-automatic packaging machines.

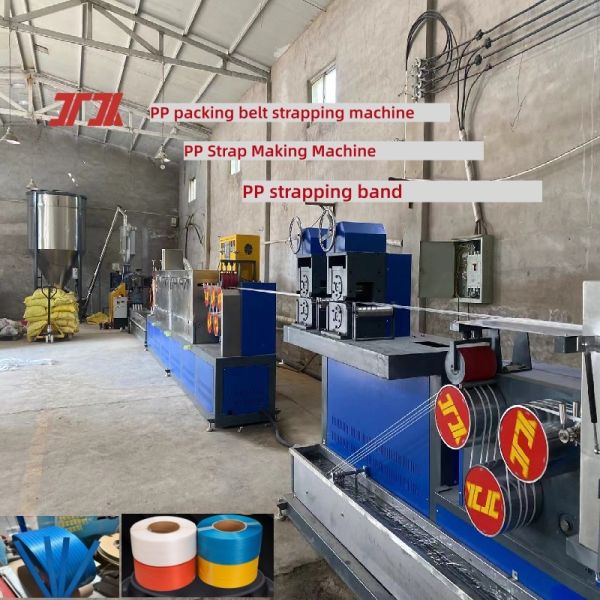

Process flow of PP packing belt production line

① Feeding →② mixing material→③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding

Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.

5-19mm Width PP Sandwich Strap Making Machine Use For Ceramics Furniture
FAQ

  • Q: What voltage is applicable?
    A: Customizable according to different countries, such as 380V/50Hz, 415V/50Hz, 220V/60Hz, etc.
  • Q: Do you provide installation and training?

    A: Yes, we provide overseas installation, commissioning, and operator training.

    Q: Can 100% recycled material be used?

    A: Yes, but the strength will decrease. It is recommended to mix with new material or use for inner layer of sandwich strap.
