Specifications
Brand Name :
JIATUO machinery
Model Number :
JTPET-90
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Delivery Time :
30-40days
Packaging Details :
plastic film
Strap Thickness :
0.4-1.2mm
Model :
100*2900mm
Voltage :
380V/50HZ (customized)
Raw material :
PET Bottle Flake Material, 100% Broken Material
Winding method :
Manual/automatic
Total power :
250KW(Power For Operation:120-120KW)
Power :
45KW
Strap Width :
9-32mm
Capacity :
220-250kg/H
Pull :
350-950kg
Description

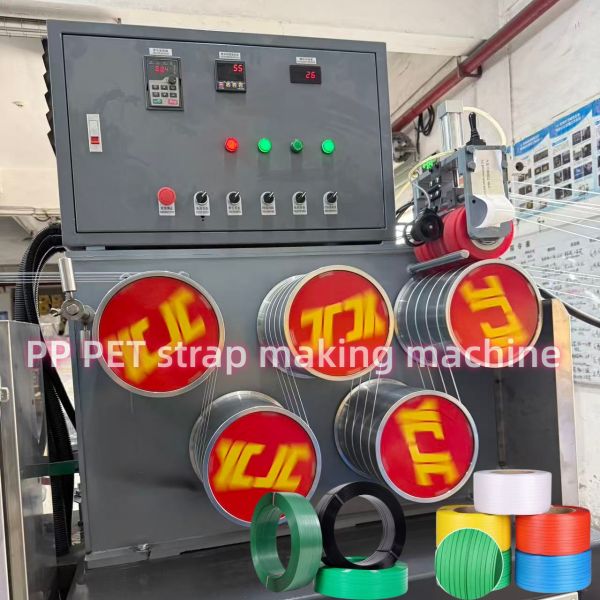

Automatic Pet Polyester Packing Strapping Belt Band Making Machine With 4000L Pre-Drying Barrel

What is PET Strapping?

PET Strapping (often called Polyester Strapping) is a strong, durable plastic band used for bundling, palletizing, and securing heavy loads for shipping and storage.

Think of it as a modern, high-performance alternative to traditional steel strapping and older plastic strapping (like polypropylene).

Technical parameters of PET belt 2output production line

Raw material PET granules or PET recycled material
Width of final product 9-32mm
thickness of final product 0.4-1.2mm
Max Capacity 220-250kg/h
Manpower 1-2 persons/shift
Machine Dimension 55*2*8m
BRANDS
Gearbox: GUOMAO
Contactor: GUGAO
Temperature controller Fotek
Inverter INVT

PET 2straps output Machine general introduction
1. raw material: PET bottle flakes , and new PET granules , recycled PET granules
2. controlling: automatic PLC memory control system
3. winder: we have semi automatic and full automatic two kinds of winders.
4. machine capacity : 220-250kg per hour for 2 straps output. we have different capacity for your choose.
5. filter system: We use synthetic fiber filters, which have a filtration area of ​​up to 3.5 square meters, greatly improving production efficiency.

Automatic Pet Polyester Packing Strapping Belt Band Making Machine With 4000L Pre-Drying Barrel

Why PET strapping So Popular? Main Advantages


High Tensile Strength & Durability: It's significantly stronger than polypropylene strapping and rivals the strength of light to medium-duty steel strapping.

Elastic Recovery (Memory): This is its killer feature. PET strapping can stretch under tension (typically 2-3%) and then recoils slightly to maintain tension on a load. This is crucial when pallets settle or shift during transit, as the strap stays tight. Steel strapping does not do this.

Moisture & UV Resistance: Unlike steel, it will not rust. It's also more resistant to moisture and sunlight than polypropylene, making it suitable for outdoor storage and export.

Safer & User-Friendly:

Safer to Handle: No sharp edges like steel strapping.

Lighter Weight: Easier to carry and use, reducing operator fatigue.

Easy to Dispose/Cut: Can be cut with standard tools without creating dangerous wire ends.

Cost-Effective: While sometimes more expensive per roll than polypropylene, its strength often means you can use a lighter, cheaper grade to achieve the same job. It eliminates the costs associated with rust damage to products.

Recyclable: As a #1 plastic, it fits into growing corporate sustainability and recycling programs.

Automatic Pet Polyester Packing Strapping Belt Band Making Machine With 4000L Pre-Drying Barrel

FAQ

1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.


2. Do you have quality certificate?
Yes we have CE, SGS etc.


3. What's the delivery time?
Around 40~50days, however, based on order.

4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment

Automatic Pet Polyester Packing Strapping Belt Band Making Machine With 4000L Pre-Drying Barrel
