5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing
Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPP-110
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
D/A,L/C,D/P,Western Union,T/T,MoneyGram
Supply Ability :
15sets/month
Delivery Time :
30-40days
Packaging Details :
plastic film
Strap Color :
Single/Multi-Color
Name :
PP Strap Making Machine
Warranty :
1 Year
Strap Thickness :
0.4-1.2mm
Strap Tension :
Adjustable
Motor :
GUGAO
Strap Speed :
>250m/min
Strap Core Type :
Paper/Plastic
Inverter :
INVT
Extruder :
single screw extruder
Description

5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing


Parameters of JIATUO PP belt making machine


Type

JTPP-90

JTPP-100

JTPP-110

JTPP-125

JTPP-135

JTPP-90/65

JTPP110/75

Strap of number

2

3

4

6

8

2

Sandwich belt

4

Sandwich belt

width

5-19mm

5-19mm

5-19mm

9-19mm

9-19mm

9-19mm

9-19mm

Thickness

0.4-1.2mm

Reducer mode

200

200

225

250

280

200/173

225/173

Screen changer

Automatic/ Manual

Production capacity

80-120kg/H

180-200kg/H

220-250kg/H

350-370kg/H

460-500kg/H

80-120kg/H

180-200kg/H

Screw type

Single screw

Double screw

Technical specification of PP 4straps output machine

Name

PP strap production line

Place of origin

SHENZHEN,China

Certification

ISO9001-2000;CE;SGS

Raw material

PP new raw material; PP recycled material

Output

230-260Kg/h

Product width

5-19mm

Machine size

L35m*W2M*H4M

Teducer

GUOMAO

Inverter

INVT

Temperature controller

FOTEK

Advantage of JIATUO PP strap making machine

Technical and Quality Advantages
Consistent Quality Control: You have direct control over the entire production process (extrusion, orientation, cooling). This allows you to ensure consistent tensile strength, break elongation, and quality, reducing the risk of faulty external supplies.

Integrated Printing (Optional): Many production lines come with or can be equipped with online printers. This allows you to print logos, text, or barcodes directly onto the strap as it's being made, adding value and traceability.

Environmental Advantages
Reduced Carbon Footprint: Eliminates the transportation required to ship finished straps from a distant factory.

Waste Minimization: As mentioned, the ability to recycle in-house production scrap significantly reduces plastic waste.


Auxiliary equipment of JIATUO PP strap production line


Standard mixed barrel

This barrel can mixing the material more uniform. It have 2T/3T/4T/6T for choose.

The time required for adding materials was reduced, significantly improving production efficiency.


5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing

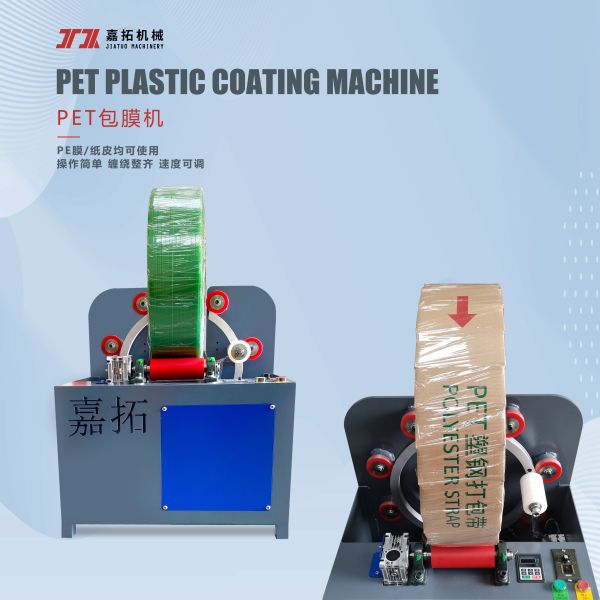

Film kraft wrapping machine

Use to packing the final strap roll, easy to operation and efficiency.


5-19mm New Polypropylene PP Packaging Strap Band Making Machine With Online Printing

FAQ


Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.


Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.


Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.


Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
