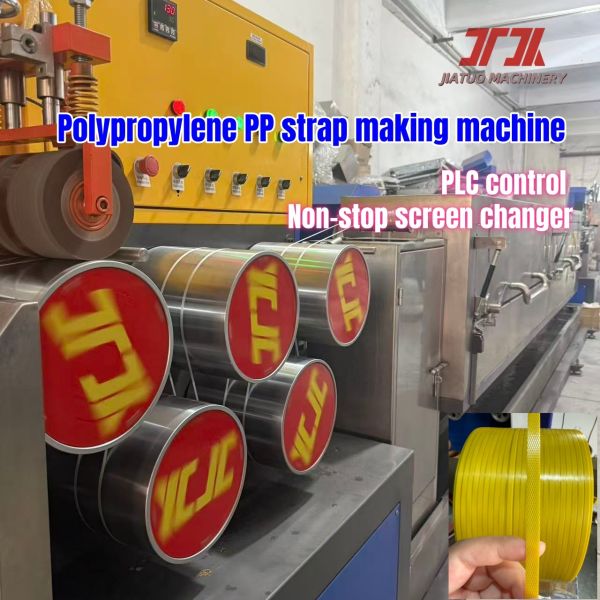

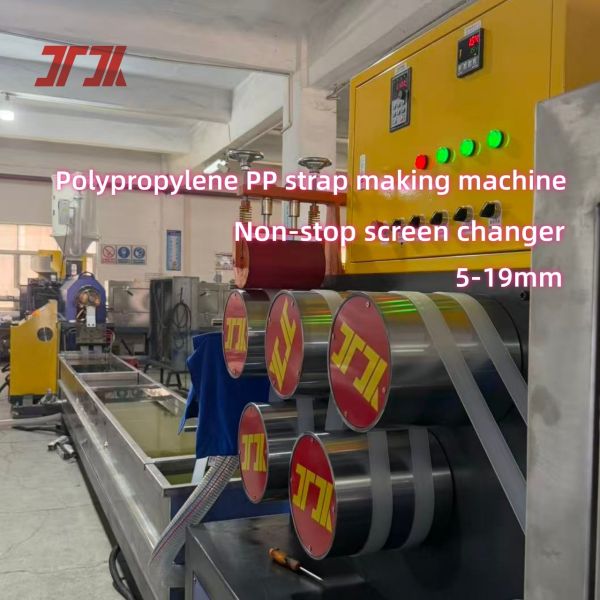

5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
Specifications
Strap Width :
5-19mm
Model Number :
JTPP-100
Strap Thickness :
0.4-1.2mm
Brand Name :
JIATUO CHINA
Screw diameter (mm) :
100mm
Winding machine :
Fully-automatic / semi-automatic
MOQ :
1 SET
Delivery Time :
30-40days
Screen changer :
automatic
Payment Terms :
L/C,T/T
Strapping grade :
fully automatic/ manual/ semi-automatic
Supply Ability :
50sets/month
Applicable raw materials :
Recycled Material And Polypropylene
Price :
Negotiable
Power Consumption :
80KW
Place of Origin :
CHINA
PLC control :
yes
Packaging Details :
plastic film
Warranty :
1 Year
Certification :
IS CEO
Description
5-19mm PP Strapping Band Production Extrusion Line with PLC Control
Technical Specifications
Parameter Specification
Materials Polypropylene PP raw material pellets, recycled pellets
Product PP strap (1 mould for 2 straps output)
Capacity 100-120kg/h
Total Install Power 80kw (actual power consumption 40-50%)
Strap Width 5mm-19mm
Thickness 0.4mm-1.2mm
Manpower 2 persons/shift
Workshop Required L (30m) × W (2m) × H (4m)
Power Source 380V, 50Hz, 3Phase (according to customer requirement)
Electric Components Schneider
Inverter INVT
Switches Fotek
Motor Power GUGAO
Production Process Flow
Raw Materials → Pre-drying and Stirring → Melting Raw Materials → Non-stop Screen Changer → Extrusion → Cooling and Forming → Oven Heating and Shaping → First Stretching → Printing (Optional) → Embossed → Oven Tempering and Shaping → Water Tank Cooling → Winding Final PP Strapping
Key Advantages
  • Supports virgin and recycled PP raw materials
  • Brand premium precision screw with customized parameters for high output and superior wear resistance
  • High-precision die head produces straps with uniform width & thickness within tiny tolerance
  • Non-stop screen changer with four circulating plates offers large filtration area
Application Areas
  • Textile and Clothing Industry: Bundling fabrics, garments and textile rolls
  • Electronics and Appliance Industry: Strapping household appliances, electronic components and equipment
  • Agricultural Product Packaging: Used for bundling grain, feed, hay and other agricultural products
5-19mm PP Strapping Band Production Line with PLC Control for Recycled Material
Our Services
Before Order: Technical consultation and company visit arrangements
During Order: Custom installation design and detailed equipment specifications
After Equipment Arrival: On-site installation, debugging, and comprehensive training
After Order: 12 months free after-sales service with lifelong support
Frequently Asked Questions
What about the output of PP strapping band extrusion line?
150kg/hr, 250kg/hr, 350kg/hr, 500kg/hr
What about the size of strap that the PP strap machine can make?
Width: 5-32mm; Thickness: 0.4-1.2mm
What about the installation power of the PP strap machine?
90kw/120kw/150kw/250kw
What about the maximum tensile strength of the strap?
Depends on the material used
What about the running speed of machine?
200-300m/min
What about the usage of PP strap?
Packing boxes, money, paper
Will the strap be used for automatic strapping tool or manual tool?
Both
