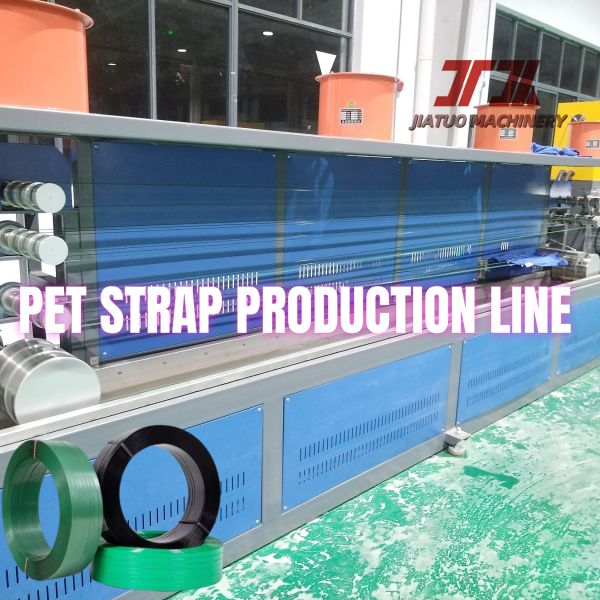

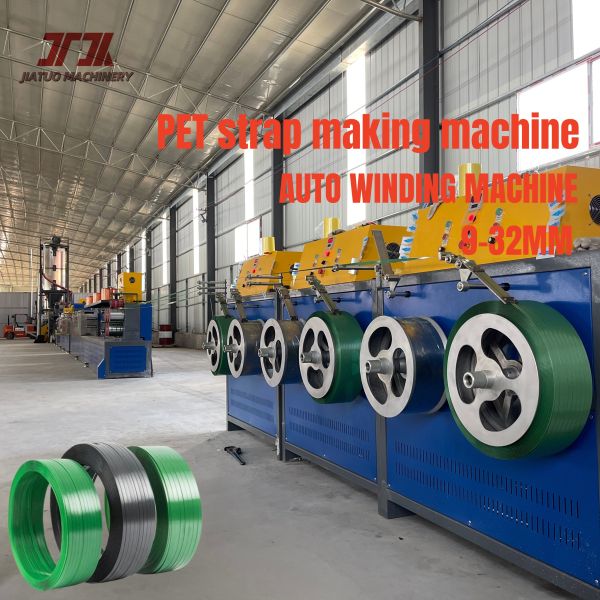

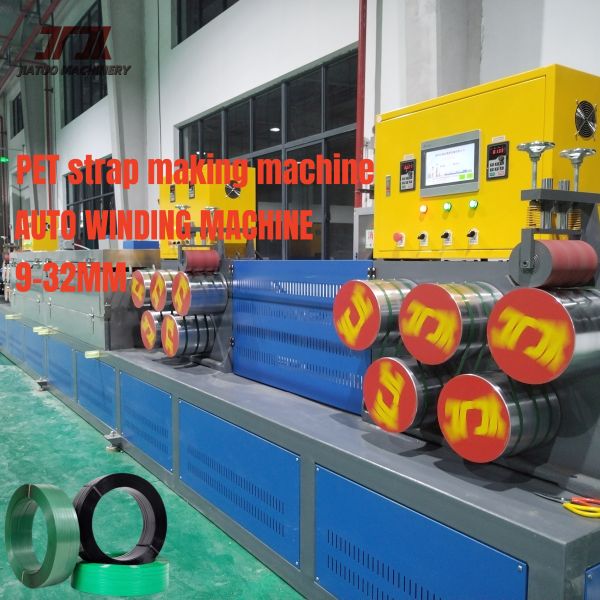

9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder
Specifications
Model Number :
JTPET-90
Voltage :
380V 50HZ 3Phase(Customized)
Brand Name :
JIATUO CHINA
Error of width :
Within 0.4mm
MOQ :
1 SET
Delivery Time :
30-40days
Strap Speed :
>150m/min
Payment Terms :
L/C,D/A,D/P,T/T
Strap Width :
9-32mm
Strap Tension :
150-850kg
Supply Ability :
50sets/month
Product Name :
PET Strap Making Machine
Price :
Negotiable
Motor :
GUGAO Brand
Packaging Details :
plastic film
Strap of thickness :
within 0.04mm
Certification :
IS CEO
Place of Origin :
CHINA
Origin :
Shenzhen China
Description

9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder


Understand about PET packing belt


PET strapping is made of polyester, featuring ultra-high tensile strength and rust-free property. It serves as an ideal replacement for steel straps for heavy-duty bundling.
Compared with PP strapping, PET has stronger tension and better elongation recovery, perfect for bricks, lumber, metal and pallet heavy loads. It resists weather and sharp goods abrasion without scratching products.


Raw material: PET crushed material/ PET original flakes/ PET bottle flakes material
Products model:
Width: 9mm-32mm
Thickness: 0.6mm-1.2mm
Capacity: depend on different type

Total power: 120kw-160kw (380V, 50Hz)


Specification of PET strap production line


Model PET-2 PET-3 PET-4 PET-6
Production materials Bottle flakes / broken material
Number of lines 2 3 4 6
Outgoing bandwidth(mm) 9-32 9-32 9-32 9-32
Outlet thickness(mm) 0.6-1.2 0.4-1.2 0.4-1.2 0.4-1.2
Control sytem PLC control
Screw model 90 100 125 150
Reducer model 200 250 280 315
Horizontal mixer 2500L 2500L 5000L 5000L
Drying tower 3000L 4000L 5000L 6000L
Host barrel 3000L 4000L 5000L 6000L
Production capacity/ 24H 4.8T 8T 10T 15T


Process flow of PET strap making machine


  • Feeding
  • Raw material mixing
  • Pre-drying of raw materials
  • Vacuum dehumidification of raw materials
  • Melting, metering and extrusion
  • Cooling & forming of strap blank
  • Oven preheating
  • First stretching
  • Second stretching
  • Embossing
  • Oven tempering & setting
  • Cooling
  • Finished product winding


Feature of PET strap production line


Multiple Options: Custom width, thickness, tension & color available
Circulating Oven Heating: Minimizes heat loss for energy efficiency
Circulation Cooling: Full forming for stable, precise straps
Five-Roller Traction: Smooth running, maintenance costs cut by 60%

Application of PET strapping

1. Pallet bundling & unitization

Secure medium and heavy palletized goods (cartons, boxes, bags) for warehousing and transit.

2. Logistics & shipping consolidation

Prevent load shifting during road, rail, or sea transport.

3. Steel, metal & aluminum products

Bundle steel pipes, profiles, sheets, ingots; replace steel strapping.

4. Timber & wood products

Lumber, plywood, boards, wooden crates.

9-32MM PET Steel Strapping Production Machine With PLC Control And Automatic Winder

FAQ


Can the line run stably with recycled materials?

Yes. Our screw, barrel and filtration system are specially designed for recycled PET flakes, ensuring stable output.

Do you provide formula and technology?

Yes. We offer complete production technology, raw material ratio, operation manual and on-site training.

What is the lead time of the machine?

Normally 30–45 days after deposit, depending on machine configuration and production schedule.
