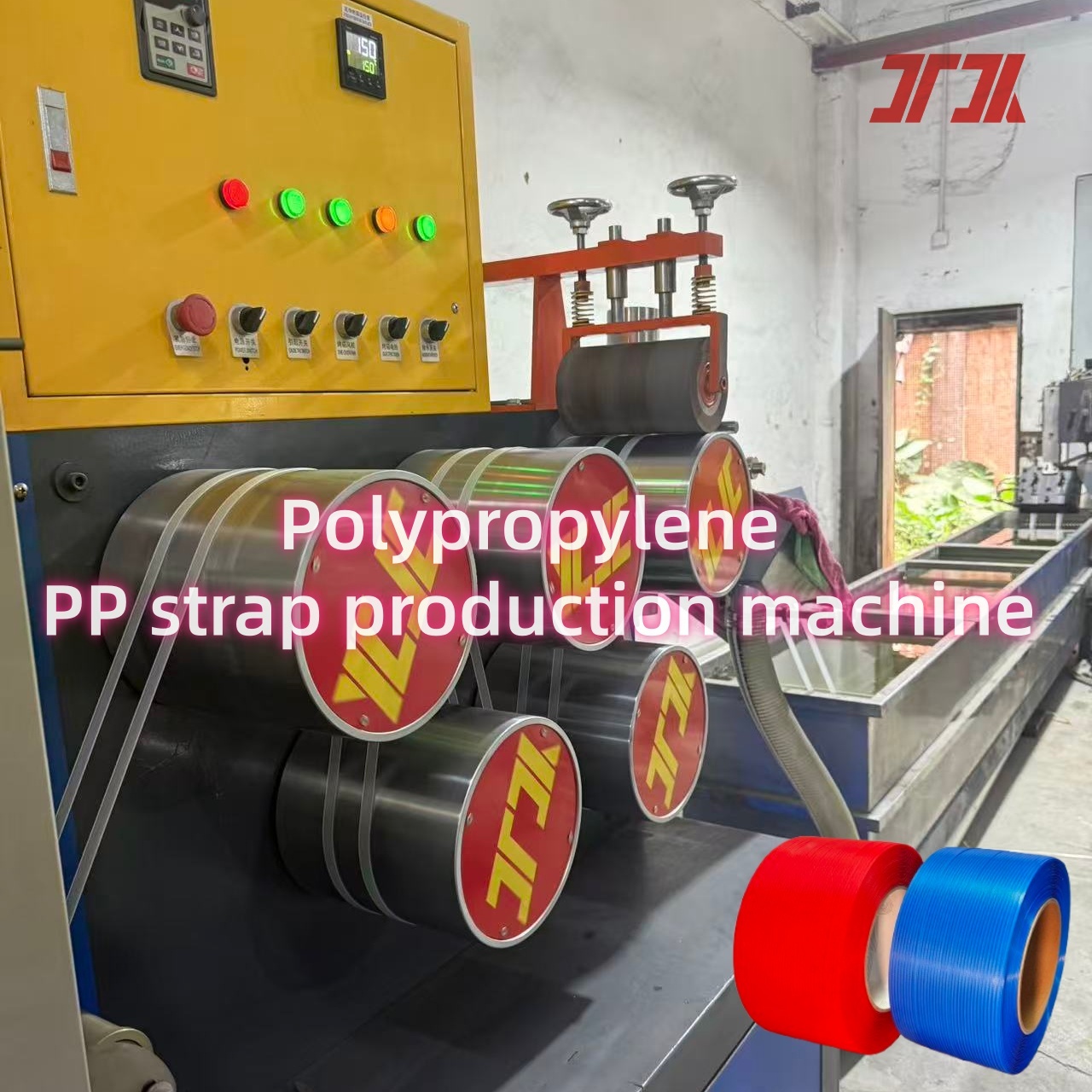

Six Strap PP Strap Production Line 350-380kg/h Recycled Pp Extrusion Line With GUGAO Motor
Product Overview
High-output six-strap PP strap production line delivering 350-380kg/h of recycled PP strapping band. This system runs on virgin or 100% recycled PP pellets, driven by a GUGAO motor with CE certified control cabinet. Produces 5-19mm width and 0.4-1.2mm thickness straps with stable tensile strength and jamming-free coiling for logistics, food, textile, construction and agriculture bundling.
Lightweight yet sturdy, the strapping band features high tensile strength, good flexibility and anti-break performance, effectively securing cartons, bulk goods and pallet loads for long-distance transportation. Custom sizes, thicknesses and colors are available upon request.
Technical Specifications
| Type |
JTPP-90 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
| Strap Number |
2 |
4 |
6 |
8 |
| Width |
5-19mm |
5-19mm |
5-19mm |
5-19mm |
| Thickness |
0.4-1.2mm |
| Line Speed |
150-300m/min |
| Screen Changer |
Automatic / Non-stop |
| Production Capacity |
100-125kg/H |
230-260kg/H |
350-380kg/H |
450-480kg/H |
| Screw Type |
Single screw |
| Motor Brand |
GUGAO |
| Certification |
CE / ISO 9001 |
Raw Material: Works with virgin or 100% recycled PP pellets / regrind, low production cost & high market demand.
Multi-Strand Output: Six-strap simultaneous extrusion boosts unit capacity and shortens investment payback.
Motor & Drive: GUGAO motor and inverter deliver stable torque, low noise and easy maintenance.
Coiling: Automatic winding / coiling system keeps straps neatly rolled, cutting labor cost.
Certification: CE certified and ISO 9001 factory, ready for EU and global import requirements.
Key Advantages
- PP raw material needs no separate drying or water treatment; automatic preheating and drying circulation saves equipment investment and reduces production cost by about 30%.
- Supports 100% recycled bottle flakes / PP regrind as raw material, greatly lowering material cost.
- Uses 100% PP polypropylene raw material; with an adjustable die it produces 12-19mm straps directly, while 5-11mm specifications are produced with a separate fixed mold.
- Low energy consumption with high production capacity.
- Easy to operate and low labor cost: only about two workers are needed per production line.
- Fully automatic non-stop screen changer and automatic winder keep output continuous and stable.
- Wears-resistant nitriding screw and precise calibration ensure stable strap quality and long service life.
Applications
The PP strapping bands produced by our line are widely used for packaging, bundling and securing goods across multiple industries, including:
- Logistics & Shipping: Bundling cartons, pallets and containers to prevent in-transit shifting.
- Building Materials: Packaging steel coils, aluminum profiles, cement bags and ceramic tiles.
- Agriculture: Bundling straw, hay bales and agricultural products.
- Food & Beverage: Packaging bottled goods, canned foods and food cartons (food-grade compliant).
- Electronics & Appliances: Bundling electronic components, household appliances and hardware.
- Textile & Clothing: Packaging fabric rolls, clothing batches and textile products.
Frequently Asked Questions
What is the voltage of the PP strap production line?
380V/50Hz standard, customization available for 220V/415V/440V and 60Hz.
Can it use 100% recycled PP material?
Yes, the line is designed to run virgin or 100% recycled PP pellets / regrind with stable output.
Do you provide overseas after-sales service?
Yes, our engineers provide overseas installation and 24-hour online guidance.
Is the machine CE certified?
Yes, CE certified and produced in an ISO 9001 factory.
Where is the machine produced?
We are from Shenzhen, China.
Can the capacity and strap size be customized?
Yes, model size, extrusion capacity, strap width and voltage can be customized to your factory.
