Specifications
Supply Ability :
50set/month
Power :
45KW
Brand Name :
JIATUO machinery
Strap Width :
9-32mm
Pull :
350-950kg
Model Number :
JTPET-90
Strap Thickness :
0.6-1.2mm
MOQ :
1 SET
Delivery Time :
30-40days
Total power :
250KW(Power For Operation:120-120KW)
Payment Terms :
L/C,D/A,D/P,T/T
Raw material :
PET Bottle Flake Material, 100% Broken Material
Capacity :
220-250kg/H as customer require
Price :
Negotiable
Winding method :
Manual/automatic
Model :
100*2900mm
Certification :
IS CEO
Packaging Details :
plastic film
Place of Origin :
CHINA
Voltage :
380V/50HZ (customized)
Description

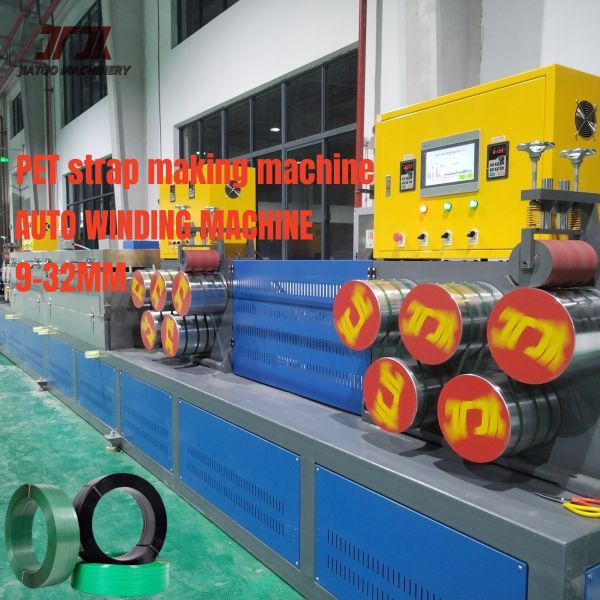

Fully Automatic PET Strapping Band Production Line Recycled PET Bottle Flakes Available


Description of PET strap making machine


PET strapping band production line is fully PLC-controlled extrusion equipment to manufacture high-tensile PET plastic steel strap. It works with virgin PET pellets and recycled PET bottle flakes. The complete line covers feeding, crystallization drying, extrusion, melt filtration, cooling, stretching, embossing, heat setting and automatic winding. PET strap can replace steel strap for heavy pallet packaging. Multiple configurations (2/4 straps output) are available, compatible with hand tools, semi-auto and full-auto strapping machines.


Technical parameters of PET strap production line


Model Capcity (kg/h) Strap Size Power(kw) Manpower
JT-PET90 220-250KG/H 9-32mm 85 1-2
JT-PET110 300-330KG/H 9-32mm 100 1-2
JT-PET125 400-450KG/H 9-32mm 110 1-2
JT-PET130 480-500KG/H 9-32mm 200 1-2


Running process of JIATUO PET strap making machine

Mixing material →pre-drying material→dehumidification material→filter material → extension →cooling→ first streching → second streching → embossing→shaping→cooling→winding

Feartures of PET strap production line

  • Supports virgin PET crushed material, PET bottle flakes and virgin material.
  • PLC touchscreen control; real-time temperature, pressure and speed monitoring
  • Melt pump & precision die maintain stable strap width and thickness tolerance
  • Stainless steel cooling tank for smooth strap surface
  • Multi-stage stretching boosts tensile strength and lowers elongation
  • Optional embossing rollers for improved friction and joint strength
  • Semi-auto / fully automatic dual-station winder with auto reel change
  • Modular design; 2 or 4 straps output available


Advantages of JIATUO PET strap making machine


Cost-effective: runs with recycled PET crushed material to cut raw material cost; finished PET strap replaces steel strap.
Stable performance: high tensile strength, controlled elongation, rust-proof and chemical resistant, better than PP strap for heavy loads
High compatibility: straps fit hand strapping tools, semi-automatic and full-automatic strapping machines Continuous automatic production, less labor input
Eco-friendly: supports recycled material; no rust contamination on cargo, meets export environmental standards
Customizable: strap width, thickness, color and line capacity available

Fully Automatic PET Strapping Band Production Line Recycled PET Bottle Flakes Available

FAQ


1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.


2. Do you have quality certificate?
Yes we have CE, SGS etc.


3. What's the delivery time?
Around 40~50days, however, based on order.


4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
