Specifications
Model Number :
JTPET-90
Raw material :
PET Bottle Flake Material, 100% Broken Material
MOQ :
1 SET
Delivery Time :
30-40days
Capacity :
220-250kg/H as customer require
Pull :
350-950kg
Payment Terms :
L/C,D/A,D/P,T/T
Strap Thickness :
0.6-1.2mm
Price :
Negotiable
Total power :
250KW（Power For Operation：120-120KW）
Certification :
IS CEO
Winding method :
Manual/automatic
Supply Ability :
50set/month
Strap Width :
9-32mm
Brand Name :
JIATUO machinery
Power :
45KW
Place of Origin :
CHINA
Model :
100*2900mm
Packaging Details :
plastic film
Voltage :
380V/50HZ （customized）
Description
Fully Automatic PET Strapping Band Production Line with Recycled PET Bottle Flakes and 220-250kg/H Capacity
PET Strapping Band Production Line Overview

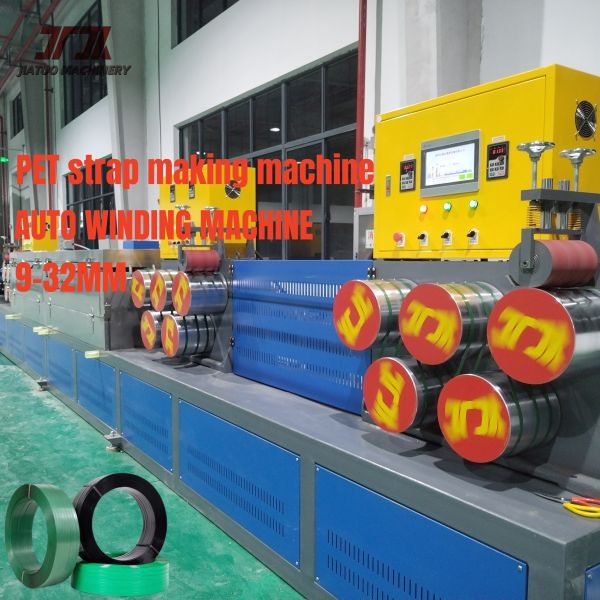

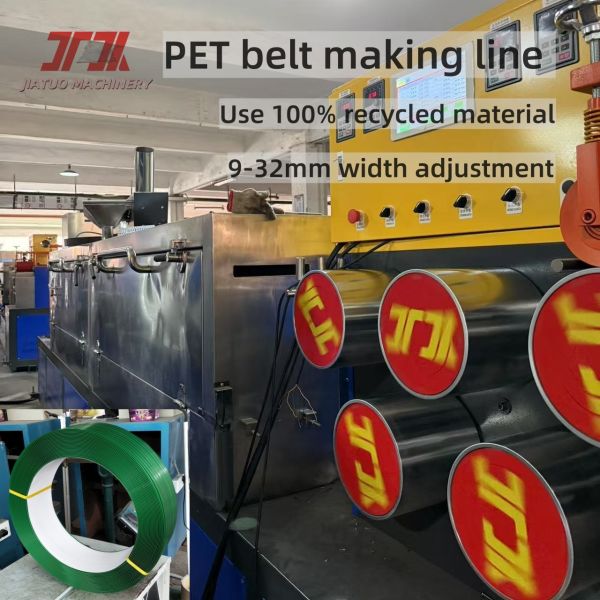

PET strapping band production line is fully PLC-controlled extrusion equipment to manufacture high-tensile PET plastic steel strap. It works with PET crushed material and recycled PET bottle flakes. The complete line covers feeding, crystallization drying, extrusion, melt filtration, cooling, stretching, embossing, heat setting and automatic winding. PET strap can replace steel strap for heavy pallet packaging. Multiple configurations (2/4 straps output) are available, compatible with hand tools, semi-auto and full-auto strapping machines.

Technical Parameters
Model of Machine Total Power Running Power Capacity
PET1-2 90MM 200KW 110-120KW 150-180KG/H
PET1-3 110MM 250KW 150-160KW 300-330KG/H
PET1-4 125MM 300KW 180-190KW 400-450KG/H
Production Process
  • Mixing material → pre-drying material → dehumidification material → filter material → extension → cooling → first stretching → second stretching → embossing → shaping → cooling → winding
Detailed Process Flow
  • Raw material feeding → dehumidifying drying
  • Melting and plasticizing in extruder
  • Melt filtration + metering pump for stable extrusion
  • Extrusion through die → rapid cooling in water tank
  • First haul-off → oven reheating
  • Multi-stage stretching (key step for high tensile strength)
  • Embossing (optional)
  • Heat setting to release internal stress
  • Secondary cooling
  • Automatic winding into finished strap coils
Key Advantages
  • Cost-effective: Runs with recycled PET crushed material to cut raw material cost; finished PET strap replaces steel strap.
  • Stable performance: High tensile strength, controlled elongation, rust-proof and chemical resistant, better than PP strap for heavy loads.
  • High compatibility: Straps fit hand strapping tools, semi-automatic and full-automatic strapping machines. Continuous automatic production, less labor input.
  • Eco-friendly: Supports recycled material; no rust contamination on cargo, meets export environmental standards.
  • Customizable: Strap width, thickness, color and line capacity available.
Applications
  • Building materials: Lumber, boards, stone, aluminum profiles, steel pipes
  • Paper industry: Paper rolls, carton bales
  • Glass & ceramic: Glass, tiles, ceramic products
  • Textile & chemical: Fiber bales, fertilizer, plastic raw materials
  • Metal products: Steel coils, castings, non-ferrous metals
  • Logistics & warehouse: Pallet goods for sea/land shipment
  • Other applications: Furniture, large home appliances, heavy e-commerce cargo
Fully Automatic PET Strapping Band Production Line with Recycled PET Bottle Flakes and 220-250kg/H Capacity Fully Automatic PET Strapping Band Production Line with Recycled PET Bottle Flakes and 220-250kg/H Capacity
Frequently Asked Questions
1. Are you trading company or manufacturer?
We are manufacturer, and also provide business solutions to all our partners.
2. Do you have quality certificate?
Yes, we have CE, SGS and other quality certifications.
3. What's the delivery time?
Approximately 40-50 days, depending on the specific order requirements.
4. What is your overseas service?
We provide high-quality overseas service. Our technical staff will provide technical support and can assist with overseas assembly and equipment testing.
Fully Automatic PET Strapping Band Production Line with Recycled PET Bottle Flakes and 220-250kg/H Capacity
