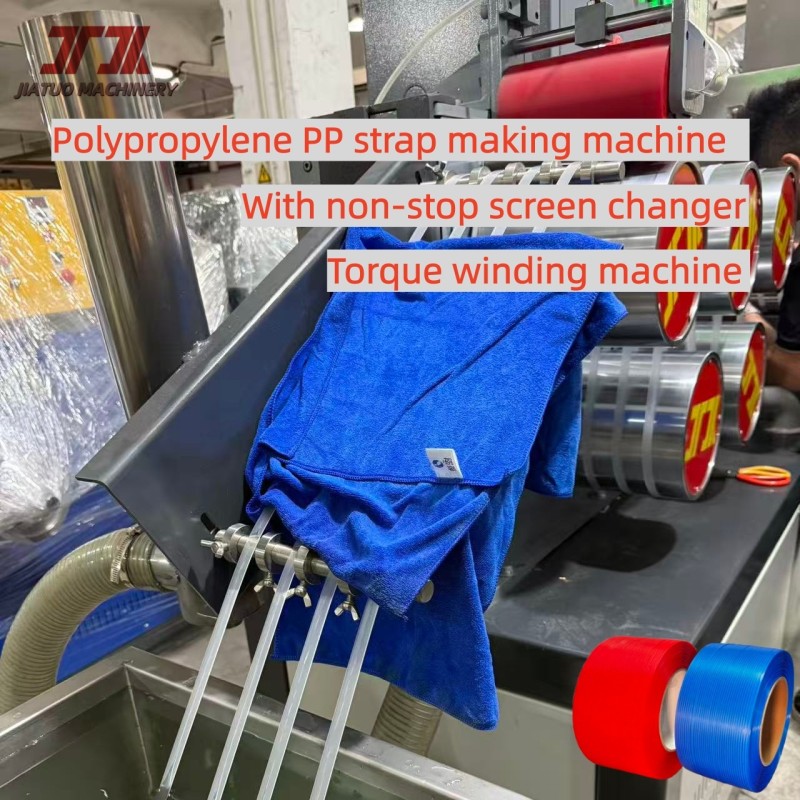

5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
Specifications
Model Number :
JTPP-90
Screen changer :
Automatic/Manual
MOQ :
1 SET
Delivery Time :
30-40days
Motor :
37KW(GUGAO)
Strap Tension :
Adjustable
Place of Origin :
CHINA
width :
5-19mm
Payment Terms :
L/C,D/A,D/P,T/T
Material :
PP recycled material/New raw material
Winder :
Double Station Winder
Price :
Negotiable
Strap Core Type :
Paper/Plastic
Supply Ability :
50sets/month
Warranty :
1 Year
Certification :
IS CEO
Screw :
Single screw / double screw
Thickness :
0.4-1.2mm
Brand Name :
JIATUO
Control system :
PLC Control System
Video outgoing-inspection :
Provided
Packaging Details :
plastic film
Description
5-19mm PP Strap Making Machine With Three Traction Device More Stable Customized
Product Overview

This PP strap making machine produces lightweight, rust-proof, flexible and economical polypropylene strapping for bundling cartons, books, and daily commodities. Compatible with automatic strapping machines and available in custom sizes and colors, it offers a cost-effective solution for light and medium package applications.

About PP Strapping Band

The fully automatic PP strapping band extrusion line is specially designed to produce polypropylene packing straps. The finished PP strap is flexible and low-cost, widely used for cartons, books, daily goods, and light pallet packaging. The line works with both virgin PP raw material and recycled PP granules, providing flexible production cost control.

Technical Parameters
Model Output Strap Quantity Strap Width Raw Material
JT-PP90 100-120Kg/h 2 straps 5-19 mm 100% PP recycled material & new raw material
JT-PP110 230-260Kg/h 4 straps 5-19 mm
JT-PP125 350-380Kg/h 6 straps 5-19 mm
Complete Line Composition
  • Single screw extruder
  • Material drying & feeding system
  • Mold head
  • Water cooling tank
  • Multi-roller traction & stretching machine
  • Annealing shaping unit
  • Automatic winding machine
Main Advantages
  • PLC automatic control, easy operation, saves labor cost
  • Accepts virgin PP & recycled PP particles, strong raw material adaptability
  • Adjustable strap width & thickness; supports custom colored straps
  • Stable extrusion, uniform strap tension, low reject rate
  • Low power consumption, continuous long-time running
  • On-site installation guidance & overseas engineer service
Applications

Packaging & Logistics

  • Carton strapping: Strengthen cartons to avoid splitting in transit
  • Pallet bundling: Stabilize stacked boxes & sacks on pallets
  • Long goods binding: Fasten pipes and elongated materials

Construction Materials

  • Brick & tile bundling: Convenient packing for bricks, tiles and blocks
  • Timber & scaffolding: Secure wooden boards and metal scaffold parts

Agriculture

  • Crop baling: Bundle hay, straw and agricultural waste
  • Feed & fertilizer sacks: Reinforce bags against leakage

Manufacturing & Printing

  • Industrial parts bundling: Bind metal/plastic rods, sheets and tubes
  • Printing industry packing: Fasten paper stacks and paper rolls
5-19mm PP Strap Making Machine With Three Traction Device and PLC Control System
Frequently Asked Questions
Q: What is the voltage of PP strapping equipment?
A: 380V/50HZ, we support customization
Q: Can the PP strapping production equipment be customized according to the factory length?
A: Yes, we can customize the length according to the customer's factory size.
Q: Where is the PP strapping equipment produced?
A: We are from China.
Q: Can PP strapping equipment provide after-sales service?
A: Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q: Is the quality of PP strapping equipment stable?
A: We have 30 years of manufacturing experience, and have our own PP packaging belt production plant. Equipment quality is stable, the process is worth choosing.
Q: Does PP strapping equipment support customization?
A: We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
