9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
Specifications
Model :
100*2900mm
Place of Origin :
CHINA
Voltage :
380V/50HZ （customized）
Model Number :
JTPET-90
Strap Thickness :
0.6-1.2mm
MOQ :
1 SET
Delivery Time :
30-40days
Total power :
250KW（Power For Operation：120-120KW）
Payment Terms :
L/C,D/A,D/P,T/T
Raw material :
PET Bottle Flake Material, 100% Broken Material
Capacity :
220-250kg/H as customer require
Price :
Negotiable
Winding method :
Manual/automatic
Supply Ability :
50set/month
Power :
45KW
Certification :
IS CEO
Pull :
350-950kg
Brand Name :
JIATUO machinery
Strap Width :
9-32mm
Packaging Details :
plastic film
Description

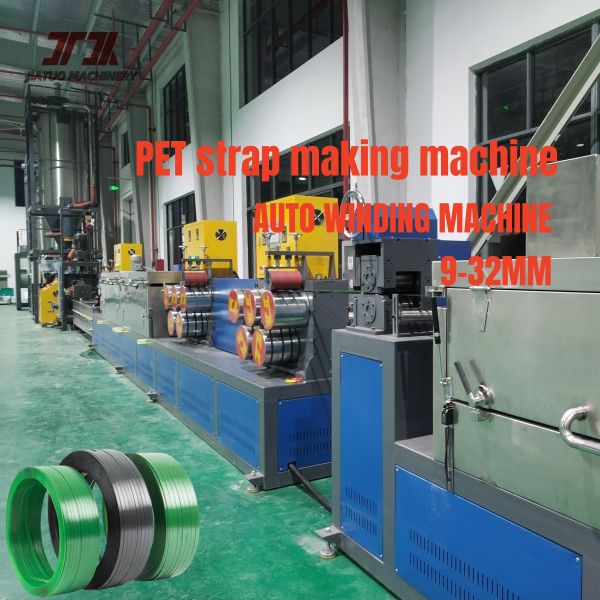

9-32mm Width PET Strap Making Line With PET Recycled Material Available
PET Strap Making Machine Description
Our fully automated PET strap making line delivers stable, high-quality output with comprehensive production capabilities from material feeding to automatic winding.
  • Fully Automated: PLC-controlled system ensures stable, high-quality output from feeding to automatic winding
  • Raw Material Flexibility: Processes both virgin PET pellets and recycled PET bottle flakes, reducing material costs
  • Complete Production Line: Integrated system covering dehumidification drying, extrusion, melt filtration, cooling, stretching, embossing, heat setting, and winding
  • High-Strength Output: Produces PET strapping strong enough to replace steel straps for heavy-duty palletizing
  • Versatile Configurations: Available in 2-strap or 4-strap output models, compatible with manual, semi-auto, and fully automatic strapping tools
Technical Parameters
Model Capacity (kg/h) Strap Size Power (kw) Manpower
JT-PET90 220-250KG/H 9-32mm 85 1-2
JT-PET110 300-330KG/H 9-32mm 100 1-2
JT-PET125 400-450KG/H 9-32mm 110 1-2
JT-PET130 480-500KG/H 9-32mm 200 1-2
Production Process
Mixing material → Pre-drying material → Dehumidification material → Filter material → Extension → Cooling → First stretching → Second stretching → Embossing → Shaping → Cooling → Winding
Key Features
  • Supports virgin PET crushed material, PET bottle flakes and virgin material
  • PLC touchscreen control with real-time temperature, pressure and speed monitoring
  • Melt pump & precision die maintain stable strap width and thickness tolerance
  • Stainless steel cooling tank for smooth strap surface
  • Multi-stage stretching boosts tensile strength and lowers elongation
  • Optional embossing rollers for improved friction and joint strength
  • Semi-auto / fully automatic dual-station winder with auto reel change
  • Modular design with 2 or 4 straps output available
Advantages
  • Cost-effective: Runs with recycled PET crushed material to cut raw material cost; finished PET strap replaces steel strap
  • Stable performance: High tensile strength, controlled elongation, rust-proof and chemical resistant, better than PP strap for heavy loads
  • High compatibility: Straps fit hand strapping tools, semi-automatic and full-automatic strapping machines
  • Continuous automatic production: Less labor input required
  • Eco-friendly: Supports recycled material; no rust contamination on cargo, meets export environmental standards
  • Customizable: Strap width, thickness, color and line capacity available
9-32mm Width PET Strap Making Machine with PET Recycled Material and 220-250kg/H Capacity
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer, and also provide business solutions to all our partners.
Do you have quality certificate?
Yes, we have CE, SGS and other quality certifications.
What's the delivery time?
Approximately 40-50 days, depending on order specifications.
What is your overseas service?
We provide high-quality overseas service with technical staff support for assembly and equipment testing at your location.
