Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPET-125
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets/month
Delivery Time :
50-60DAYS
Packaging Details :
Plastic film
Plastic Processed :
PET
Screw diameter (mm) :
125MM
production capacity :
420-450kgs/H
Warranty :
1 years
Number of extruded strap :
4
Application Scope :
Brickyard, metal, steel, aluminum,brewery
Screen filter :
double cylinder / single cylinder
Thickness range :
0.4-1.2mm
Width range :
9-32mm
Applicable raw materials :
bottle flake material, 100% broken material
Control systems :
PLC Chinese/English control system
Heater power :
220V, 50HZ, 6 KW/ SET
Motor :
SIMENS
Inverter :
INVT
Pre-drying tower capacity :
5000L
Screw design :
Single screw
Description

Used For Machine Or Manual Use PET Strap Making Machine With Schneider Siemens Electric Components

Product Description of PET strap making extruder machine

• Raw material process and extrusion system.

• High performance crystallizing and drying system.

• Production can use 100% recycled material to obtain a high add value strapping band.

• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

• Special designed technology, make sure the strip forming rapidly

• Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.

Technical Parameters of PET 1 to 4 production machine

Item JTPET-125
Screw design Single screw
Straps Qty. 4 straps
Output/Day 10-10.5T/24 hours
Screw Dia. 125mm
Winder Qty. 4 sets
Material used PET raw material or 100% PET bottle flakes recycled
Running power 180-190kw
Installed power 300kw
Strap specifications Width 9-32mm Thickness 0.4-1.2mm
Workshop area L (58m) ×W (2m) ×H (8m)
Electric components Schneider

Production Process of PET Strap Production Machine


Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Pre-heating → The First Drawing and Stretching →The Second Drawing and Stretching → Embossing →Hot Forming → cooling→ Winding

Manual PET Strap Making Machine With Schneider Siemens Electric Components

PET strap making line configuration reference

Item

Name

Quantity

1

Dehumidification and drying system

1 set

2

Oil and dust filter

1 set

3

Horizontal mixer(5000L)

1 set

4

Pre-drying tower(5000L)

1 set

5

Screw Feeder

3 set

6

Barrel(5000L)

1 set

7

¢125mm Extruding Machine

1 set

8

Melt pump

1 set

9

Single cylinder filter

1 set

10

PET Mould output 4straps

1 set

11

Cooling water tank

1 set

12

Stretching oven

1 set

13

Five roller gearbox

3 set

14

PLC electrical control system

1 set

15

Forming oven

1 set

16

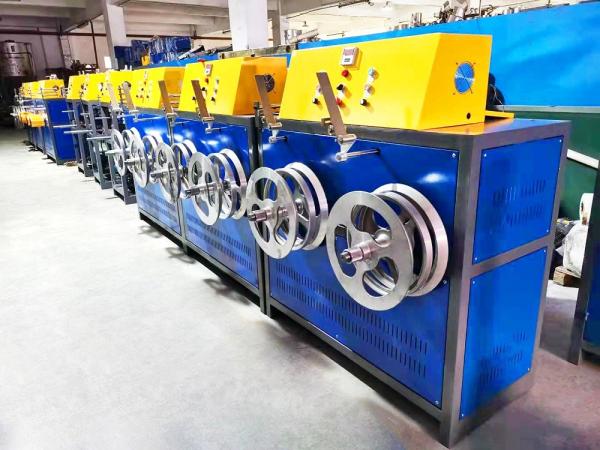

Double disk winder

4 set


Application of PET strap

PET PP PE strap , known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,aluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,textiles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.

Manual PET Strap Making Machine With Schneider Siemens Electric Components
