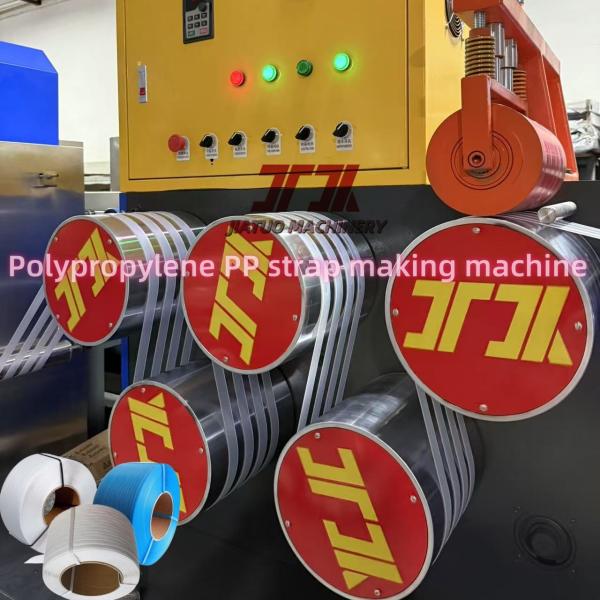

High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm
Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPP
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50-60DAYS To be negotiated
Packaging Details :
Plastic film
Plastic Processed :
PP
production capacity :
120-600kgs/H
Warranty :
1 years
Number of extruded strap :
2/3/4/6/8
Application Scope :
some light cargoes (>240kgs)
screen changer :
Automatic/Manual
Thickness range :
0.4-1.2mm
Width range :
5-19mm
Applicable raw materials :
Recycled material and Polypropylene
Melting point :
260 temperature
Keywords :
Strap Making Machine
Key Selling Points :
High Productivity
Automatic Grade :
Fully automatic/ semi automatic
Inveter :
IVNT
Motor :
Siemens
Worn parts :
Provide some for free
Voltage :
According to customer's requests
Winder type :
Fully automatic/ Semi automatic
Description

High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm​

Product Description of PP strap making machine

This plastic machine PP strap band product for packaging. This line is comparatively low cost. The line speed is >250mm/min. The width and thickness of the strap band is adjustable.
PP Bale Strap Machine is a renewed and improved design, and is special for producing the polypropylene packing strip.
The whole machine includes the extruder, mould, cooling tank, haul-off device, embossing device, winder and electrics controlling part.

Compositions of PP belt production line

1

Vacuum feeder

2

Hopper dryer

3

Feeding machine

4

¢90-135mm Extruding Machine

5

Automatic Screen filter changer

6

Mould(1 mould for 2/3/4/6/8 output)

7

Water cooling tank system

8

The first haul-off device

9

Stretching oven

10

The second haul-off device

11

PLC electrical control system

12

Embossing machine

13

Forming oven

14

Cooling system

15

The third haul-off device

16

Double disk winder


High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm

High Output Polypropylene PP Strap Making Machine Excellent Plasticization 5-19mm

Application of PP strapping
PP strap have been widely used in the package of steel, paper, lumber, tobacco, bricks, building materials, chemical fiber,cotton, metal products, and many other sectors.


Advantage of PP belt production line

PP strap band making machine by single screw extruder or double screw
• Comply with strict safety standards, production lines have longer life.
• From raw material processing, extrusion, drawing, embossing, cooling and winding; every step to improve and ensure the quality of packing
• The entire line can be controlled via a touch screen.
• Production speeds can be up to 250m/min, low waste.
• Choice of two,four, six and eight straps production line.
