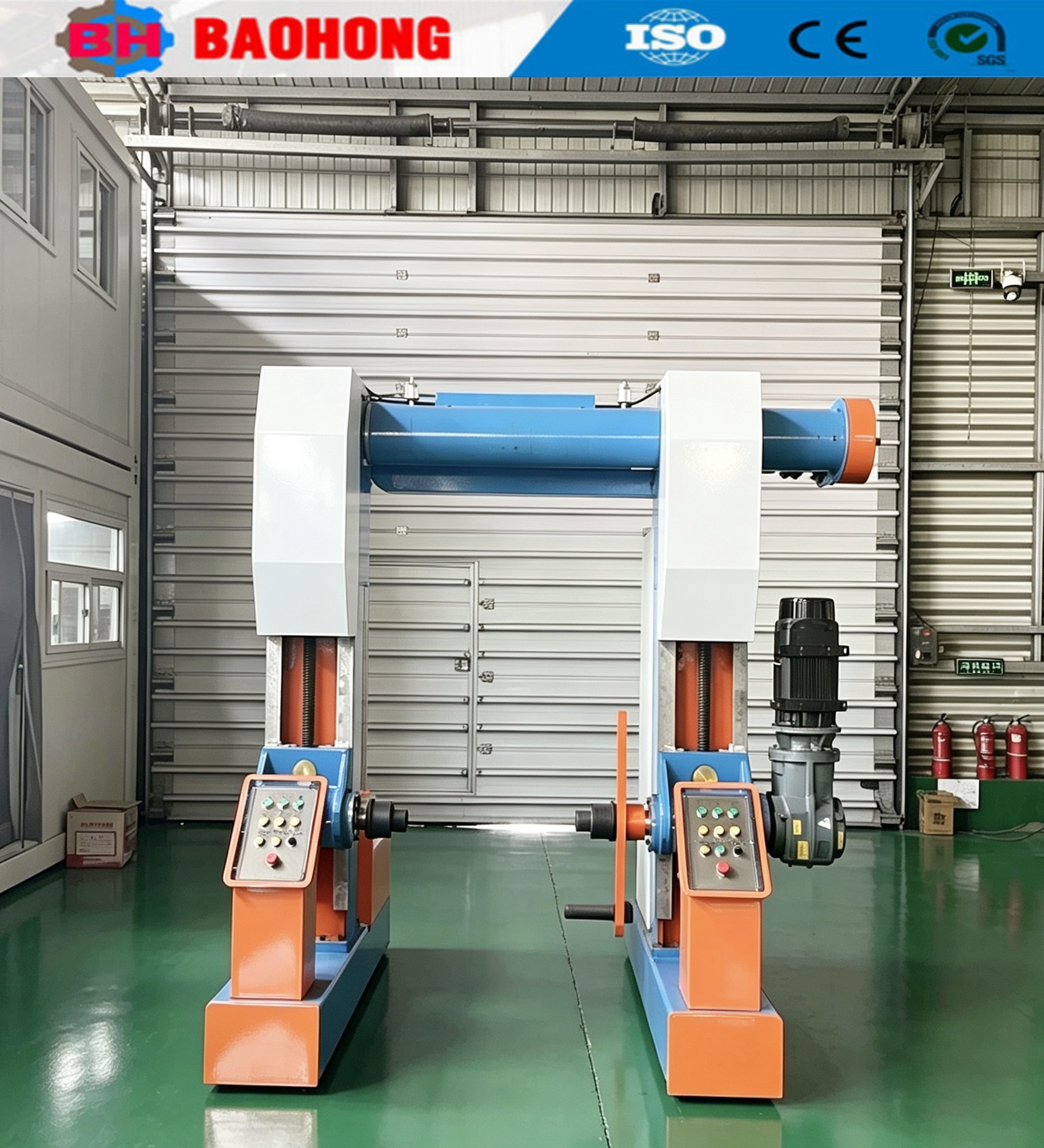

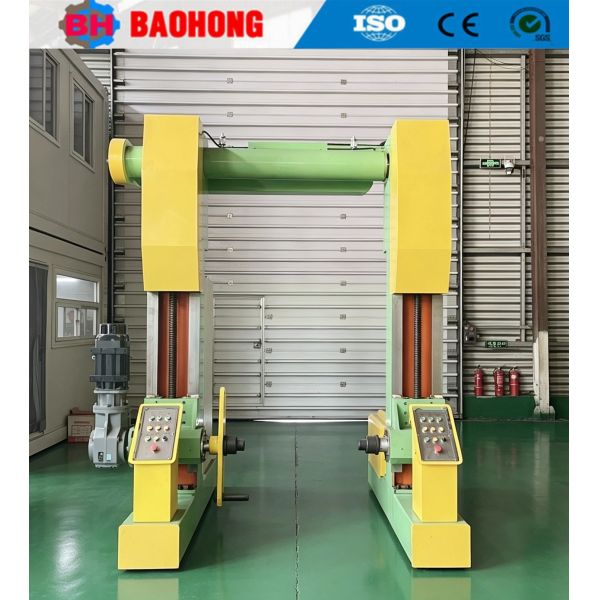

Portal Movable Type Pay-off and Take-up Machine with Traverse
Portal Movable Type Pay-off and Take-up Machine with Traverse
Portal Movable Type Pay-off and Take-up Machine with Traverse
Portal Movable Type Pay-off and Take-up Machine with Traverse
Portal Movable Type Pay-off and Take-up Machine with Traverse
Portal Movable Type Pay-off and Take-up Machine with Traverse
Specifications
Bobbin Size :
1600-3150
Certification :
ISO,CE
Power Supply :
As per user's request
MOQ :
1
Color :
As per user's request
Supply Ability :
20 sets per month
After-Sale Service :
Support
Price :
By Negotiation
Packaging Details :
Export Packing
Warranty :
1year
Payment Terms :
L/C, L/C, D/A, D/P, T/T
Material :
Steel
Place of Origin :
China
Delivery Time :
30-60days
Equipment Name :
Portal Type Pay-off and Take-up
Brand Name :
BH
Description

1. Application

Mainly for the paying off and taking up of wire various kinds of wire and cable production lines.

2. Machine Features
Floor-mounted pay-off stand, suitable for plastic extruders, wire & cable stranding and cabling machines.
Reel traversing design saves floor space and ensures stable cable production.
Automatic tension control, cable diameter/traverse pitch adjustment, position correction and reel loading/unloading.
Reliable mechanical structure and electrical control system for efficient and easy operation.


3. Technical Specifications

3.1 Type: Floor-mounted Pay-off Stand

3.2 Max. Reel Diameter: Ø3150 mm (min. Ø2000 mm)

3.3 Applicable Cable Diameter: Ø20–120 mm

3.4 Pay-off Speed: 5–75 Hz, 5–75 m/min

3.5 Reel Loading/Unloading: Motorized

3.6 Reel Clamping: Motorized double-end clamping

3.7 Brake: Pneumatic disc brake

3.8 Tension Range: 0–20,000 N

3.9 Guide Roller: Ø400 mm, 1 groove + 1 groove + 1 V-groove

3.10 Drive Motor: 11 kW / 15 HP worm gear motor

3.11 Max. Reel Load: 18,000 kg

Portal Movable Type Pay-off and Take-up Machine with TraversePortal Movable Type Pay-off and Take-up Machine with Traverse
