Specifications
Brand Name :
TOP SENSOR
Model Number :
PT111
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15-20 days
Packaging Details :
1 pc per package
Product Name :
Melt Pressure Transducer
Model :
PT111
Measure Range :
0-150Mpa
Accuracy :
±0.3,±0.5,±1%F.S
Description

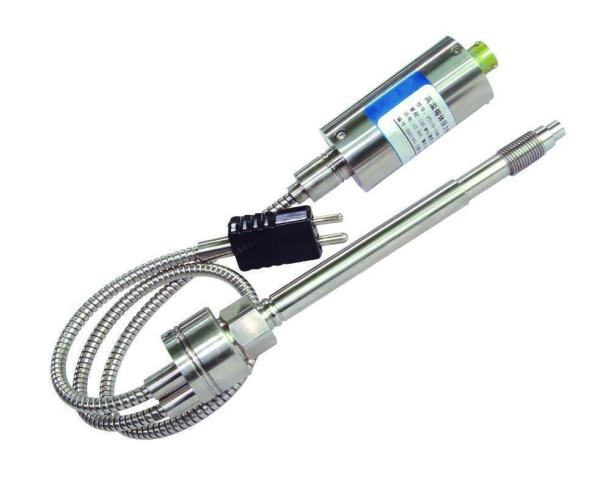

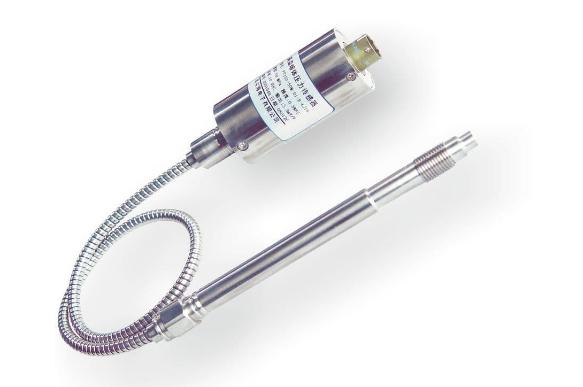

Melt Pressure Transducer, Pressure Sensor
Model: PT111
Insulated by rigid or flex tube
Application:

High-temperature pressure sensor is designed for monitoring pressure in molten materials like plastics and polymers.

Features
  • High-temperature resistance: Melt pressure transducers are built to withstand process temperatures up to 538°C or higher.
  • Robust construction: A specialized diaphragm, often protected by a special coating, protects the sensitive internal sensor from the abrasive and corrosive properties of molten materials.
  • Integrated temperature measurement: Some melt pressure transducers include a built-in thermocouple for simultaneous pressure and temperature monitoring.
  • Different configurations: They are available in various designs, including rigid stem, flexible sheath, and exposed capillary, to suit different mounting requirements.
  • Piezoresistive working principle: Many melt pressure transducers use a piezoresistive strain gauge combined with a fluid-filled system to transmit pressure to the sensor element. Some versions are fluid-free using silicon-based technology.

Parameter

Value

Measure Range

0-150Mpa

Overload Pressure

1.5×RP(rated pressure)

Broken Pressure

3×RP(rated pressure)

Accuracy

±0.3,±0.5,±1%F.S

Stability

Typical ±0.5%F.S, Max ±1%F.S

Operate Temperature

－10℃~400℃

Wire

2 Wires/3 wires

Output Signal

2mv/v, 3.3mv/v, 4~20mA/1-.5v

Power Supply

12~30Vdc

Internal Shunt Calibration (R-Cal):

80% FSO +/- 1%

Insulation

＞2000M (100VDC)

Electric Connect

5 pins or 6 pins connector

Thread. Connect

1/2-20UNF or requested by customer

Response Time

10ms

Length of Rigid Stem

2.36", 60mm, or 6", 152mm

Length of Flexible Tube

18", 460mm
