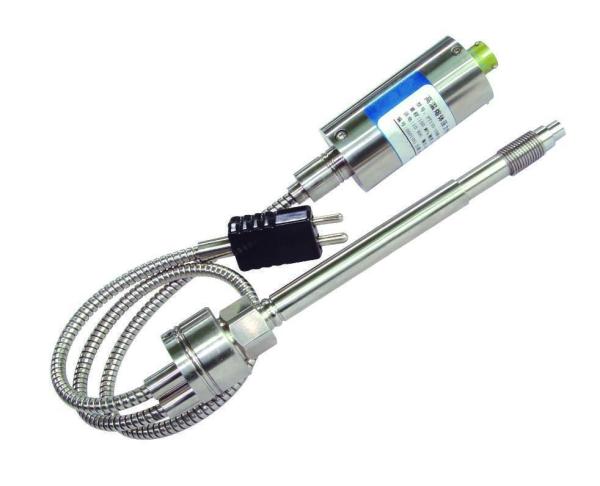

High Temperature Strain Gauge Pressure Transducer 150Mpa
High Temperature Strain Gauge Pressure Transducer 150Mpa
Specifications
Brand Name :
TOP SENSOR
Model Number :
PT112
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300 pcs per month
Delivery Time :
10 days
Packaging Details :
1 pc per box
Material :
Stainless Steel
Pressure Range :
0-150Mpa
Accuracy :
0.3%
Usage :
Pressure Measuring
Safety Overload :
150%
Output Signal :
2mv,3.3mv,4-20mA
Load cell :
Strain Gauge
Description
High Temperature Strain Gauge Pressure Transducer 150Mpa
Model: PT112
Melt Pressure Transducer

Melt Pressure Transducer, Pressure Sensor Model: PT112 Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other...

Send Inquiry

Melt Pressure Transducer, Pressure Sensor
Model: PT112
Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time
Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other special occasions

Parameter

Value

Measure Range

0-150Mpa

Overload Pressure

1.5×RP(rated pressure)

Broken Pressure

3×RP(rated pressure)

Accuracy

±0.3, ±0.5, ±1%F.S

Stability

Typical ±0.5%F.S, Max ±1%F.S

Operate Temperature

－10℃~400℃

Wire

2 Wires/3 wires

Output Signal

2mv/v, 3.3mv/v, 4~20mA/0.5-4.5v

Power Supply

12~30Vdc

Internal Shunt Calibration (R-Cal)

80% FSO +/- 1%

Insulation

＞2000M @100V

Electric Connect

5 pins or 6 pins connector

Thread. Connect

1/2-20UNF or requested by customer

Response Time

10ms

Length of Rigid Stem

2.36", 60mm, or 6", 152mm

Length of Flexible Tube

18", 460mm

Customization: Melt pressure sensor outlet/ inlet, cable length
