Specifications
Brand Name :
TOP SENSOR
Model Number :
SD-03
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 days
Packaging Details :
12 pcs per ctn
Price :
Negotiable
Material :
Alloy Steel or Stainless Steel
Capacity :
0.2-10t / 0.5-20Klb
Output :
3mv or 2mv
Application :
Electronic platform scales, vehicle scales, railroad scales
Cable Length :
3-10 meters
Accuracy :
C3
Description

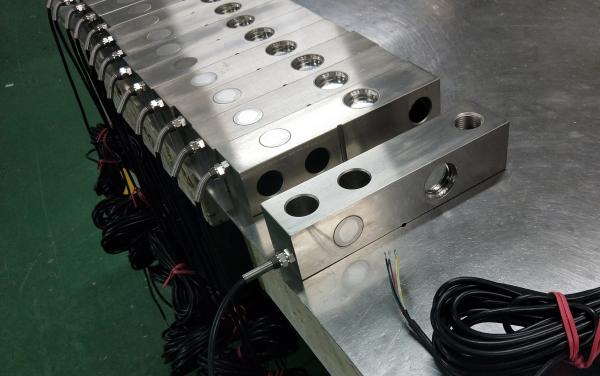

Single Shear Beam Load Cell

Model:SD-03
Capacity:0.2-10t / 0.5-20Klb

Features:
Alloy steel structure; Weld sealing IP67
Applications:
Electronic platform scales, vehicle scales, railroad scales etc

Dimensions:
Single Beam Type Load Cell 100kg 500kg 1000kg 2000kg 5000kg 10000kg

CapacityLL1L2L3L4dBM
0.5~2(t)13056.515.825.476.213.531.8

M12X1.75 or
M16

5~10(klb) 2.5~5(t)171.577.219.138.195.32038.1

M18X1.5

3/4-16UNF

15,20(klb) 7.5,10(t)222.3101.625.450.8120.726.250.8

M24x2
1-12 UNF

Precision: 0.02%F.S

Insulation resistance: ≥5000MΩ(100VDC)

Rated output: 2±0.003 mv/v or 3mv/v

Excitation voltage: 9~12VDC

Non-linearity: 0.03%F.S

Compensated temp.range: -10~+40℃

Hysteresis: 0.03%F.S

Use temp.range: -20~+55℃

Repeat: 0.02%F.S

Temp.effect on zero: 0.03F.S/10℃

Creep: 0.02%F.S/10min

Temp.effect on span: 0.02F.S/10℃

Zero balance: ±1%F.S

Safe overload: 120%

Input resistance: 350±5Ω

Ultimate overload: 150%

Output resistance: 350±3Ω

Defend grade: IP67

Cable Length :3 meters , 5 meters or on request
