Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display
Specifications
Brand Name :
RUIJIA
Model Number :
RC501
Certification :
CE/ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
$78
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000pc/month
Delivery Time :
5-16 work days
Packaging Details :
Wooden crate or cardboard box
Measure range :
-0.1~+100MPa (optional)
Accuracy :
0.2%FS, 0.5%FS (default)
Overload capacity :
<1.5 times the range
Temperature drift :
≤ ±1.5%FS 0.03%FS/℃
Medium temperature :
-40~75℃; -40~150℃ (high temperature type)
Measure medium :
Gas and liquid that are non-corrosive to stainless steel
Description

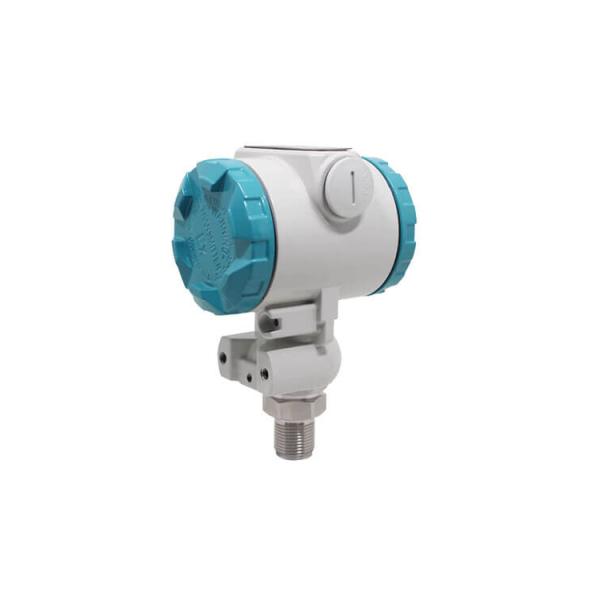

Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display


Our explosion-proof pressure sensor adopts a high-performance pressure-sensitive chip, combined with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear current or voltage signals. Our company offers two output signal options: analog and RS485, which can be connected to on-site PLCs, configuration software, HMI screens, or industrial controllers. Additionally, our networked data concentrators or monitoring hosts can be used to upload data to our free cloud platform, allowing users to view real-time data, historical records, and alarm logs via a computer or mobile app.

Explosion-proof Pressure Sensor Hart Pressure Transmitter Pressure Transducer Sensor with Digital Display

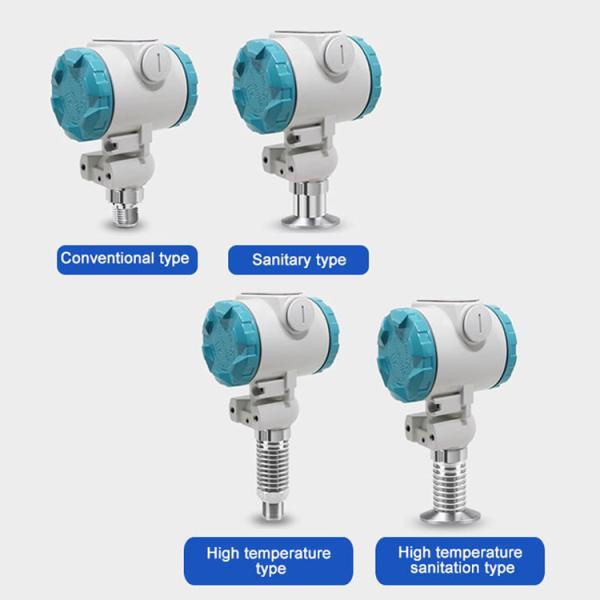

Additionally, the sanitary (flush diaphragm) pressure sensor is based on this pressure sensor but features a welded, sealed isolation diaphragm. This diaphragm sealing device comes in various structural designs, making it particularly suitable for high-temperature, high-viscosity, and crystallized media, as well as environments prone to clogging. It is also ideal for pressure measurement in sanitary and pharmaceutical applications.


Parameters

Output signal RS485 4-20mA/0-5V/0-10V
Power supply 10-30V DC 12-36V DC
Measure range -0.1~+100MPa (optional)
Accuracy 0.2%FS, 0.5%FS (default)
Overload capacity <1.5 times the range
Temperature drift ≤ ±1.5%FS 0.03%FS/℃
Medium temperature -40~75℃; -40~150℃ (high temperature type)
Measure medium Gas and liquid that are non-corrosive to stainless steel
Long-term stability ≤ ±0.3%FS —
Response time ≤1ms —
Protection level IP65
