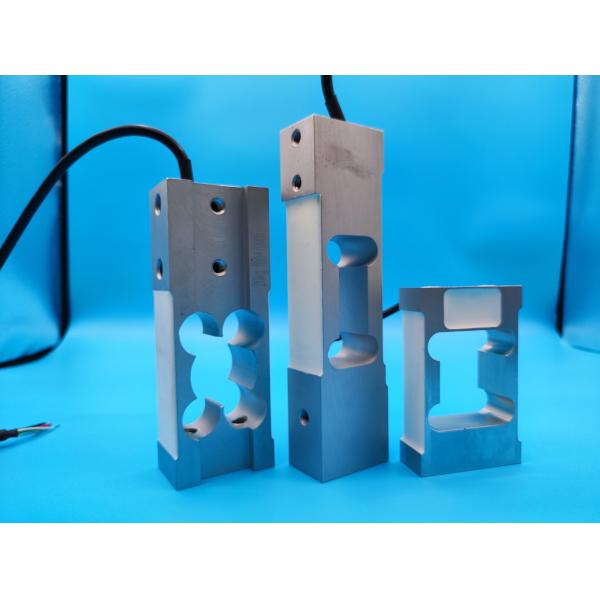

High Accuracy Single Point Load Cell For Beehives And Smart Garbage Bins With Zero Temperature Compensation
High Accuracy Single Point Load Cell For Beehives And Smart Garbage Bins With Zero Temperature Compensation
High Accuracy Single Point Load Cell For Beehives And Smart Garbage Bins With Zero Temperature Compensation
High Accuracy Single Point Load Cell For Beehives And Smart Garbage Bins With Zero Temperature Compensation
Specifications
Brand Name :
ruijia
Model Number :
RJ-6545
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$5.00 - $8.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
Within 2-4 Weeks
Packaging Details :
Standard export packaging
Model Number: :
RJ-6545
Sensitivity: :
2.0±0.2 MV/V
Creep（15min): :
±0.02 %FS
Input Resistance: :
406±20 Ω
Output Resistance: :
350±5 Ω
Theory :
Precision Load Cell
Series :
RJ Series
Description

High accuracy single point load cell for Beehives and smart garbage bins with zero temperature compensation

The performance data of RJ-6545 load cell

Parameters
Range (KG): 5, 8, 10, 15, 20, 30, 40, 50, 100
Accuracy: C3 Temp. effect on span (%F.S/10℃): ±0.02
Comprehensive error(%F.S): ±0.02 Temp. effect on zero (%F.S/10℃): ±0.017
Rated output (mV/ V): 2.0±0.2 Compensated temp. range (℃): -10~+60
Creep (%F.S/30min): ±0.02/±0.017 Operation temp. range (℃): -20~+80
Zero balance (%F.S): ±1.0 Excitation voltage (V): 5-12(DC)
Input resistance (Ω): 406±20 Safe overload (%F.S): 120
Output resistance (Ω): 350±5 Ultimate overload (%F.S): 150
Insulation resistance (MΩ): ≥5000(100VDC) Ingress protection: IP65

High Accuracy Single Point Load Cell For Beehives And Smart Garbage Bins With Zero Temperature Compensation

The dimension(mm) of RJ-6545 load cell

The electronic connection of RJ-6545 model load cell

THE CABLE STANDARD LINE LENGTH IS 300MM. If you have special needs, we can provide as required.
