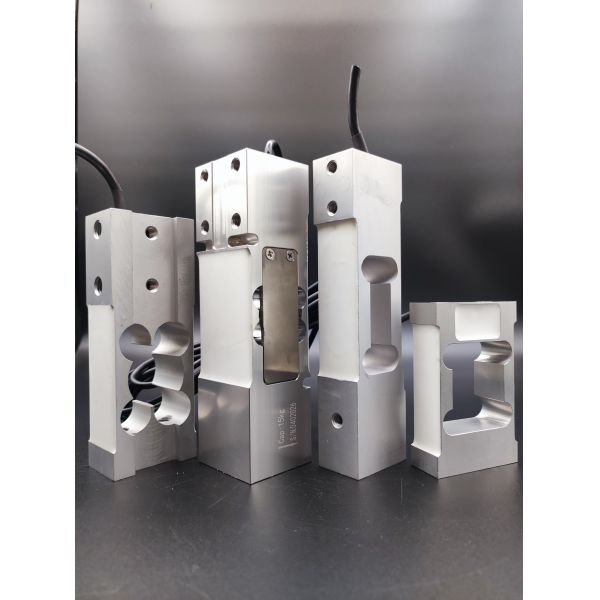

18V Luggage Load Cell Scale Livestock Load Cell Truck Scale Load Cell
18V Luggage Load Cell Scale Livestock Load Cell Truck Scale Load Cell
18V Luggage Load Cell Scale Livestock Load Cell Truck Scale Load Cell
18V Luggage Load Cell Scale Livestock Load Cell Truck Scale Load Cell
Specifications
Brand Name :
ruijia
Model Number :
RJ-6545
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$5.00 - $8.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
Within 2-4 Weeks
Packaging Details :
Standard export packaging
Model Number: :
RJ-6545
Sensitivity: :
2.0±0.2 MV/V
Creep（15min): :
±0.02 %FS
Proposed Excitation Voltage: :
5~12 V
Material :
Aluminum Alloy
Allowed Excitation Voltage :
18V
Description

Factory Direct Sales Luggage Scale Load Cell Scale Livestock Load Cell Truck Scale Load Cell

The performance data of RJ-6545 load cell

Parameters
Range (KG): 5, 8, 10, 15, 20, 30, 40, 50, 100
Accuracy: C3 Temp. effect on span (%F.S/10℃): ±0.02
Comprehensive error(%F.S): ±0.02 Temp. effect on zero (%F.S/10℃): ±0.017
Rated output (mV/ V): 2.0±0.2 Compensated temp. range (℃): -10~+60
Creep (%F.S/30min): ±0.02/±0.017 Operation temp. range (℃): -20~+80
Zero balance (%F.S): ±1.0 Excitation voltage (V): 5-12(DC)
Input resistance (Ω): 406±20 Safe overload (%F.S): 120
Output resistance (Ω): 350±5 Ultimate overload (%F.S): 150
Insulation resistance (MΩ): ≥5000(100VDC) Ingress protection: IP65

18V Luggage Load Cell Scale Livestock Load Cell Truck Scale Load Cell

FAQ

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Range, Usage and else related parameters.

2. Do you have any discount?
Yes, if you buy large QTY, we will give you a big discount.

3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, , etc.

4.May I have your contact information?
You can add us on WHATSAPP: +86 3165714321.

Looking forward to cooperating with you!
