Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$60-100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 Work days
Packaging Details :
Standard export packaging

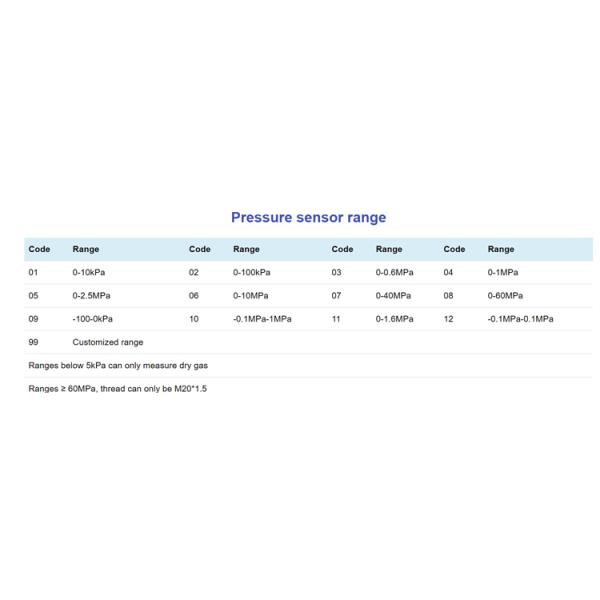

Measure range :
-0.1~100MPa (optional)
Accuracy :
0.5%FS (default), 0.2%FS
Overload capacity :
≤1.5 times (continuous) ≤2.5 times (instantaneous)
Temperature drift :
0.03%FS/℃
Medium temperature :
-40~75℃, -40~150℃ (high temperature type)
Working environment :
-40~60℃
Description

Industrial Pressure Sensor Suppliers

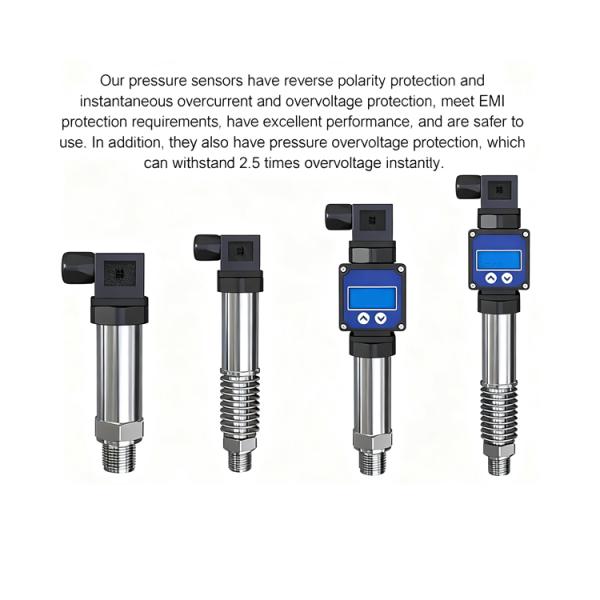

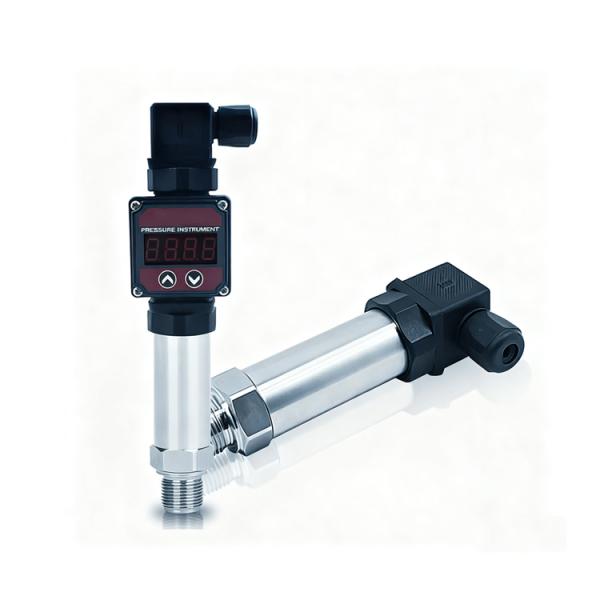

The pressure sensor is small in size, easy to install, and is insulated by a stainless steel case. It is suitable for measuring gas and liquid media compatible with the material of the contact part. It can be used to measure gauge pressure, negative pressure, and absolute pressure.

Industrial Pressure Sensor Suppliers 10~30V DC Pressure Transmitter 4-20ma Digital Pressure Transmitter 0 10 Bar Barometric Sensor Air & Water Transducer for Vacuum Best Price

Our pressure sensors use the standard ModBus-RTU communication protocol with RS485 output, which allows integration with PLCs, configuration software, configuration screens, and industrial controllers. We recommend selecting our company’s matching monitoring host, which can upload data to our free cloud monitoring platform. This platform supports users in viewing real-time data, historical data, alarm records, and more via mobile phones or computers. If you choose a model with buttons and a display, you can modify values such as the address and baud rate directly through the buttons.

Pressure sensor datasheets

Parameter Category Specific Specifications
Power Supply 10~30V DC
Max. Power Consumption 0.3W
Measure Range -0.1~100MPa (optional)
Accuracy 0.5%FS (default), 0.2%FS
Overload Capacity ≤1.5 times (continuous); ≤2.5 times (instantaneous)
Temperature Drift 0.03%FS/℃
Medium Temperature -40~75℃; -40~150℃ (high-temperature type)
Working Environment -40~60℃
Monitoring Target Non-corrosive gas or liquid
Output Method RS485

Industrial Pressure Sensor Suppliers 10~30V DC Pressure Transmitter 4-20ma Digital Pressure Transmitter 0 10 Bar Barometric Sensor Air & Water Transducer for Vacuum Best Price
