Wholesale Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor

Features

Micro pressure transducer pancake load cell RJ has a central threaded hole for measuring loads in either tension or compression.The wheel-shaped transducer is available in a wide capacity range from 100kg to 30t. The spoke pressure sensor has high endurance and high fatigue life.

• High comprehensive precision
• Tension-compression bidirectional
• Other ranges can be customized

Applications

• Universal material testing machine
• injection molding clamping force applications
• The weighting system for tanks, vessels and hoppers

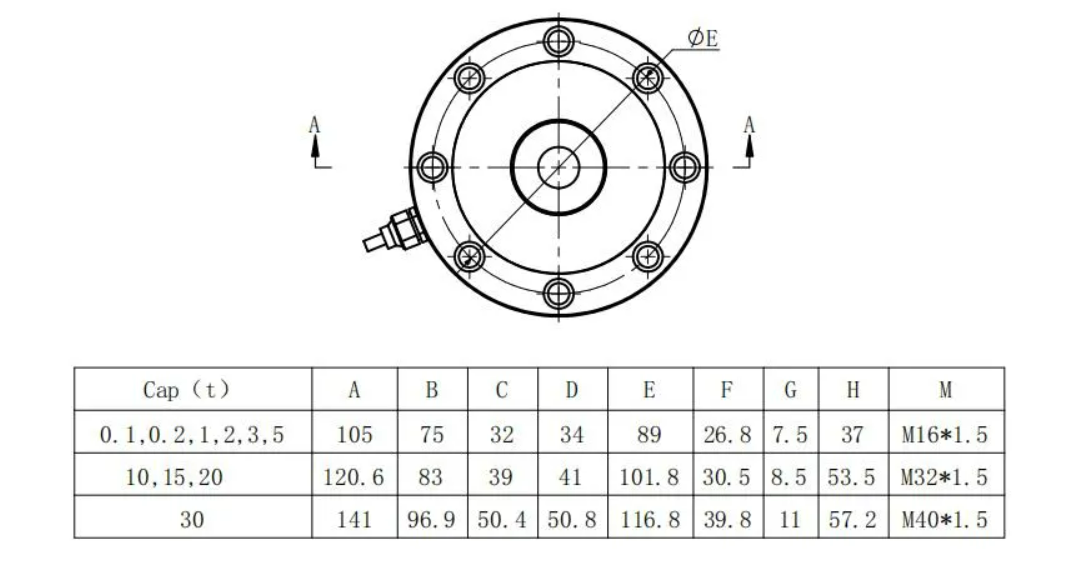

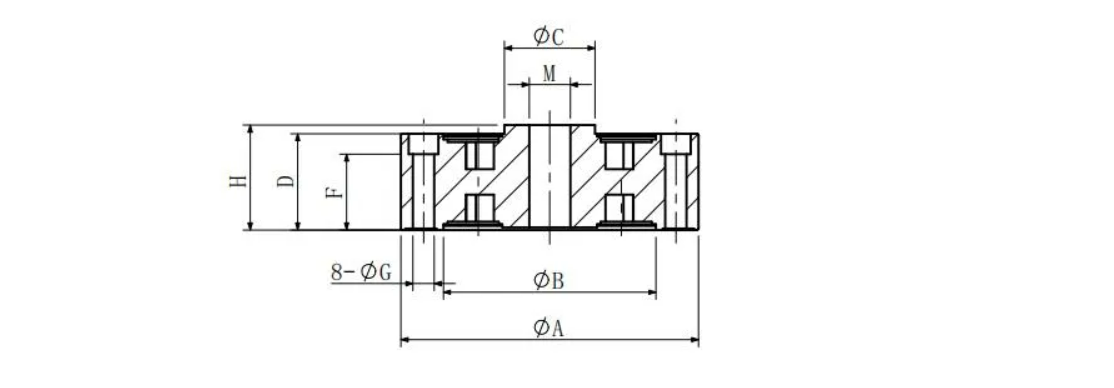

Mounting Dimension

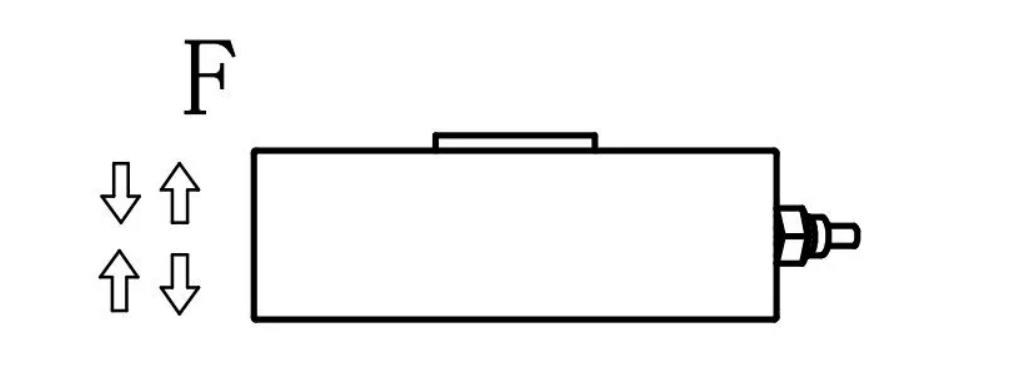

Load Direction

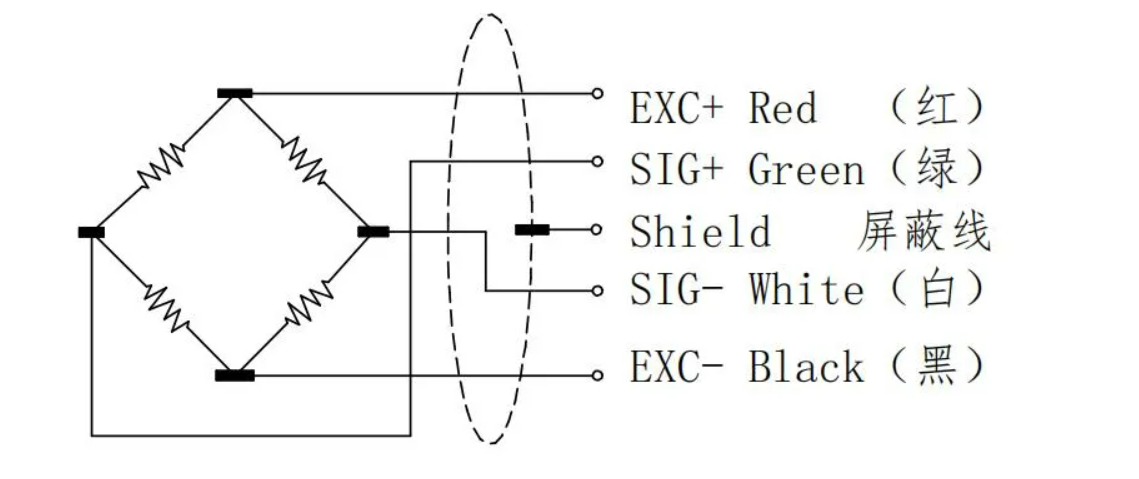

Wiring Code

Company Profile

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
