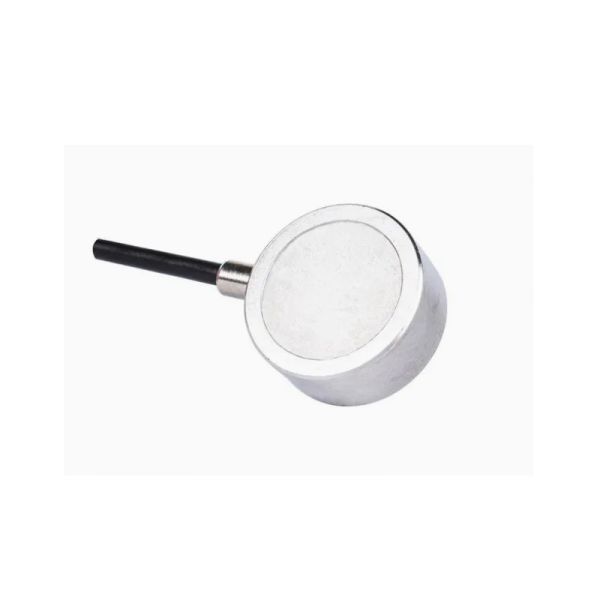

Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly
Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD1 ~77/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 Work days
Packaging Details :
Standard export packaging
Material :
Stainless Steel
Non-Linearity :
≤0.5%F.S.
Capacity :
5,20,30,100kg
Repeatability :
≤0.5%F.S.
IP Rating :
According to Requirements
Output Signal Type :
Digital Type
Description

Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

Features

Minitype pressure transducer is useed for compression force measurement application. The load button load cell is capable of measuring compression forces up to 100kg using strain gauge technology. The miniature force sensor can be used in tight Spaces due to its small size.
* Subminiature size
* Stainless steel
* High precision

Applications

* 3C digital detection
* Load distribution measurement
* Auto machine

Mounting Dimension

Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

Load Direction

Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

Wiring Code

Factory Direct Pressure Load Button Force Sensor for Automotive Press AssemblySpecifications

Specifications Technique
Capacity 5,10,20,30,100kg
Rated output 1.5±10%mV/V
Zero balance ±0.05 mV/V
Creep(30min) ≤0.5%F.S.
Non-linearity ≤0.5%F.S.
Hysteresis ≤0.5%F.S.
Repeatability ≤0.5%F.S.
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation voltage 15V
Compensated temp range -10~60ºC
Operation temp range -20~80ºC
Temp.effect on output 0.05%F.S./10ºC
Temp.effect on zero 0.05%F.S./10ºC
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm
Material Stainless Steel
Weight 0.1KG

Company Profile

Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
