Ultra-Thin Full-Bridge Load Cell Weight Sensor
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
1
Price :
USD1.5 ~2.5/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 Work days
Packaging Details :
Standard export packaging
Material :
Stainless Steel
Feature :
Low Temperature Resistant
Output Signal Type :
Analog Type
IP Rating :
IP65
HS Code :
9031809090
Description

Ultra-Thin Full-Bridge Load Cell Weight Sensor

Ultra-Thin Full-Bridge Load Cell Weight Sensor

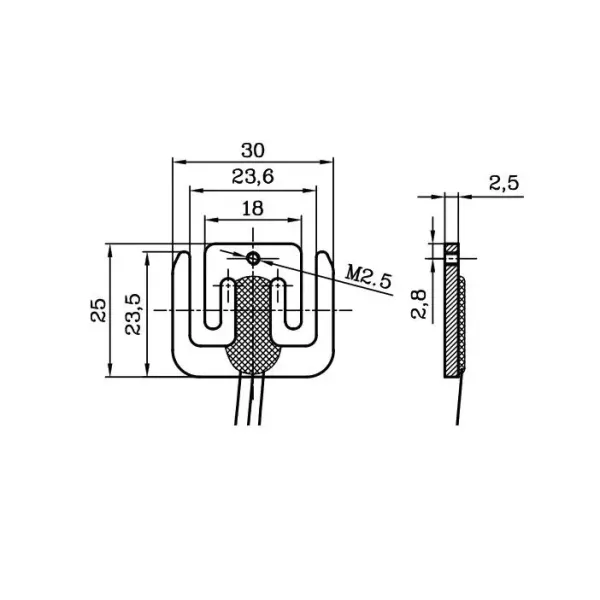

Product size drawing
Ultra-Thin Full-Bridge Load Cell Weight Sensor
Product parameter list

capacity Kg 50Kg
Rated Output mv/v 1.0±0.2
Non-linearity %F.S 0.3
Hysteresis %F.S 0.3
Repeatability %F.S 0.3
Creep %F.S/3min 0.3
Temp.effect on zero %F.S/10ºC 0.3
Temp.effect on span %F.S/10ºC 0.3
Zero balance mv/v ±0.2
Input impedance Ω 1000±10
Output impedance Ω 1000±5
Insulation resistance MΩ ≥2000(100VDC)
Recommended excitation voltage VDC 3~12
Allowed excitation voltage VDC 5~15
Compensated temp.Range ºC -10ºC~+40ºC
Operating temp.Range ºC -20ºC~+60ºC
Safe overload %F.S 120
Ultimate Overload %F.S 150
Connection Excitation: White:E+ Black:E-
Signal: Red:S+

Company Information

Ultra-Thin Full-Bridge Load Cell Weight Sensor

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages
1, Professional
17+years industrial experience,Know your needs quickly
2, Wide Product Variety
include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence
we can also customize replacement to the same specifications as the brand you need
4, Good service
If you have any question,Welcome to feel free to contact
