Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

fter purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Compression load cells have capacity range from 15 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model RJ
Shipping Weight 7.4~33.8kg
Capacity Range * 20 ton~200 ton
Matched Display Controller (Click it to the controller page)
Matched Transmitter (Click it to the transmitter page)
Accuracy 0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity 2.0±0.1mV/V
Creep ±0.05%F.S/30min
Zero Output ±1%F.S
Temperature Effect on Zero ±0.03%F.S/10℃
Temperature Effect on Output ±0.03%F.S/10℃
Operating Temperature -20℃~+65℃
Input Impedance 380±10Ω
Output Impedance 350±3Ω
Insulation Resistance ≥5000MΩ
Safety Overload 150%F.S
Bridge Voltage (excitation voltage) DC 10V
Material Alloy steel
Protection Class IP67
Cable Length 6m for capacity ≥ 5 ton, with aviation plug
3m for capacity < 5 ton, with aviation plug
Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


Feature

Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

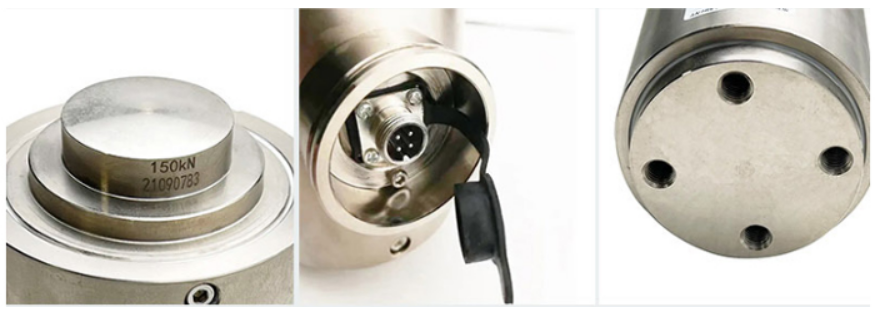

  • 42CrMo Alloy Material: Column structure, strong resistance to machine fatigue, large load capacity, widely used in industries such as pharmaceuticals, metallurgy, automotive, railway, warehouse, and material handling equipment.
  • High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
  • Fine Workmanship: Advanced grinding technology, flat design, easy installation, smooth and precise construction for efficient setup.

Dimension

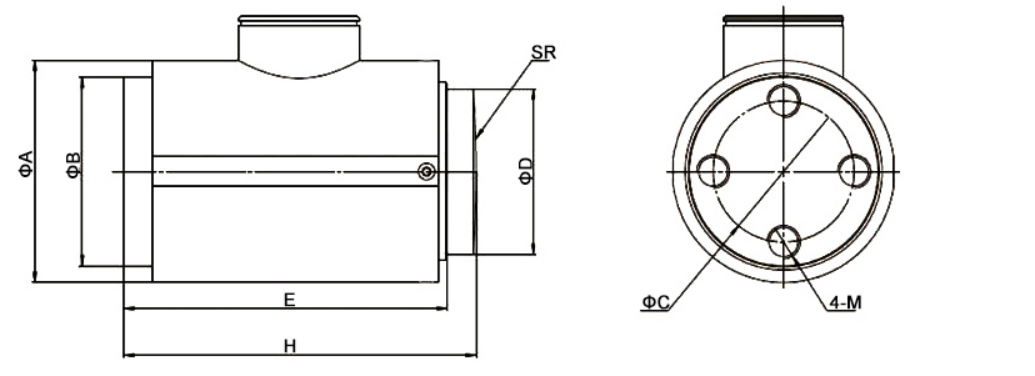

Capacity Dimension (mm)
ΦA ΦB ΦC ΦD H E M SR (radian)
15~30 ton 86 73.5 56 40 140 129 10 200
40~60ton 100 87 68 80 150 133 12 350
100 ton 107 91 68 80 150 156 16 500
150~200 ton 158 139 100 120 220 201 16 1000

Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

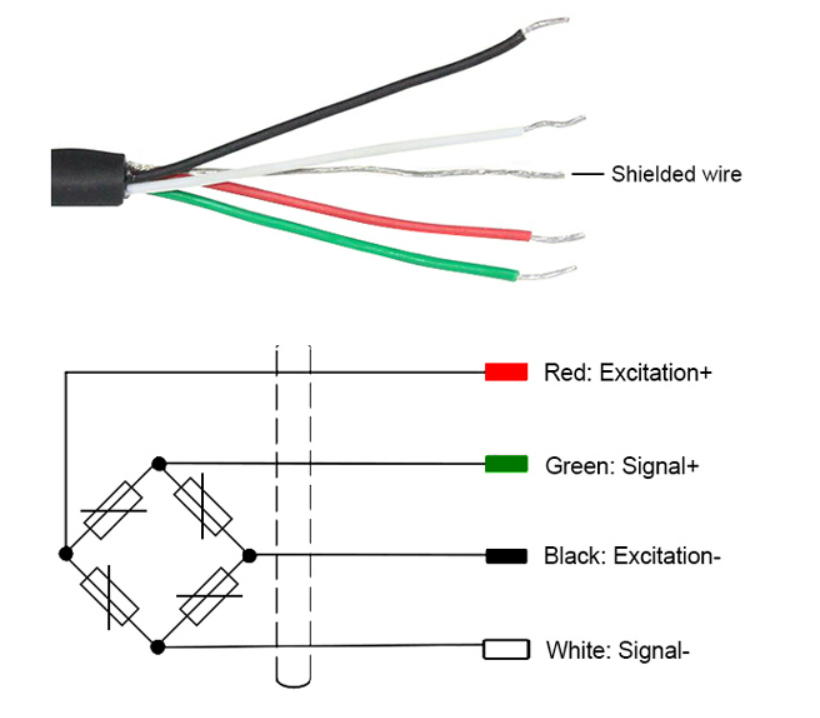

Wiring Method

Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

Tips: Load cell working principle

Load cell is actually a kind of device to transform the weight signal into the measurable electrical output signal. At present, the commenly used load cell is the resistance strain load cell, which utilizes the principle that the resistance modifies accordingly when the strain gauge deforms. Load cell is mainly constituted by four parts, which are respectively the elastic component, strain gauge, measuring circuit and transmission cable.
