Bellows Cantilever Shear Beam Load Cells
Bellows Cantilever Shear Beam Load Cells
Bellows Cantilever Shear Beam Load Cells
Bellows Cantilever Shear Beam Load Cells
Bellows Cantilever Shear Beam Load Cells
Bellows Cantilever Shear Beam Load Cells
Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD5 ~145/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 Work days
Packaging Details :
Standard export packaging
Rated Output: :
2mv/v±0.003
Creep(%F.S/30min): :
±0.02
Zero balance(%F.S): :
±1.0
Input resistance: :
350±5
Output resistance: :
350±5
Insulation resistance: :
≥5000(100VDC)
Description

Bellows Cantilever Shear Beam Load Cells

Details
Bellows Cantilever Shear Beam Load Cells CAPACITY: 500kg-2000kg Features: Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs, hermetically welded, oil-proof, waterproof and anti-corrosion...

Features:
Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg
Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
hermetically welded, oil-proof, waterproof and anti-corrosion
APPLICATIONS: Indsustrial process weighing control, batching control system and testing equipment other weighing machine

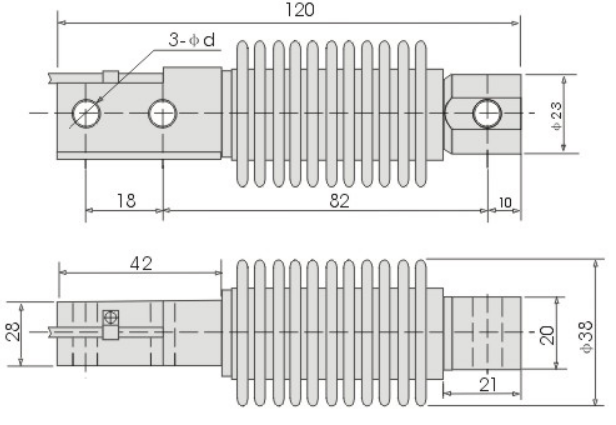

Dimensions:(mm)

Bellows Cantilever Shear Beam Load Cells

Parameters:

Precision: C3
Rated Output: 2mv/v±0.003
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 350±5
Output resistance: 350±5
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.017
Temp. effect on zero(%F.S/10℃): ±0.02
Use temp. range(℃): -20～+55
Excitation voltage(V): 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Ingress protection IP67
Cable Length: 3 meters -10 meters
Install Hole
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-

Company Information

Bellows Cantilever Shear Beam Load Cells

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages
1, Professional
17+years industrial experience,Know your needs quickly

2, Wide Product Variety
include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence
we can also customize replacement to the same specifications as the brand you need
4, Good service
If you have any question,Welcome to feel free to contact
