1.5TB DDR4 Mini Supermicro Gpu Server 1U Rack 2nd Gen Intel Xeon Scalable SYS-1019P-FRN2T
1.5TB DDR4 Mini Supermicro Gpu Server 1U Rack 2nd Gen Intel Xeon Scalable SYS-1019P-FRN2T
1.5TB DDR4 Mini Supermicro Gpu Server 1U Rack 2nd Gen Intel Xeon Scalable SYS-1019P-FRN2T
1.5TB DDR4 Mini Supermicro Gpu Server 1U Rack 2nd Gen Intel Xeon Scalable SYS-1019P-FRN2T
Specifications
Place of Origin :
CHINA
MOQ :
1pc
Processor :
Intel Xeon Scalable processors
Storagecapacity :
Up to 240TB raw capacity
Raidsupport :
Hardware RAID 0, 1, 5, 6, 10, 50, 60
Drivetypessupported :
SAS, SATA, SSD
Management :
Dell OpenManage and iDRAC
Expansionslots :
Up to 3 PCIe slots
Payment Terms :
D/A,D/P
Memory :
Up to 1.5TB DDR4 ECC RAM
Driveslots :
Up to 24 x 3.5-inch or 2.5-inch drives
Supply Ability :
200pcs
Securityfeatures :
TPM 2.0, Secure Boot, BIOS-level security
Warranty :
3-year limited hardware warranty with on-site service
Packaging Details :
Carton Packaging
Operatingsystemsupport :
Windows Server, Linux distributions, VMware
Brand Name :
Supermicro
Model Number :
SYS-1019P-FRN2T
Price :
$7999-10999 pcs Negotiable
Powersupply :
Redundant hot-plug power supplies
Networkconnectivity :
Dual 10GbE or 1GbE ports
Productname :
Dell PowerEdge Storage Server
Formfactor :
Rack-mounted
Description

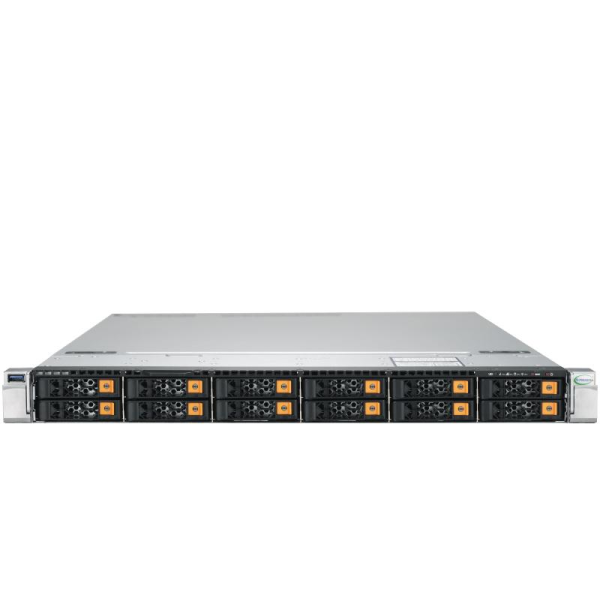

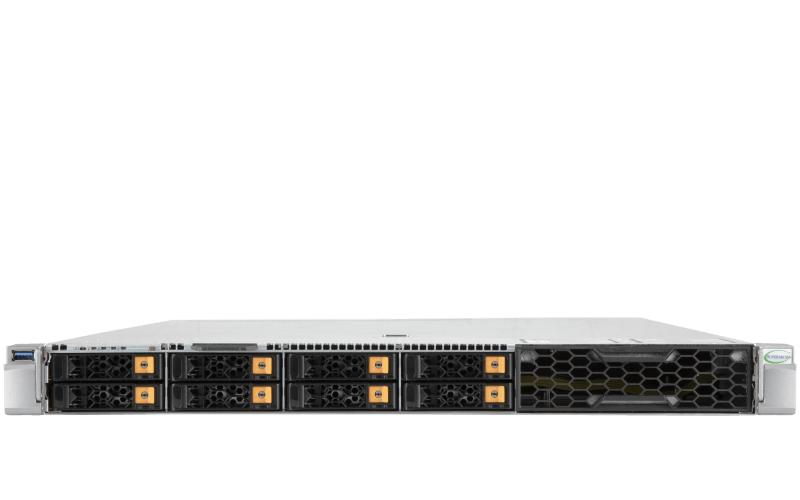

Supermicro SYS-1019P-FRN2T 1U Rack Server with 2nd Gen Intel Xeon Scalable, 1.5TB DDR4 Memory, and Platinum-level Power Supply

The Supermicro SYS-1019P-FRN2 is a 1U rackmount SuperServer built for high-density, energy-efficient edge and data center workloads. It delivers enterprise-grade performance, robust I/O, and redundant design in a compact 1U form factor—ideal for MEC, NFV, uCPE, cloud, and network security deployments

Key Features
  • Form Factor: 1U rackmount (CSE-515M-R601 chassis)
  • Processor: Single Socket P (LGA3647) for 2nd Gen Intel Xeon Scalable; max TDP 205W
  • Chipset: Intel C622
  • Memory: 6× DDR4 DIMM slots; up to 1.5TB 3DS ECC DDR4-2933MHz (RDIMM/LRDIMM)
  • Storage:
    • 2× hot-swap 2.5” SATA3 drive bays (front)
    • 1× M.2 M-key 2280/22110 (PCIe 3.0 x4 / SATA)
  • Network:
    • 2× 10GBase-T RJ45 (Intel X722 + X557)
    • 1× dedicated IPMI LAN port
  • Expansion: 2× PCIe 3.0 x16 WIO slots (FHFL)
  • Power: 2× 800W Platinum-level (94%+) redundant AC PSUs
  • Cooling: 5× hot-swappable redundant 40mm PWM fans
  • Management: IPMI 2.0, KVM over LAN, SuperDoctor 5, Intel Node Manager
  • I/O Ports: 2× USB3.0, 2× USB2.0, 1× VGA, 1× COM
  • Dimensions (W×H×D): 437 × 43 × 398.8 mm (17.2 × 1.7 × 15.7 in)
Applications
  • Multi-Access Edge Computing (MEC)
  • Cloud & C-RAN (Radio Access Network)
  • Universal Customer Premise Equipment (uCPE)
  • Network Function Virtualization (NFV)
  • Advanced Network Security & Firewalls
  • Edge AI / Machine Learning Inference
