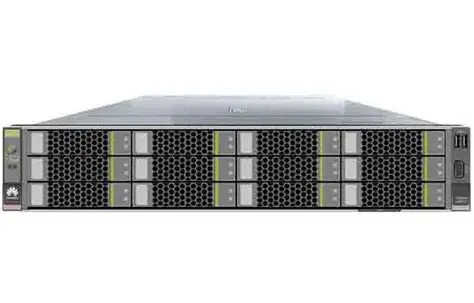

Huawei TaiShan 2280 Balanced Model 2U Rackmount Storage Server with Kunpeng 920 and 16 NVMe SSDs
Huawei TaiShan 2280 Balanced Model 2U Rackmount Storage Server with Kunpeng 920 and 16 NVMe SSDs
Huawei TaiShan 2280 Balanced Model 2U Rackmount Storage Server with Kunpeng 920 and 16 NVMe SSDs
Huawei TaiShan 2280 Balanced Model 2U Rackmount Storage Server with Kunpeng 920 and 16 NVMe SSDs
Specifications
Price :
Negotiable
Brand Name :
Huawei
MOQ :
1PC
Delivery Time :
5-7 work days
Packaging Details :
Carton packing
Model Number :
Huawei TaiShan 2280 Balanced Model
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
200pcs
Description
Taishan series 2280 Balanced Model of Huawei

The 2280 balanced model is a 2U 2-socket server powered by Kunpeng 920 (64 cores, 2.6 GHz). The server provides up to 128 cores and 16 NVMe SSDs.

The 2280 model features high performance, low power consumption, and flexible expandability. It efficiently accelerates workloads in big data analytics, software-defined storage, and web application scenarios.

Specifications
Parameters Model
Form Factor 2U rack server
Processors 2 Kunpeng 920 processors
Memory 32 DDR4-2933 DIMM slots
Internal Storage 12-drive model:
Front: 12 x 3.5-inch SAS/SATA drives or SSDs; Rear: 4 x 3.5-inch SAS/SATA drives or SSDs
25-drive model:
Front: 25 x 2.5-inch SAS/SATA drives or SSDs or or 16 x 2.5-inch NVMe SSDs; Rear: 2 x 2.5-inch SAS/SATA drives or SSDs
RAID RAID 0, 1, 5, 6, 10, 50, or 60
Supercapacitor for power failure protection
LOM Network Ports 2 flexible LOM cards, supporting up to 8 x GE electrical ports, 8 x 25 GE/10 GE optical ports, or 4 x GE electrical ports + 4 x 25 GE/10 GE optical ports
PCIe Expansion Up to 8 PCIe 4.0 x8, or 3 PCIe 4.0 x16 + 2 PCIe 4.0 x8 slots
Power Supply Units 2 x 1,500W or 2,000W hot-swappable AC PSUs, and supporting 1+1 redundancy
Power Supply 100V to 240V AC; 240V DC
Fan Modules 4 hot-swappable fan modules in N+1 redundancy
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF)
Dimensions (H x W x D) 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
