Bridge Cutting Machine For Granite Limestone Sandstone
Bridge Cutting Machine For Granite Limestone Sandstone
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCQJ-4016
Certification :
CE,ISO,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380V/50Hz
Weight :
2000KG
Use :
Granite,Marble,granite and marble
Condition :
New
Dimension(l*w*h) :
5800*4700*2700 mm
After-sales service provided :
Engineers available to service machinery overseas,Online support
Type :
Stone Cutting Machine,Bridge Style 5 Axis Waterjet Cutting Machine
Warranty :
One Year
Control system :
PLC SYSTEM
Product name :
stone cutting machine
Color :
customized
Application :
Stone Industrial
Name :
stone cutting machine
Blade diameter :
400-625mm
Function :
STONE CUTTING
Keyword :
Stone cutting machine,CNC Marble Cutting Machine
Description

Product Description

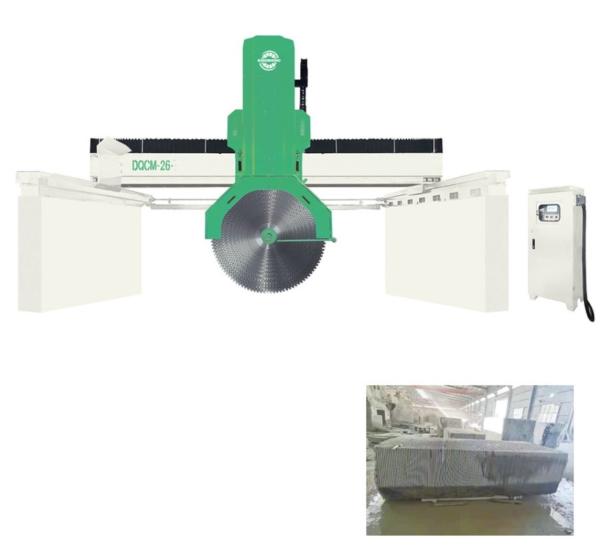

Bridge Cutting Machine For Granite Limestone Sandstone

DQCM Dual Drive Heavy Duty Block Cutting Machine, adopts our patented dual-drive mode (one pull and one push) for moving left and right, adjust the moving speed according to the material. Cooperating with the Dual V- track beam track makes its moving more stable. The lifting uses hydraulic with four guide post made of 200mm solid round steel chrome-plated. Forward and backward adopts screw drive and double nut drive, and cooperate with the oil-immersed sidebeam rail, which is more wear-resistant. It adopts longer and heavier casting beams so it can cut more stable. Main parts adopt imported materials. The stone blocks can be placed in the ground directly to save a worktable and its maintenance costs. Therefore the whole machine is featured as high cutting eficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite block.

Bridge Cutting Machine For Granite Limestone Sandstone

Technical Parameter

Parameter Unit DQCM-26-75-A DQCM-26-75-B DQCM-26-95-A DQCM-26-95-B
Blade diameter range mm φ1650-2500
Max processing length mm 3600-2700 3600-2700 5600-4700 5600-4700
Max processing width mm 2200 3300 2200 3300
Max lifting stroke mm 1150
Power of main motor kw 90(standard) / 110(customized)
Gross power kw 105(125) 105(125) 106(126) 106(126)
Outline dimension mm 8000x5400x3800 8000x6500x3800 10000x5400x3800 10000x6500x3800
Water consumption m³/h 25 25 25 25
Gross weight kg 22500 23500 25500 26500
Guide pole diameter mm 200
Shaft diameter mm 100
Crossbeam size mm 820x950x7500 820x950x7500 820x950x9500 820x950x9500
Sidebeam length mm 4500 5600 4500 5600
X Axis moving mode / Dual Reducer
Crossbeam rail / Dual V Rail
Y Axis slicing mode / Screw Lead and Dual Nut
