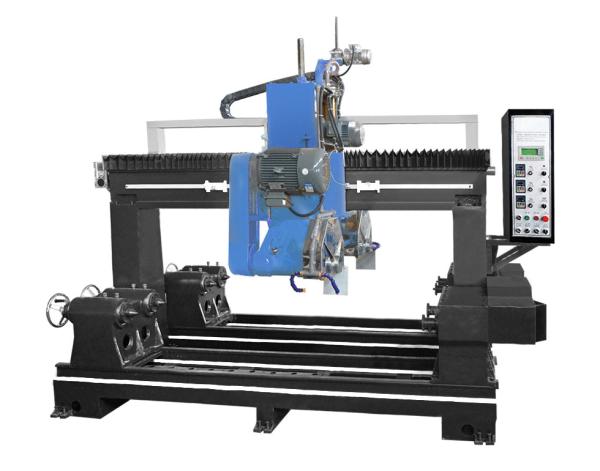

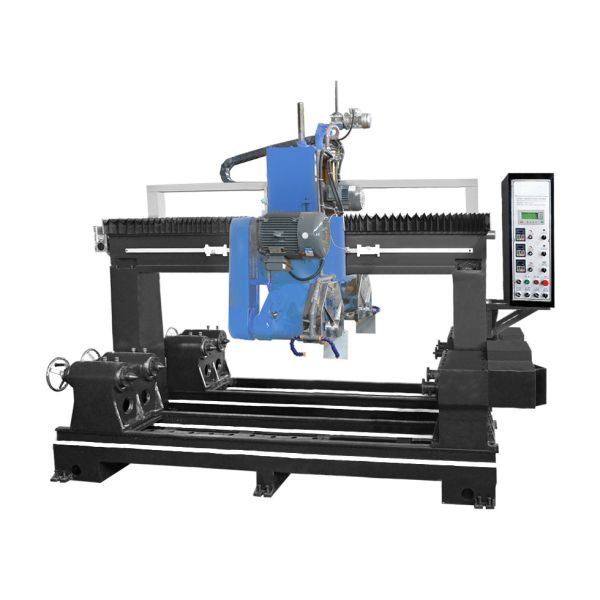

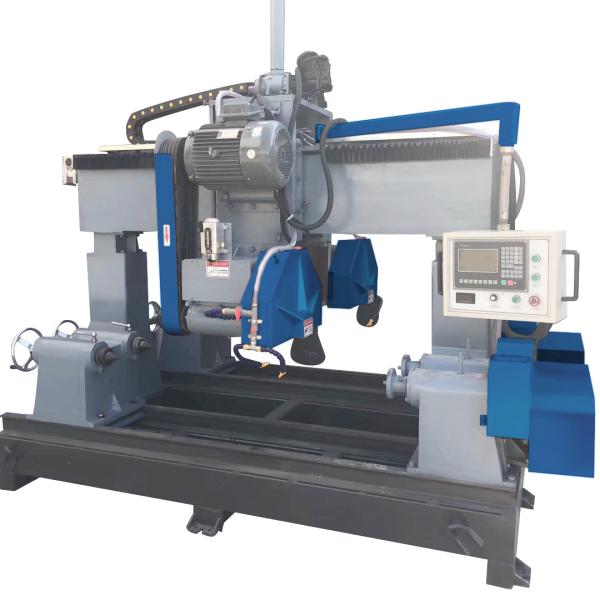

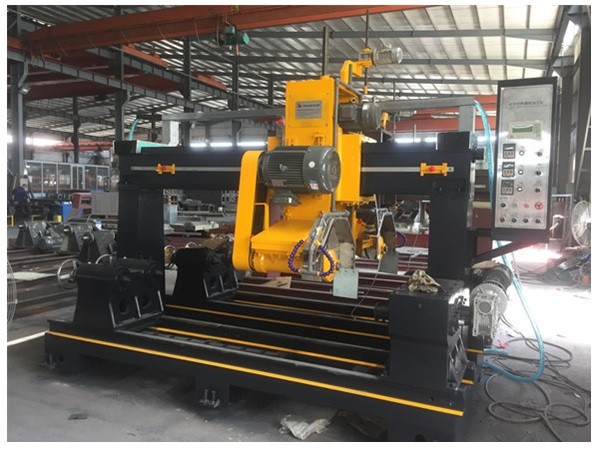

Stone Baluster Cutting Machine
Stone Baluster Cutting Machine
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MLGJ-600
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380/220/415V,3ph
Weight :
2000KG
Use :
granite and marble
Condition :
New
Dimension(l*w*h) :
2380x1200x2500mm
Type :
Stone Cutting Machine
Warranty :
One Year
Control system :
PLC SYSTEM
Product name :
Stone Baluster Cutting Machine
Color :
customized
Motor :
AC Servo System
Application :
Stone Industrial
Spindle :
5.5kw mechanical water cooled ATC type
Name :
stone cutting machine
Blade diameter :
350-600mm
Function :
STONE CUTTING
Keyword :
Stone cutting machine
Description


YFQ-290 bidrirectional cuts machine/YFQ700 bridge Bidirectional cuts machine /WLM-500 inventer grinder machine

It is adopts in gantry phone frame, microprocessor control and optical fiber monitor .
four blocks can be processed at one time.

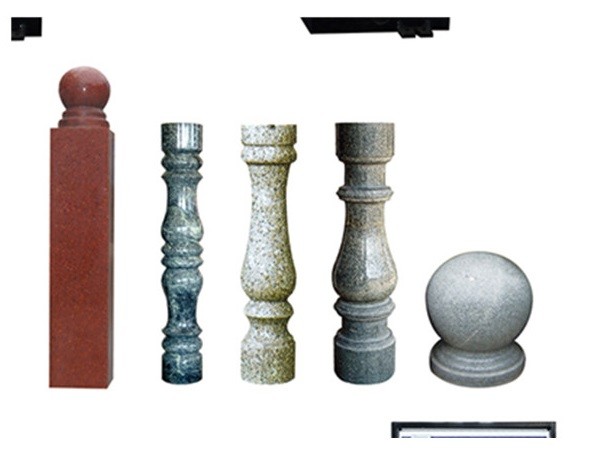

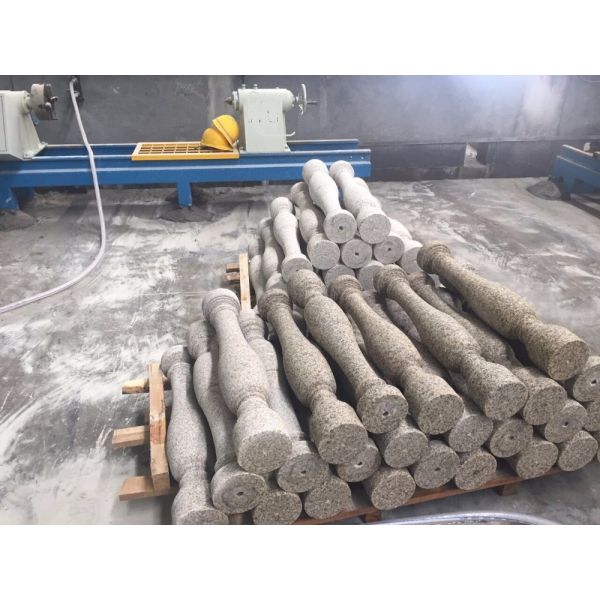

it can cut all kind of solid of revolutions such as systloidal baluster, pellet, stylobate, cap and column and so on.
as a automatic machine, it has already avoided the defects of manal process, one worker can operate many set of machines after adjusting the process parameter.

Technical parameter

Model YFQ290 YFQ700
max. cutting length 500-900mm 1400mm
max. cutting diameter 600x2pcs -290x4pcs 400mm
blade diameter 400-600mm 440-470mm
main motor power 11kw 11kw
water consumption 3m3/h 3m3/h
approximate weight 2500kgs 2500kgs
overall dimensions 3200x1225x2100mm 2380x1200x2500mm
