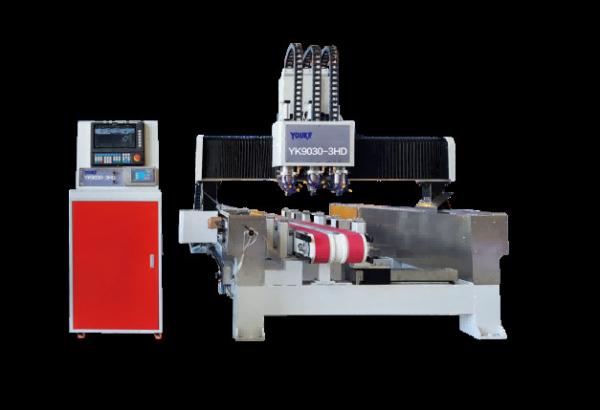

3 Process CNC Stone Center Quartz Marble CNC Machine OEM
3 Process CNC Stone Center Quartz Marble CNC Machine OEM
Specifications
Model Number :
YK9030-3HD
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Working Area :
480-880mm*2900mm
Spindle Motor :
7.5kw*2 Drilling motor:7.5kw Grinding motor:7.5kw*2
Spindle Rotation Speed :
Drilling:24000r/minGrinding:9000-24000r/min
Way of hold :
Cylinder clamping
Control System :
Countertop-specific customized model: Yamalong All-in-One
Driver :
1.5kw/1108S Server Motor
overall Size :
2700mm*3800mm*2500mm
feeding method :
Electric entry and exit
Weight :
2.9T
Description

Introduction


3 process machining center is mainly used to realize multi-process automatic processing. In the manufacturing industry, this equipment is widely used in woodworking, metal processing, plastic processing and other fields. It realizes automatic switching of multiple processing steps through one clamping, such as milling, drilling, cutting, etc., which greatly improves production efficiency and processing accuracy.


Functional Characteristic


★ Equipment system is the 3 processes of stone processing center autocratic model,used for granite,quartz stone,rock plate and other platform basin hole processing;It is the understage basin of engineering table,the first choice of basin processing in Taichung;

★ Electric belt conveyor feeding(manual roller feeding can be selected),template type size input,with circular,oval,square,polygon and other conventional processing graphic template,easy to learn the control;Special processing support G code input;

★ Automatic switching tool,high processing efficiency,strong stability;Main working principle:The first host machine --cutting holes;The second host --coarse casting chamfer;The third host -fine finish;

★ The main accessories are selected from the brand high speed servo,1:7 planetary reducer,fast speed,high precision,strong stability;

★ The machine selected thickened square tube welding,fuselage for heavy,X beam with increased gantry type,Y to track side mounted structure to ensure higher accuracy and durability.


Various parameters


Product name 3 process processing center YK9030-3HD
Working Area 480-880mm*2900mm
Spindle Motor 7.5kw*2 Drilling motor:7.5kw Grinding motor:7.5kw*2
Spindle Rotation Speed Drilling:24000r/minGrinding:9000-24000r/min
Way of hold Cylinder clamping
Control System Countertop-specific customized model: Yamalong All-in-One
Driver 1.5kw/1108S Server Motor
overall Size 2700mm*3800mm*2500mm
feeding method Electric entry and exit
Weight 2.9T
