Specifications
Brand Name :
Stertek
Model Number :
STV-HD75
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
448USD-3000USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
15 working days
Packaging Details :
Standard Export Wooden Case
Door Structure :
Handwheel door
Number of Baskets :
2 pcs sterilizing baskets
Display :
LCD display
Data Recording :
Printer is Optional
Capacity :
75 Liters
Drying Function :
Optional Drying System
Machine Size :
550*530*1180mm
Net Weight :
97kg
Max Working Temp. :
138℃
Working Press. :
0.25Mpa
Description

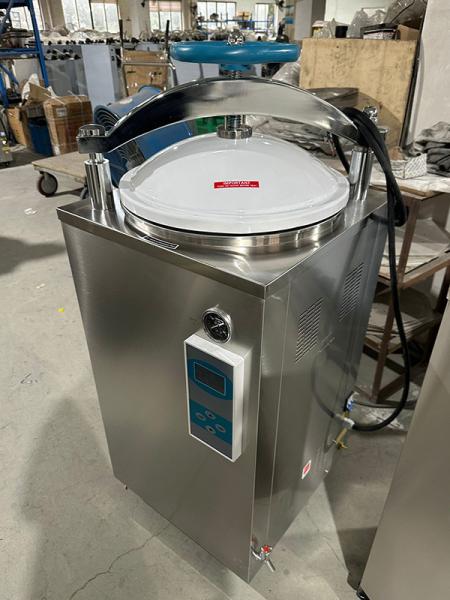

75L Touch Type Key Safety Protection Stainless Steel Vertical Autoclave

This Stainless Steel Vertical Autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

MODEL

STV-HD35

STV-HD50

STV-HD75

STV-HD100

Chamber volume

35L

50L

75L

100L

318 x 450mm

340 x 550mm

400 x 600mm

440 x 650mm

Max. working temperature

138

Max. working pressure

0.25Mpa

Heat average

≤±1℃

Timer range

0~99min or 0~99hour59min

Power

2.5Kw/AC220V.50Hz

3Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

470x450x1020

520 x 490 x 1150

550x530x1180

580 x 560 x 1290

Transport dimension

540x540x1160

580 x 580 x 1280

610 x 610 x 1320

640 x 640 x 1400

G.W/N.W

84Kg/65Kg

97Kg/78Kg

115Kg/97Kg

135Kg/109Kg


Product Details

75L Touch Type Key Safety Protection Stainless Steel Vertical Autoclave

Product Features:

1. Fully stainless steel SUS304 structure, stainless steel chamber SUS304.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. Microprocessor control, LCD display of working status: pressure, time, temperature, error code, touch type key.
5. Auto discharge the cool air, and steam discharging automatically after sterilizing.
6. Over temperature and over pressure auto-protection.
7. Safe protection of water is lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. With two stainless steel baskets.
11. Drying function is optional

Safety Device:

1. Safe protection of water lacking
2. The program will be stopped if water level lower than the low limit.
3. The buzzer alarms when a cycle of operation is completed.
4. Over temperature&over pressure auto-protection.
5. Over current protector.
6. Door safety interlock system.
7. Safety valve of auto release against over-pressure.
8. Over current protection.

Application:

Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
75L Touch Type Key Safety Protection Stainless Steel Vertical Autoclave

Our Factory

75L Touch Type Key Safety Protection Stainless Steel Vertical Autoclave

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer? Is global support available?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the products?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
